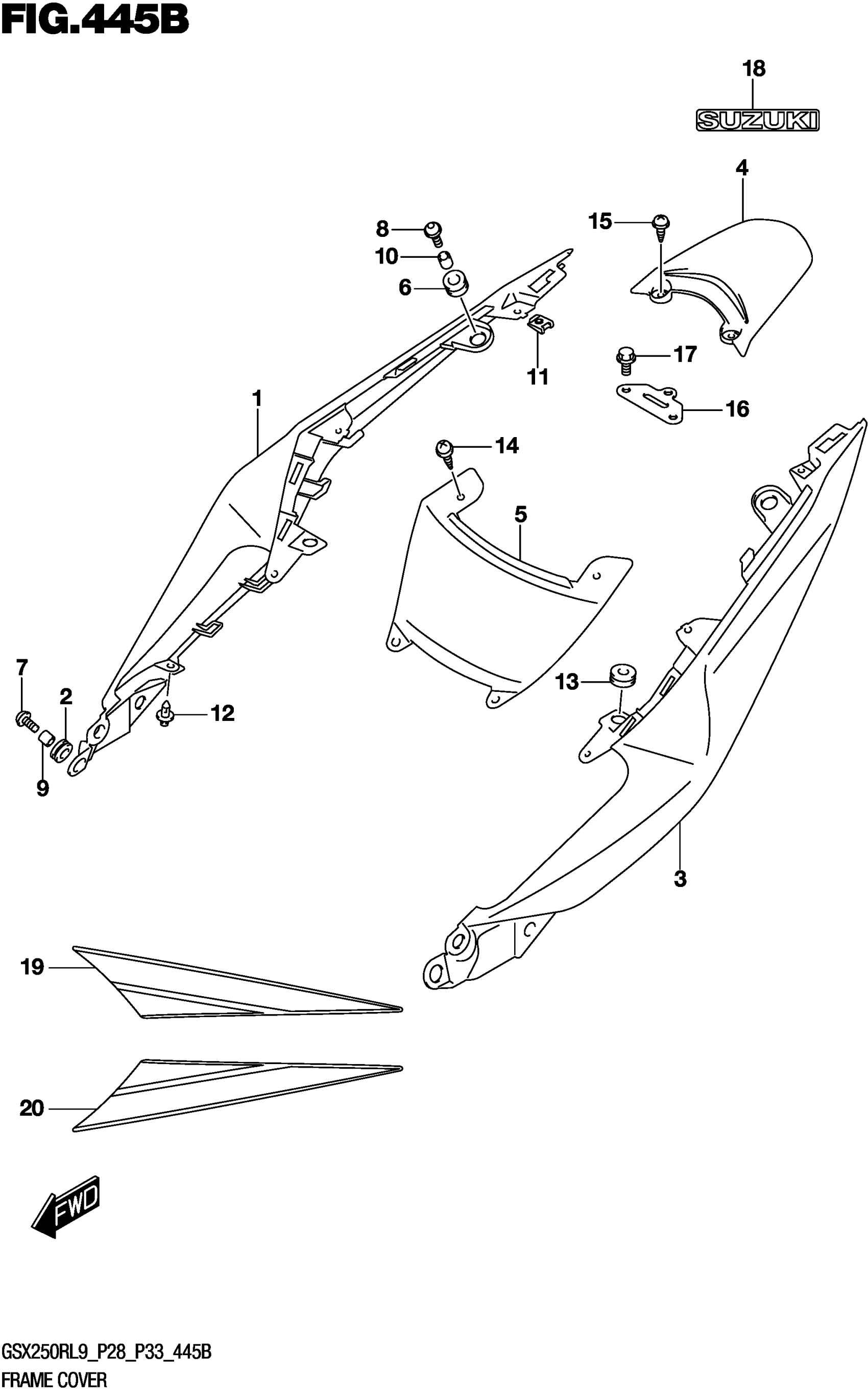

Suzuki GSX250RL9 (2019) FRAME COVER (GSX250RL9 P28) (FOR 4CX,AY4,BEE) Diagram

#

Description
Price

1-1

COVER, FRAME RH (WHITE) | FOR BEE

47111-20K01-QHW

$83.33

1-2

COVER, FRAME RH (BLACK) | FOR 4CX,AY4

47111-20K01-YAY

$101.77

2

CUSHION,FRAME COVER This part replaces 47161-48H00.

47161-48H10

$1.78

3-1

COVER, FRAME LH (WHITE) | FOR BEE

47211-20K01-QHW

$98.02

3-2

COVER, FRAME LH (BLACK) | FOR 4CX,AY4

47211-20K01-YAY

$99.90

4

COVER,FRAME CENTER

47311-20K00

$15.08

5

COVER,FRAME CENTER FRONT

47312-20K01

Unavailable

6

.CUSHION,FRAME COVER,R This part replaces 47321-20K00.

47321-20K01

$2.58

7

SCREW,FRAME COVER FR

47331-20K00

$2.37

8

SCREW,FRAME COVER FR

47331-20K00

$2.37

9

SPACER,FRAME COVER FR

47332-20K00

$2.42

10

SPACER,FRAME COVER FR

47332-20K00

$2.42

11

NUT

47399-48H00

$2.38

12

CLIP

48292-32GH0

$2.58

13

CUSHION (8x26x7)

09320-08018

$3.04

14

SCREW

03541-0512A

$1.49

15

SCREW

03541-0512B

$1.78

16

BRACKET,FRAME COVER CTR

47810-20K00

$8.30

17

BOLT

01550-0612B

$2.39

18

.EMBLEM,SUZUKI (SILVER) This part replaces 68181-45H00-YD8.

68181-45H10-YD8

$2.17

19-1

TAPE, FRAME COVER, RH | FOR 4CX

68132-20K00-BFL

$6.42

19-2

TAPE, FRAME COVER, RH | FOR BEE

68132-20K00-BFM

$6.42

19-3

TAPE, FRAME COVER, RH | FOR AY4

68132-20K00-BFN

$6.42

20-1

TAPE, FRAME COVER, LH | FOR 4CX

68142-20K00-BFL

$6.42

20-2

TAPE, FRAME COVER, LH | FOR BEE

68142-20K00-BFM

$6.42

20-3

TAPE, FRAME COVER, LH | FOR AY4

68142-20K00-BFN

$6.42
