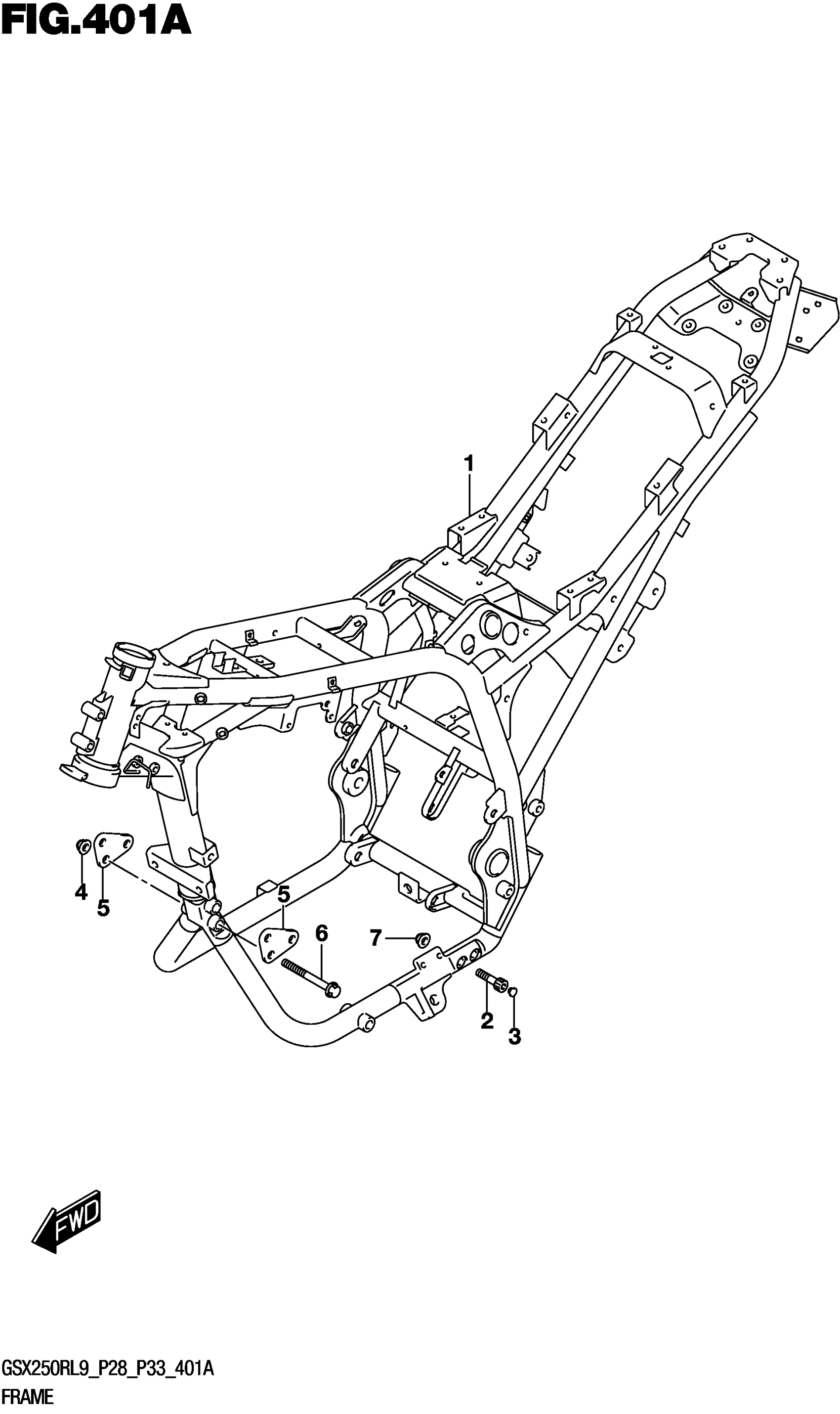

Suzuki GSX250RL9 (2019) FRAME Diagram

#

Description

Price

1

FRAME

41100-20K01

$1,242.72

2

BOLT (10X37)

09106-10068

$3.50

3

CAP,FRAME LOWER TUBE (OD:12)

41498-48H00

Unavailable

4

NUT

08319-3110B

$3.87

5

BRACKT, ENGINE MOUNTING FRONT

41942-48H00

Unavailable

6

BOLT (10X85)

09103-10445

$5.58

7

NUT

08319-3110B

$3.87
