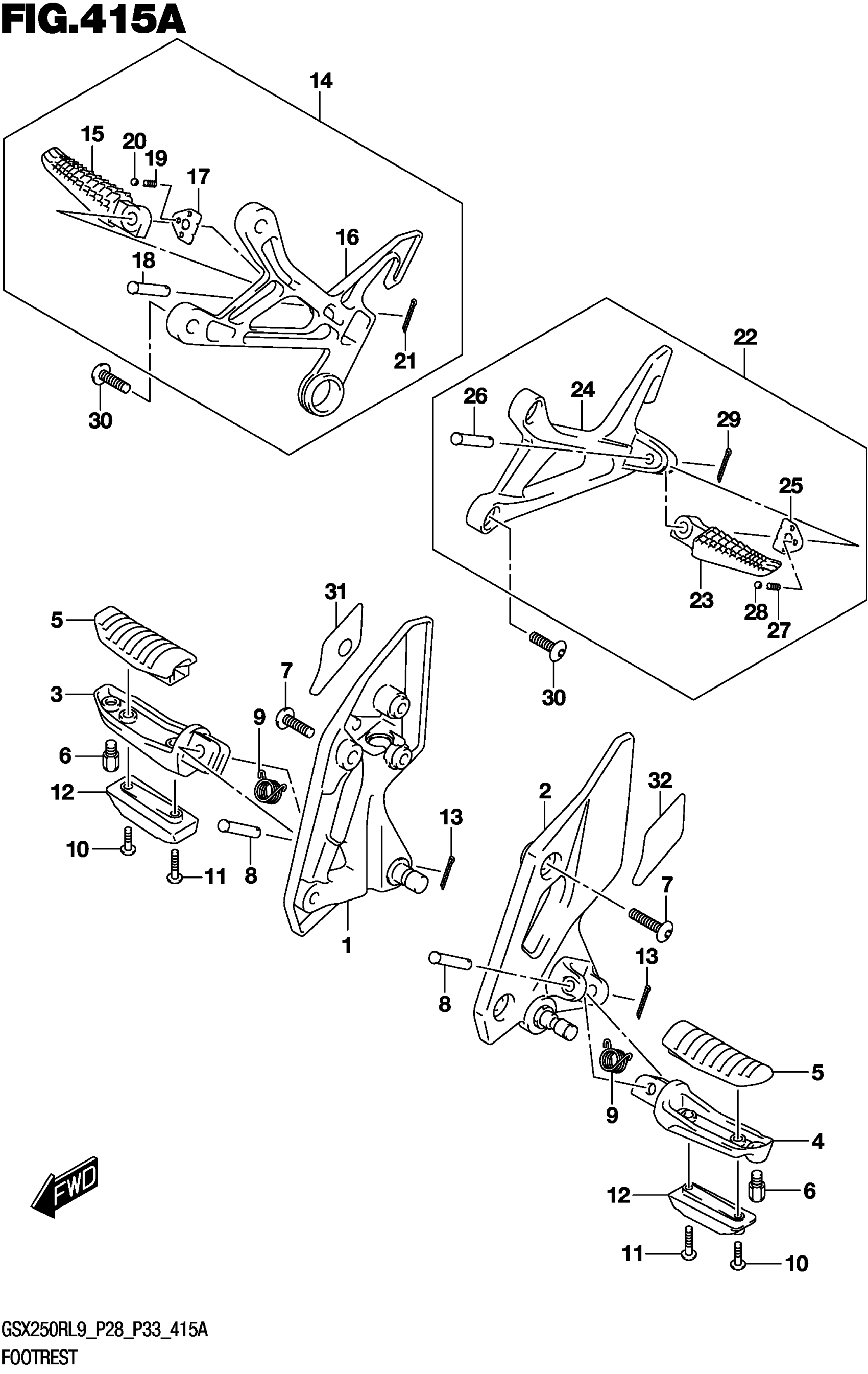

Find the part on the Footrest diagram for your 2019 Suzuki GSX250RL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki GSX250RL9 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,FOOTREST RH This part replaces 43510-20K00.

43510-20K01

1
Out of stock

2

BRACKET,FOOTREST LH

43521-20K00

1
Out of stock

3

BAR,FR FOOTREST,R

43511-44G10

1
Out of stock

4

BAR,FR FOOTREST,L

43521-44G10

1
Out of stock

5

RUBBER, FOOTREST

43550-44G10

2
Out of stock

6

BOLT,BANK SENSOR

43576-48H00

2

$3.35

In stock

7

BOLT,FOOTREST BRACKET

43512-20K00

4
Out of stock

8

PIN,FRONT FOOTREST

43529-34J00

2
Out of stock

9

SPRING

09448-16033

2
Out of stock

10

SCREW

02142-0525A

2
Out of stock

11

SCREW

02142-0530A

2
Out of stock

12

BALANCER,FR FOOTREST

43536-44G00

2
Out of stock

13

PIN

04111-2515A

2
Out of stock

15

1

$43.15

In stock

16

1

$142.62

In stock

17

PLATE,PILLION FOOTREST

43816-01H10

1
Out of stock

18

.PIN

09200-08067

1
Out of stock

19

SPRING

09440-05003

1
Out of stock

20

BALL

06111-07004

1
Out of stock

21

PIN

04111-2515A

1
Out of stock

22

FOOTREST ASSY, PILLION LH This part replaces 43700-20K10.

43700-20K00

1
Out of stock

23

1

$43.15

In stock

24

1

$142.62

In stock

25

PLATE,PILLION FOOTREST

43816-01H10

1
Out of stock

26

.PIN

09200-08067

1
Out of stock

27

SPRING

09440-05003

1
Out of stock

28

BALL

06111-07004

1
Out of stock

29

PIN

04111-2515A

1
Out of stock

30

BOLT (8X23)

09106-08150

4
Out of stock

31

TAPE, FR FOOTREST RH

43571-20K00

1

$15.35

In stock

32

TAPE, FR FOOTREST LH

43572-20K00

1

$15.35

In stock
