Description

Price

1

HEAD ASSY, CYLINDER

11100-48H50

$505.40

2

BOLT (6X60)

09103-06220

$2.47

3

.PIN (8X11)

09206-08011

Unavailable

4

.GASKET,CYLINDER HEAD

11141-48H00

$36.05

5

BOLT (8X165)

09103-08449

$7.67

6

GASKET (5.8X13X1.8)

09168-06L04

Unavailable

7

GASKET (8.5X17X2.3)

09168-08032

$2.45

8

BOLT

01550-0612A

$1.97

9

PIN

04211-11129

$1.76

10

COVER,CYLINDER HEAD

11171-48H51

$103.75

11

.GASKET,CYL HEAD COVER

11173-48H00

$15.43

12

.WASHER,CYL HEAD COVER

11191-27E60

$2.22

13

BOLT (7X57)

09106-07022

$9.10

14

PIN

04211-11129

$1.76

15-1

PLUG,SPARK (CPR7EA-9) | NGK

09482-00621

$9.50

15-2

PLUG,SPARK (U22EPR9) | DENSO

09482-00627

$13.17

16

PIPE,INTAKE This part replaces 13110-48H00.

13110-48H01

$11.42

17

CLAMP,INTAKE PIPE

13170-48H00

$5.30

18

O-RING (D:2.3,ID:29.7)

09280-30L01

$3.72

19

SCREW

02122-0616A

$1.49

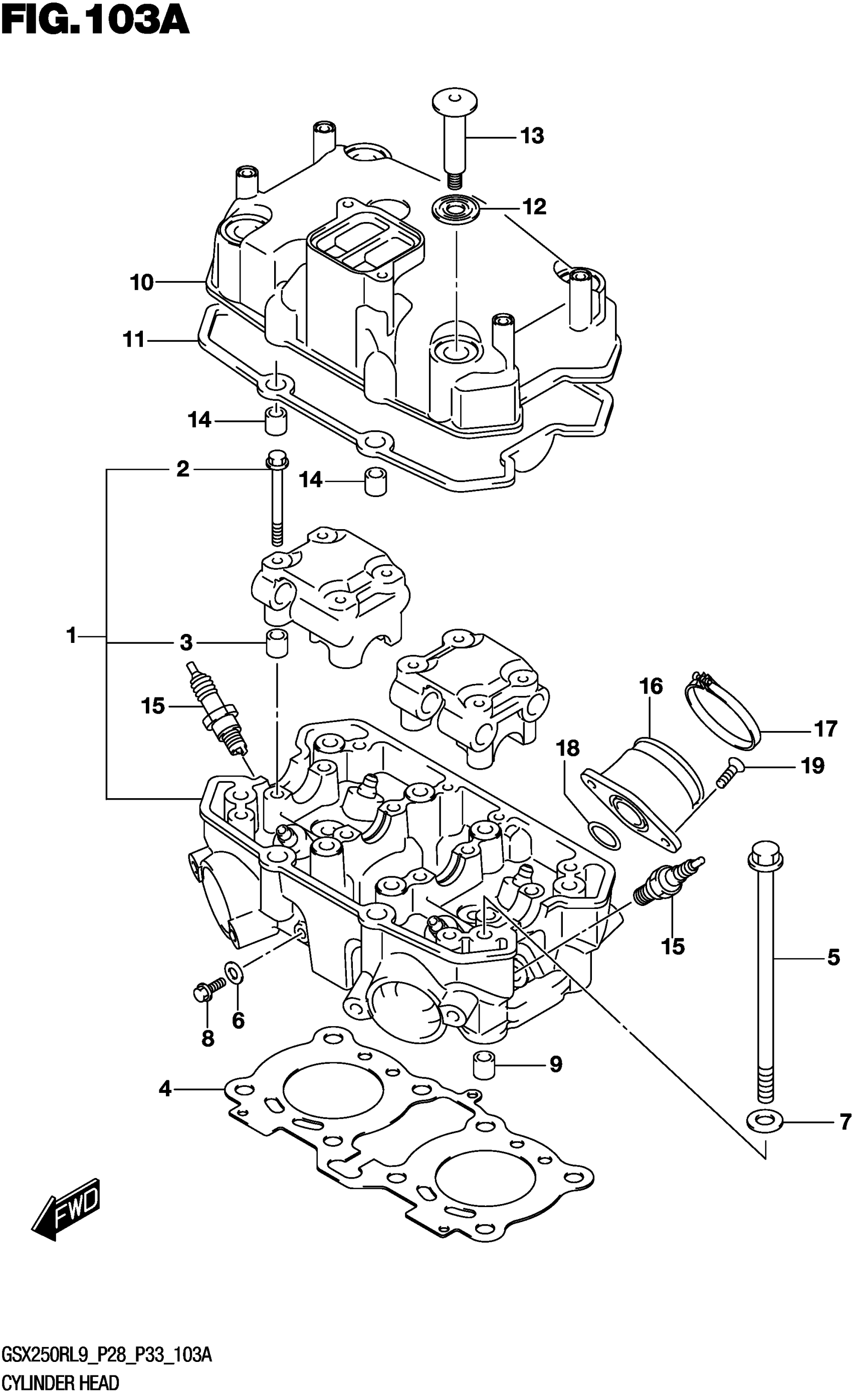

Suzuki GSX250RL9 (2019) CYLINDER HEAD Diagram
