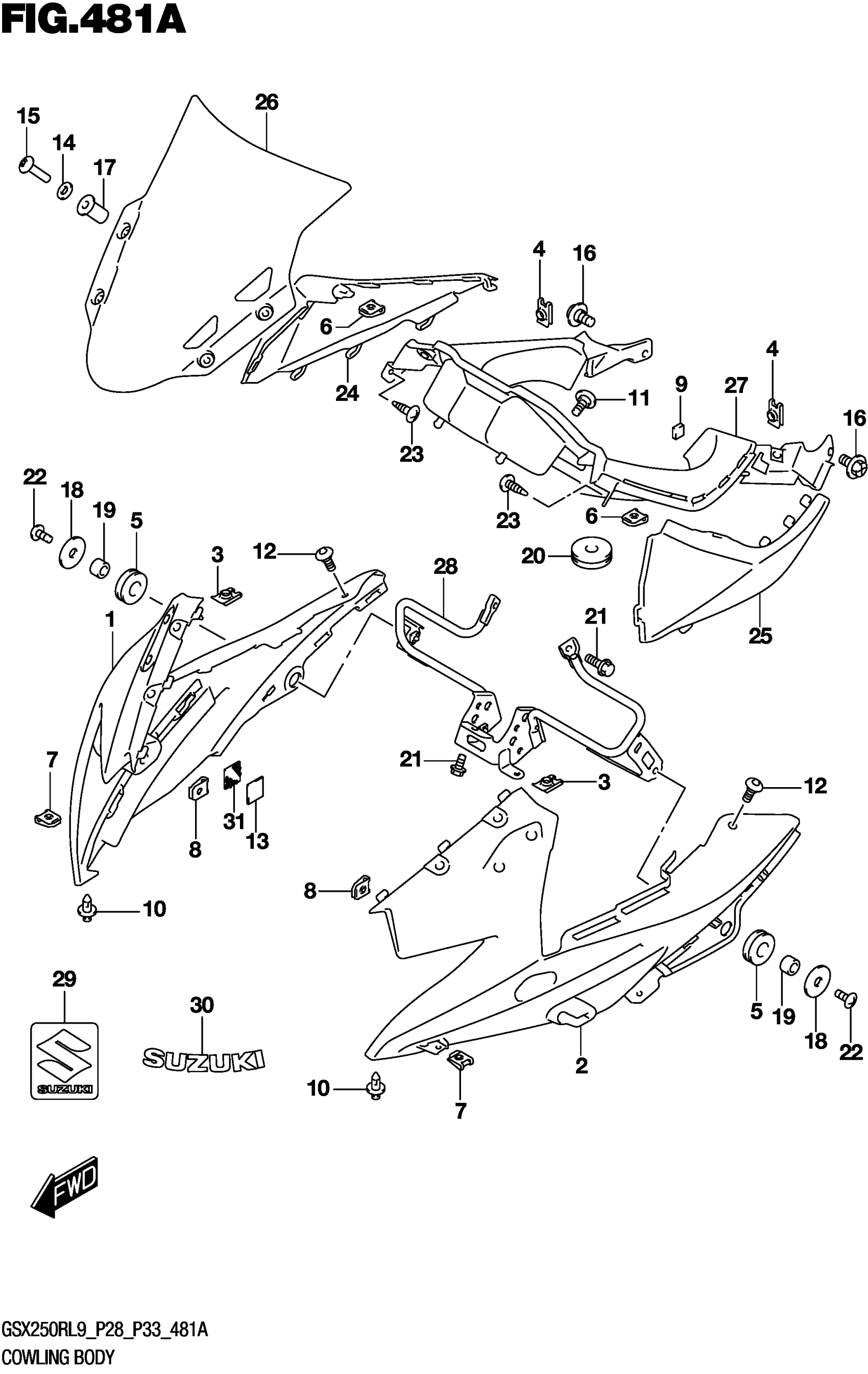

Suzuki GSX250RL9 (2019) COWLING BODY Diagram

#

Description
Price

1-1

COWLING, BODY RH (RED) | FOR AY4

94411-20K00-PDD

$167.48

1-2

COWLING, BODY RH (WHITE) | FOR QHW

94411-20K00-QHW

$109.33

1-3

COWLING, BODY RH (BLUE) | FOR BEE

94411-20K00-W6B

$150.78

1-4

COWLING,BODY,R (BLACK) | FOR YAY,4CX

94411-20K00-YAY

$94.69

2-1

COWLING, BODY LH (RED) | FOR AY4

94421-20K00-PDD

$167.48

2-2

COWLING, BODY LH (WHITE) | FOR QHW

94421-20K00-QHW

$107.28

2-3

COWLING, BODY LH (BLUE) | FOR BEE

94421-20K00-W6B

$128.17

2-4

COWLING,BODY,L (BLACK) | FOR YAY,4CX

94421-20K00-YAY

$109.33

3

NUT,HEADLAMP

35155-48H00

$2.93

4

NUT,HEADLAMP

35155-48H00

$2.93

5

CUSHION,FRAME COVER This part replaces 47161-48H00.

47161-48H10

$1.78

6

NUT

47399-48H00

$2.38

7

NUT

47399-48H00

$2.38

8

NUT

47399-48H00

$2.38

9

CUSHION,FRAME SIDE FRONT

47814-20K00

$3.08

10

CLIP

48292-32GH0

$2.58

11

SCREW (5X13)

94492-20K00

$2.37

12

SCREW (5X13)

94492-20K00

$2.37

13

FASTENER, HEADLAMP

94491-20K00

Unavailable

14

WASHER,WINDSCREEN

94613-20K00

$1.58

15

SCREW,WINDSCREEN

94615-20K00

$1.84

16

BOLT (6X12)

09111-06107

$2.60

17

NUT (M5)

09159-05019

$7.14

18

WASHER (6.5X20X1.2)

09160-06077

$1.91

19

SPACER (6.5X10X7)

09180-06283

$1.91

20

CUSHION (8x26x7)

09320-08018

$3.04

21

BOLT

01550-0616A

$1.97

22

SCREW

02142-0620A

$1.49

23

SCREW

03541-0512A

$1.49

24

COVER,BODY COWL,R

94412-20K00

$9.35

25

COVER,BODY COWL,L

94422-20K00

$9.57

26

WINDSCREEN

94611-20K10

$429.78

27

PANEL,METER

94641-20K00

$36.83

28

BRACE,FRAME SIDE COVER

94520-20K00

$55.82

29

EMBLEM,S

68281-20K00

$5.98

30

EMBLEM,SUZUKI (SILVER)

68861-20E70-YD8

$2.77

31

FASTENER,BODY COWLING

94493-20K00

$5.33

32

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | COLOR :

SPECIAL NOTE

Unavailable

32

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | AY4=YAY(BLACK),PDD(RED)

SPECIAL NOTE

Unavailable

32

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | BEE=QHW(WHITE),W6B(BLUE)

SPECIAL NOTE

Unavailable
