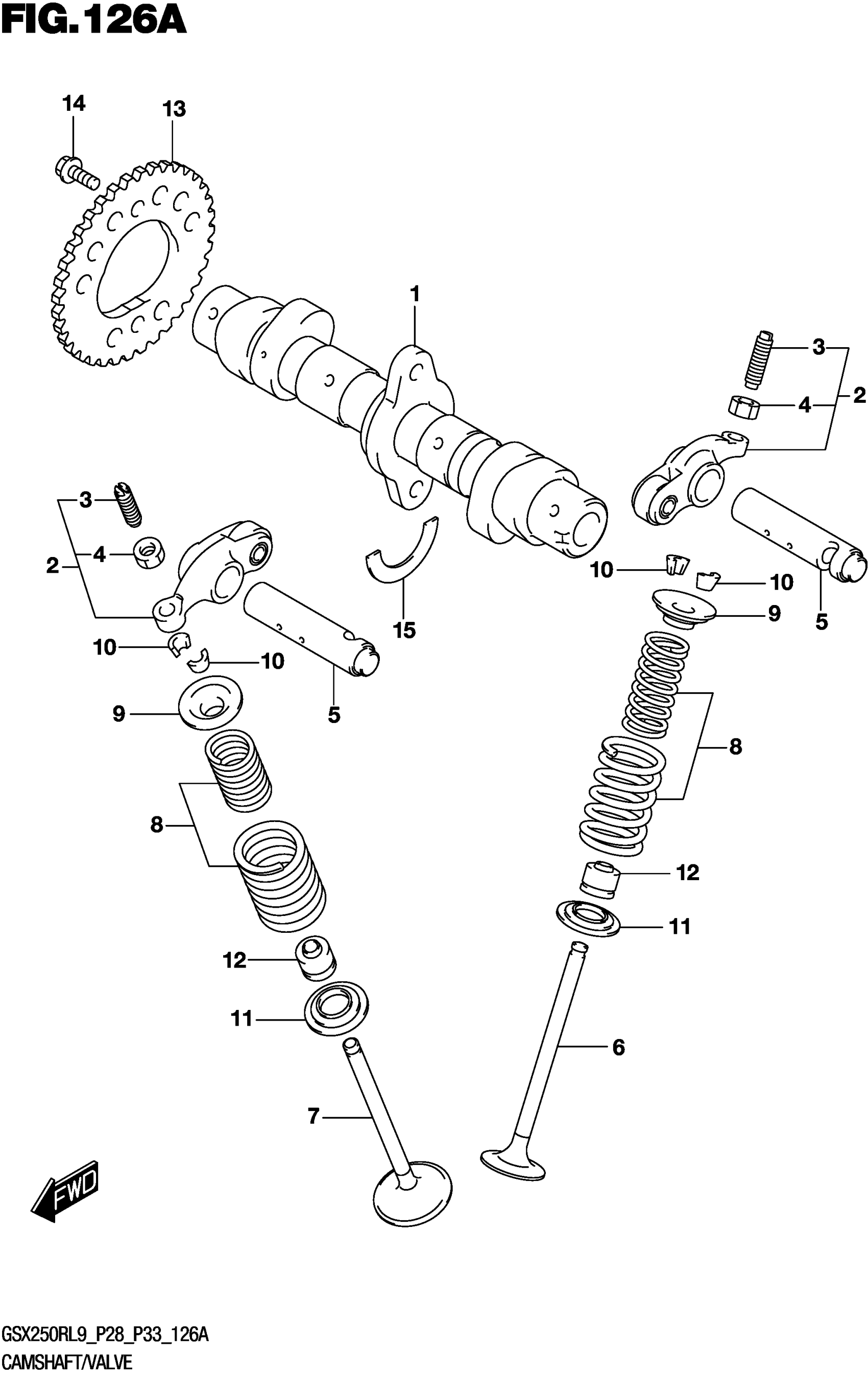

Suzuki GSX250RL9 (2019) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-20K00

$199.10

2

ARM, VALVE ROCKER

12840-20K00

$74.60

3

.SCREW, TAPPET ADJUSTING

12842-49220

Unavailable

4

.NUT, TAPPET ADJUSTING

12843-27A10

Unavailable

5

SHAFT,VALVE ROCKER ARM

12861-48H00

$8.70

6

VALVE,INTAKE

12911-20K00

$16.92

7

VALVE,EXHAUST

12912-20H20

$20.48

8

SPRING SET,VALVE

12920-48H10

$11.78

9

RETAINER,VALVE SPRING

12931-27A30

Unavailable

10

COTTER,VALVE

12932-36H00

$1.49

11

SEAT,VALVE SPRING

12933-81410

Unavailable

12

SEAL,OIL (5X10X8.7)

09289-05L02

$9.22

13

SPROCKET,CAMSHAFT (NT:38)

12741-48H00

$13.65

14

BOLT (6X12.5)

09111-06027

$1.72

15

C-RING

09390-22002

$2.27
