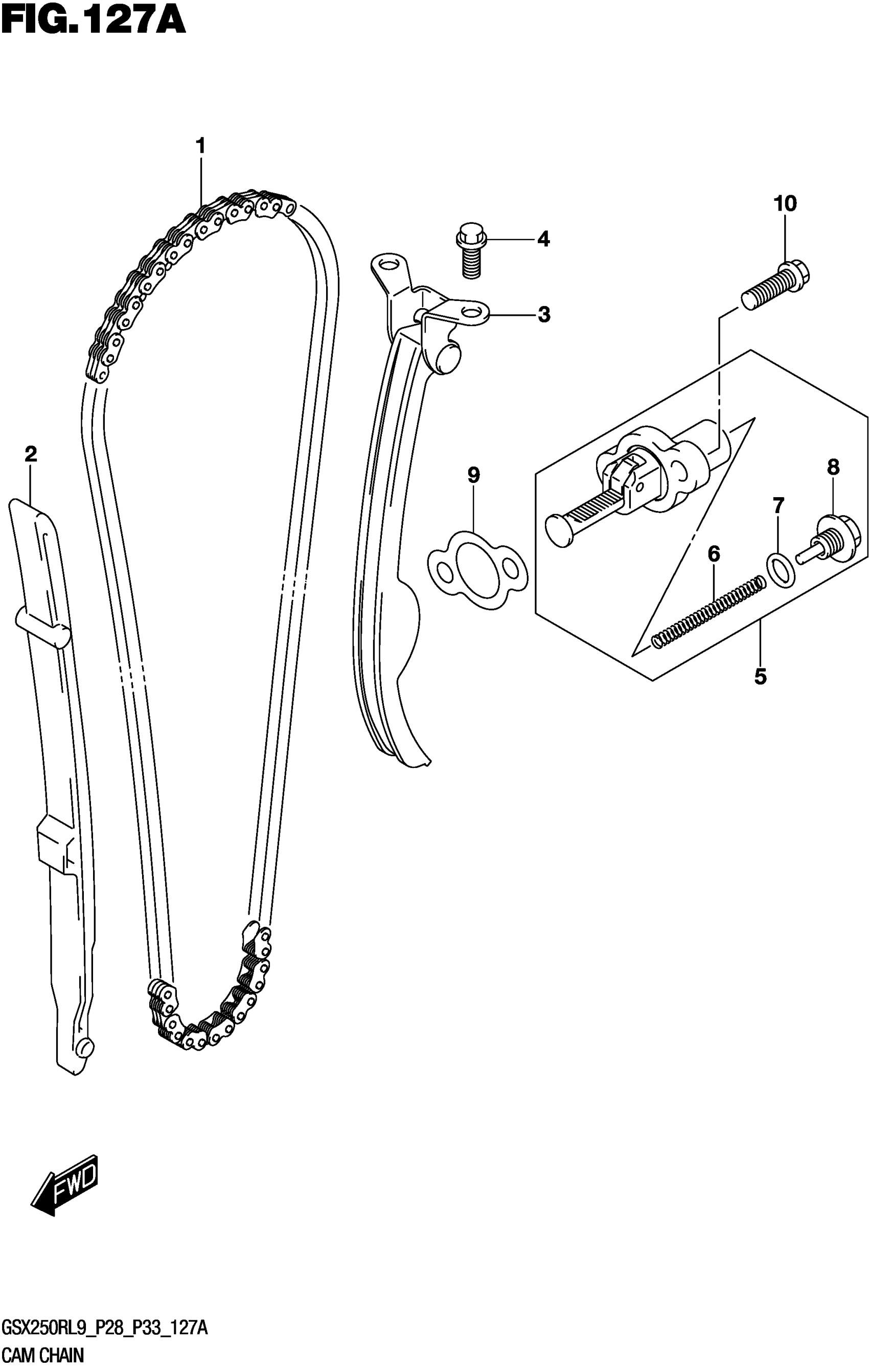

Suzuki GSX250RL9 (2019) CAM CHAIN Diagram

#

Description
Price

1-1

CHAIN,CAMSHAFT DRIVE | BORGWARNER MORSE TEC

12760-48H10

$102.17

1-2

CHAIN,CAMSHAFT DRIVE | DAIDO CHAIN

12760-48H30

$73.97

2

GUIDE,CAM CHAIN

12771-20K00

$7.75

3

TENSIONER, CAM CHAIN

12810-48H00

Unavailable

4

BOLT

01547-0612A

$2.03

5

ADJUSTER ASSY,TENSIONER

12830-02A10

$22.33

6

.SPRING

12836-02A10

Unavailable

7

.O-RING (D:1.9,ID:5.7)

12837-02A10

Unavailable

8

.PLUG,ADJUSTER

12838-02A10

Unavailable

9

.GASKET,TENSIONER ADJUSTER (N

12837-48H00

$3.73

10

BOLT

01547-0620A

$2.03
