2018 Suzuki GSX250RL8 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2018 Suzuki GSX250RL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

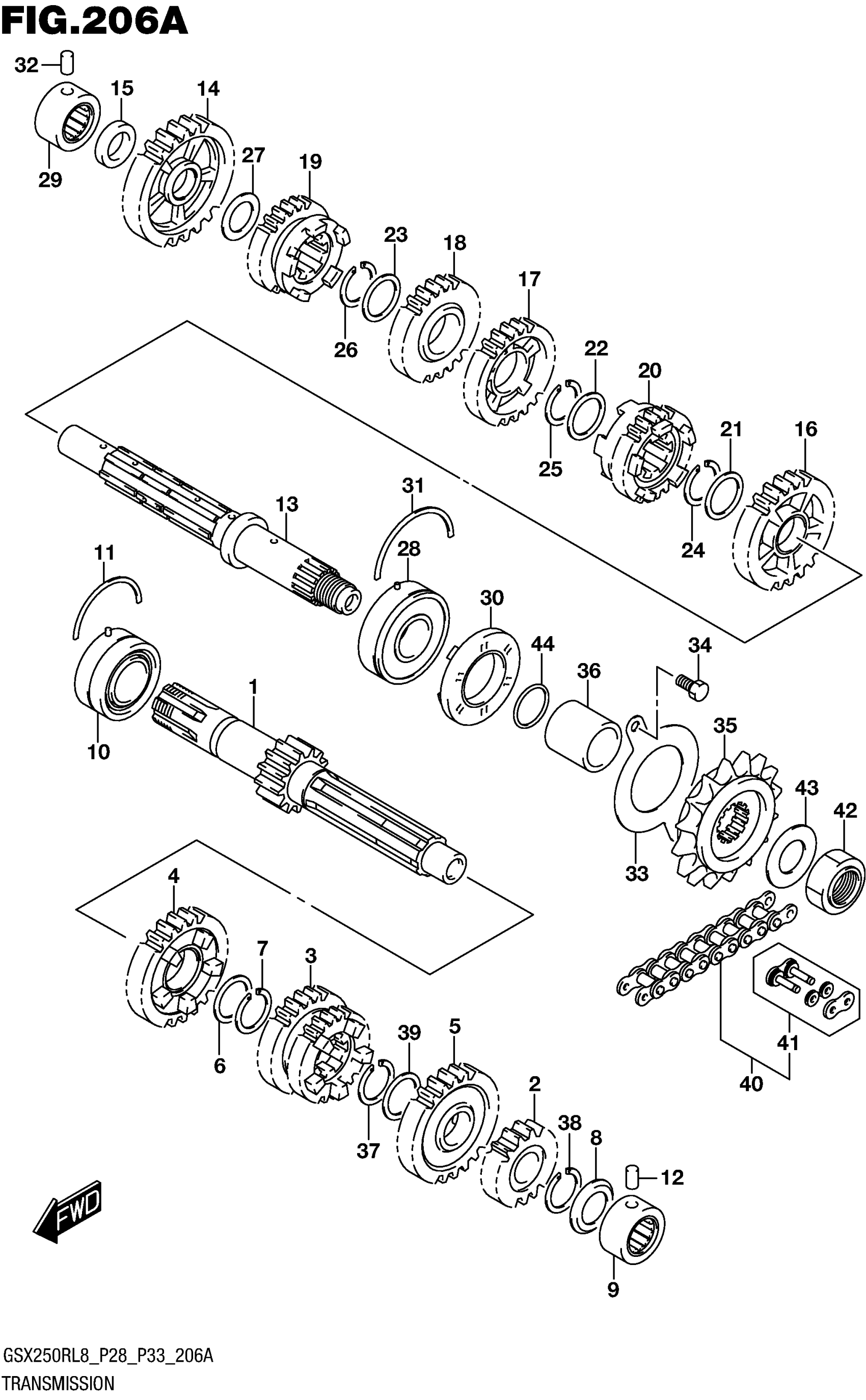

2018 Suzuki GSX250RL8 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,COUNTER (NT:12)

24120-20K00

1
Out of stock

2

GEAR,2ND DRIVE (NT:17)

24221-20K00

1
Out of stock

3

GEAR, 3RD & 4TH DRIVE

24231-48H00

1
Out of stock

3

(NT:10/11)

24231-48H00

1
Out of stock

4

GEAR,5TH DRIVE (NT:22)

24251-48H00

1
Out of stock

5

GEAR,6TH DRIVE (NT:26)

24261-20K00

1
Out of stock

6

SHIM (22X28X1)

09181-22017

1
Out of stock

7

CIRCLIP

09380-22016

1
Out of stock

8

SEAL,COUNTER SHAFT,L BEARING

24271-48H00

1
Out of stock

9

BEARING (17X30X16)

09263-17050

1
Out of stock

10

BEARING (22X47X20.6)

09267-22001

1
Out of stock

11

C RING

09390-47008

1
Out of stock

12

PIN

04221-06129

1

$1.87

In stock

13

SHAFT,DRIVE

24130-48H00

1
Out of stock

14

GEAR,1ST DRIVEN (NT:29)

24310-48H00

1
Out of stock

15

SPACER,1ST DRIVEN GEAR

24313-48H00

1
Out of stock

16

GEAR,2ND DRIVEN (NT:26)

24320-48H00

1
Out of stock

17

GEAR,3RD DRIVEN (NT:26)

24331-48H00

1
Out of stock

18

GEAR,4TH DRIVEN (NT:24)

24341-48H00

1
Out of stock

19

GEAR,5TH DRIVEN (NT:20)

24351-48H00

1
Out of stock

20

GEAR,6TH DRIVEN (NT:21)

24361-48H00

1
Out of stock

21

SHIM (22X28X1)

09181-22017

1
Out of stock

22

SHIM (22X28X1)

09181-22017

1
Out of stock

23

SHIM (22X28X1)

09181-22017

1
Out of stock

24

CIRCLIP

09380-22016

1
Out of stock

25

CIRCLIP

09380-22016

1
Out of stock

26

CIRCLIP

09380-22016

1
Out of stock

27

WASHER (17X26X1) This part replaces 08211-17262.

09181-17167

1
Out of stock

28

BEARING (22X56X16)

09262-22039

1
Out of stock

29

BEARING (17X30X16)

09263-17050

1
Out of stock

30

SEAL,OIL (30X56X9.5)

09283-30L01

1
Out of stock

31

C RING

09390-56002

1
Out of stock

32

PIN

04221-06129

1

$1.87

In stock

33

RETAINER, DRIVE SHAFT OIL SEA

24741-48H00

1
Out of stock

34

BOLT

01500-0612A

2
Out of stock

35

SPROCKET,ENGINE (NT:14) This part replaces 27510-48H10.

27510-48H20

1
Out of stock

36

SPACER,ENGINE SPROCKET This part replaces 27531-48H00.

27531-48H01

1
Out of stock

37

CIRCLIP

09380-22016

1
Out of stock

38

CIRCLIP

09380-22016

1
Out of stock

39

SHIM (22X28X1)

09181-22017

1
Out of stock

40

CHAIN,DRIVE (RK 520KL02) This part replaces 27600-48H20-116.

27600-48H40-116

1
Out of stock

41

JOINT SET,CHAIN (RK) This part replaces 27620-48H20.

27620-48H40

1
Out of stock

42

NUT,ENGINE SPROCKET

27521-48H00

1
Out of stock

43

WASHER, ENGINE SPROCKET

27513-48H00

1
Out of stock

44

O RING (D:2.5,ID:21)

09280-21008

1
Out of stock
