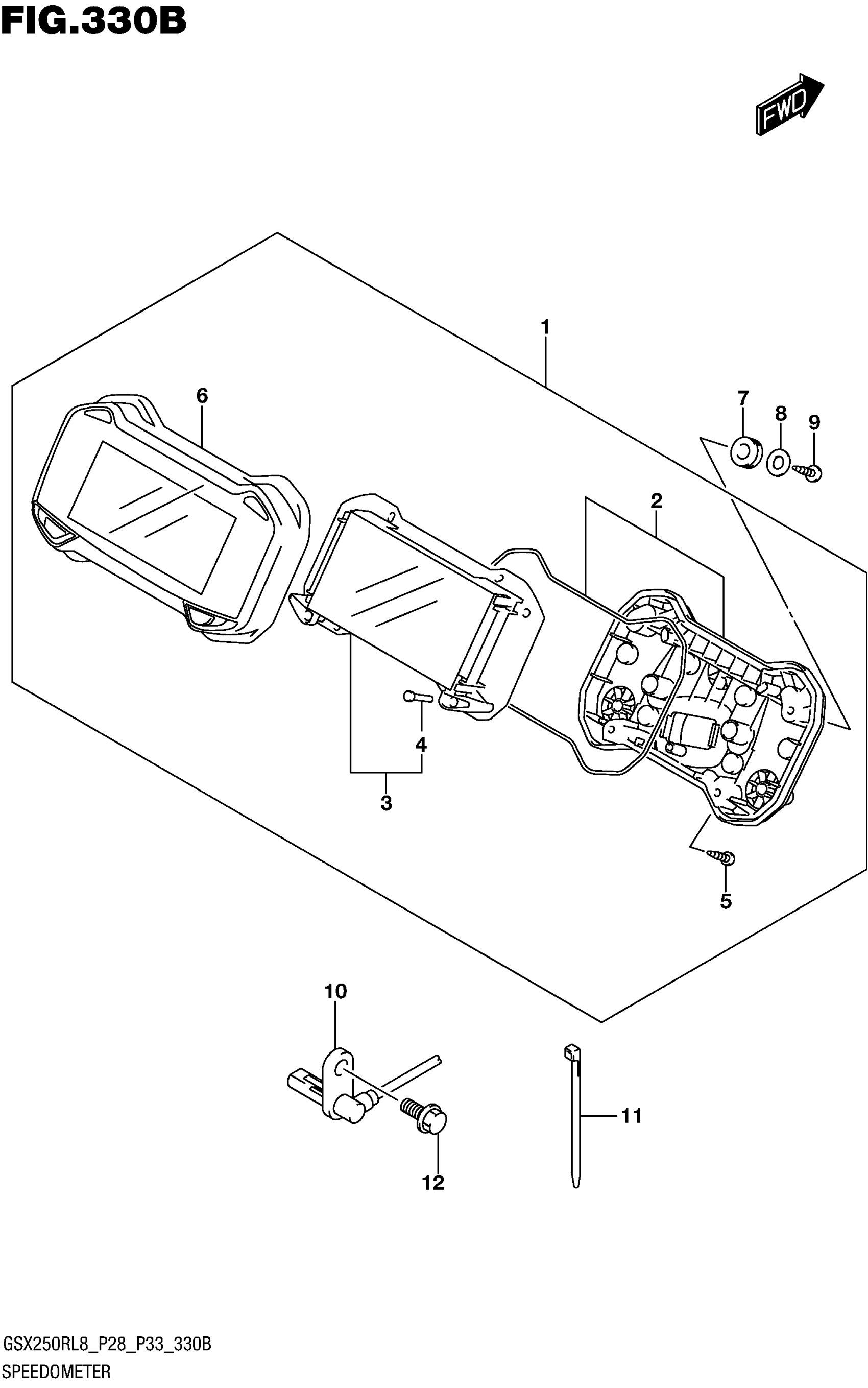

Suzuki GSX250RL8 (2018) SPEEDOMETER (GW250RL8 P33) Diagram

#

Description
Price

1

SPEEDOMETER ASSY

34100-20K30

$678.22

2

.LOWER CASE

34111-20K00

$501.20

3

.SPEEDOMETER

34120-20K30

$543.50

4

..KEY TOP

34124-20K00

$9.63

5

.SCREW

34383-10B00

Unavailable

6

.UPPER CASE

34150-20K00

$92.62

7

CUSHION,SPEEDOMETER

34189-30H30

$4.33

8

WASHER (4.5X16X1.2)

09160-04026

$2.05

9

SCREW

03541-0416A

$1.49

10

SENSOR,RR WHEEL SPEED

65710-20K00

$109.33

11

CLAMP (L:145)

09407-14407

$3.57

12

BOLT (8X16)

01550-0816A

$2.32
