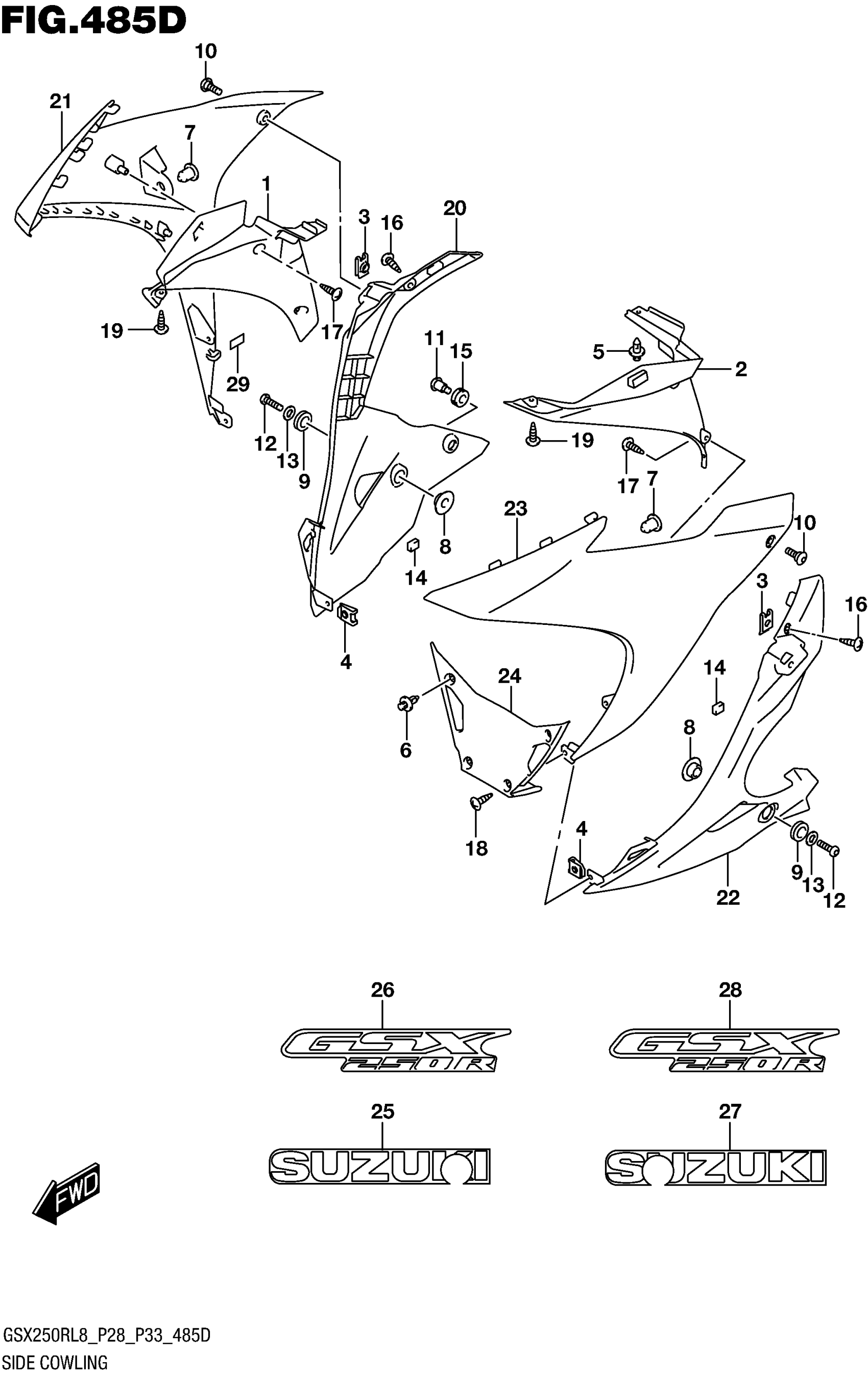

Suzuki GSX250RL8 (2018) SIDE COWLING (GW250RL8 P33) (FOR QHW) Diagram

#

Description
Price

1

COWLING,INNER,R

94461-20K00

$21.73

2

COWLING,INNER,L

94462-20K00

$21.73

3

NUT, SIDE COWL

35155-48H00

$3.30

4

NUT, UNDER COWL

47399-48H00

$2.68

5

CLIP, INNER COWL

48292-32GH0

$2.93

6

CLIP, UNDER COWL

48292-32GH0

$2.93

7

CUSHION,BRACE This part replaces 51827-48H00.

51827-48H01

$2.40

8

SPACER,UNDER COWL

94472-48HA1

$1.52

9

CUSHION,UNDER COWL This part replaces 94473-48HA0.

94473-48HA1

$2.08

10

SCREW (5X13)

09139-05064

$2.56

11

SCREW,UNDER COWL,R

94476-20K00

$2.73

12

BOLT,UNDER COWL

94477-20K00

$1.47

13

WASHER,UNDER COWL

94478-20K00

$1.16

14

.CUSHION,UNDER COWL

94531-20K00

$2.08

15

CUSHION

09320-09016

$1.97

16

SCREW

03541-0516A

$1.37

17

SCREW

03541-0516A

$1.37

18

SCREW

03541-0516B

$1.77

19

SCREW

03541-0516B

$1.77

20

COWLING,UNDER,R

94471-20K00

$40.33

21

COWLING, SIDE RH (WHITE)

94475-20K00-QHW

$147.93

22

COWLING,UNDER,L

94481-20K00

$37.82

23

COWLING, SIDE LH (WHITE)

94485-20K00-QHW

$141.77

24

COWLING,UNDER CTR

94498-20K00

$32.62

25

EMBLEM, "SUZUKI" RH

68181-20K00-BFH

$3.48

25

(WHITE/BLACK)

68181-20K00-BFH

$3.48

26

EMBLEM, "GSX" RH

68182-20K00-BFG

$4.57

27

EMBLEM, "SUZUKI" LH

68191-20K00-BFH

$3.05

27

(WHITE/BLACK)

68191-20K00-BFH

$3.05

28

EMBLEM, "GSX" LH

68192-20K00-BFG

$3.17

29

CUSHION,SIDE COWLING

94479-20K00

$5.75
