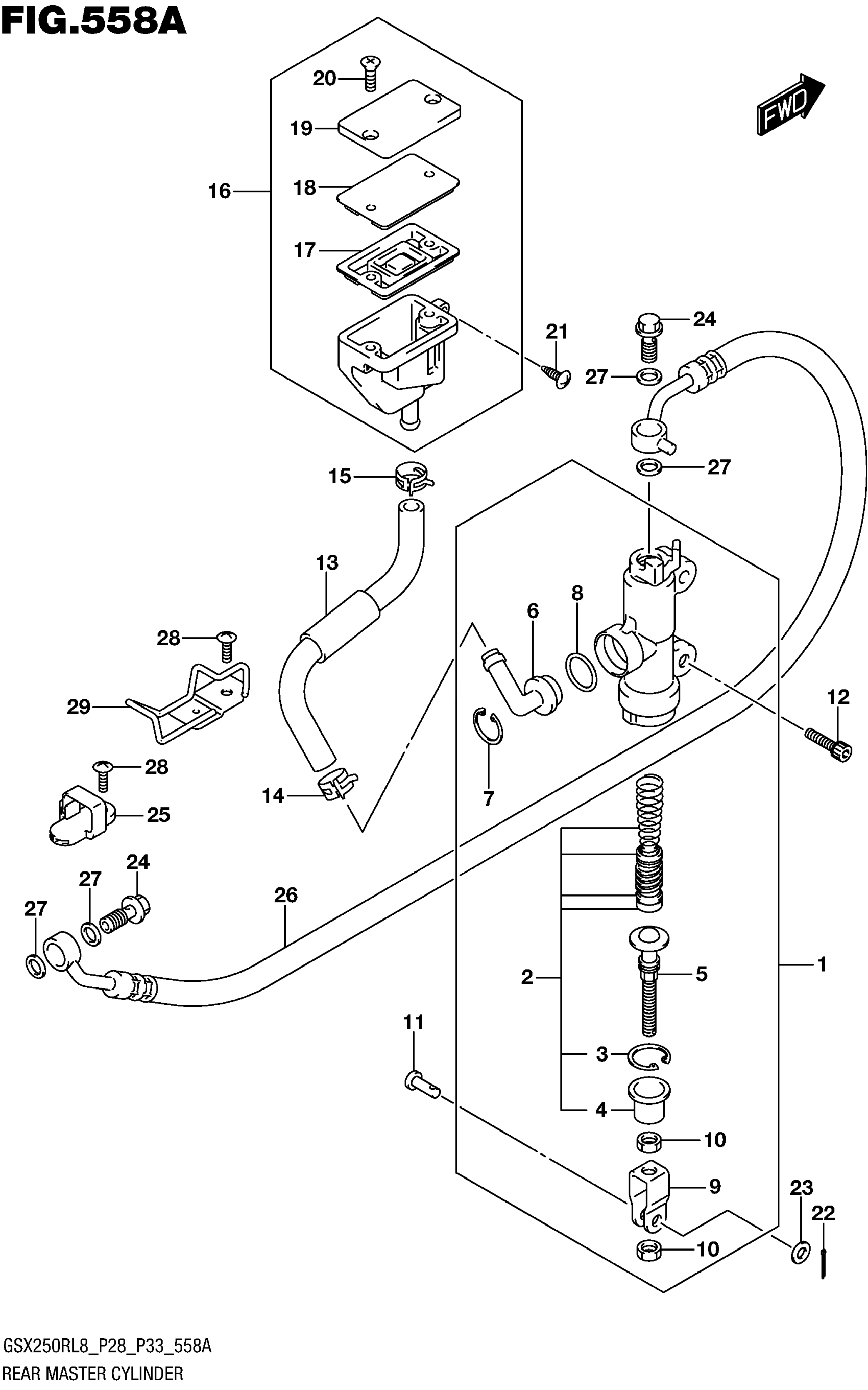

Suzuki GSX250RL8 (2018) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-20K00

$180.48

2

.PISTON/CUP SET

69600-40820

$110.43

3

..CIRCLIP

69665-47H00

$5.65

4

.BOOT

69691-00A00

$5.00

5

.ROD,PUSH

69670-48H10

$81.25

6

.CONNECTOR

69672-00B20

$6.42

7

.CIRCLIP

69674-00B20

$3.73

8

.O RING

69686-34200

$2.80

9

.YOKE

69692-44H00

$19.03

10

.NUT

69693-05A00

$1.86

11

PIN

69697-48H00

$3.48

12

BOLT

69698-48H00

Unavailable

13

HOSE,RR RESERVOIR TANK

69730-20K00

$55.05

14

CLIP,RR RSVR TANK HOSE LWR

69735-48H00

Unavailable

15

CLIP,RR RSVR TANK HOSE UPR

69735-48H10

Unavailable

16

TANK ASSY,REAR RESERVOIR

69740-48H50

$71.43

17

.DIAPHRAGM

59667-48H00

$12.95

18

.PLATE, DIAPHRAGM

59668-48H00

$13.30

19

.CAP

59669-48H50

$46.42

20

.SCREW

69689-48H10

$2.73

21

BOLT

01547-0616A

$2.01

22

COTTER PIN

04111-2015A

$1.22

23

WASHER

08322-0106A

$1.83

24

BOLT,BRAKE FLUID

59492-48H00

Unavailable

25

GUIDE,RR BRAKE HOSE

61196-48H00

$4.12

26

HOSE, REAR BRAKE

69480-20K00

Unavailable

27

WASHER,BRAKE FLUID (10X15X1.5

59464-48H00

$2.95

28

SCREW

02142-0616A

$1.37

29

GUIDE,REAR BRAKE HOSE

69260-20K00

$8.75
