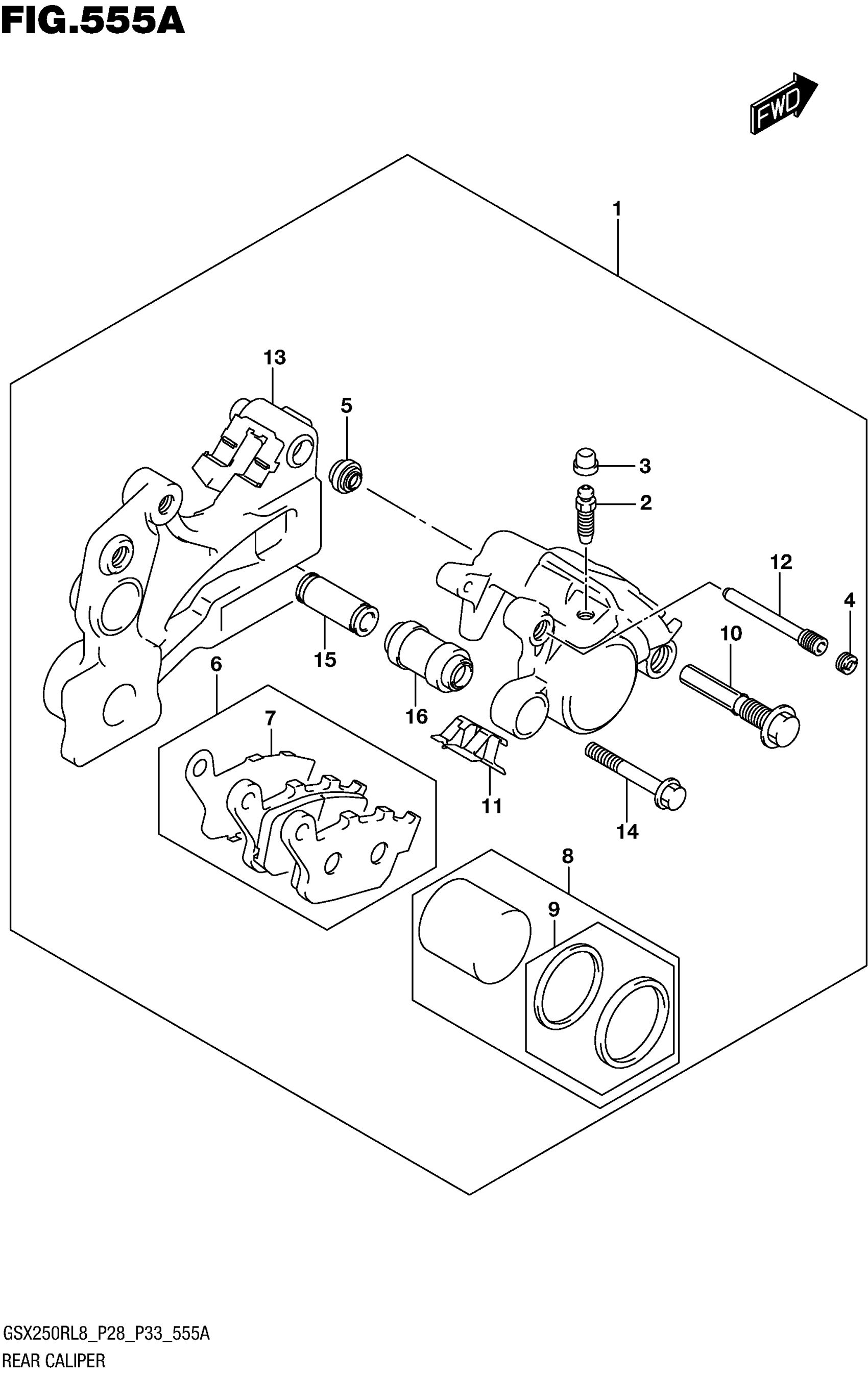

Find the part on the Rear Caliper diagram for your 2018 Suzuki GSX250RL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki GSX250RL8 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR

69100-48H20

1

$532.78

In stock

2

.BLEEDER

59121-01A00

1
Out of stock

3

.CAP, BLEEDER

59122-46H00

1

$4.54

In stock

4

.PLUG, PIN

59146-21E10

1
Out of stock

5

.BOOT

59303-14500

1
Out of stock

6

.PAD & SHIM SET

69100-48830

1

$116.62

In stock

7

..SHIM

69134-20K00

1

$48.08

In stock

8

.PISTON SET

69100-48840

1
Out of stock

9

..SEAL SET,PISTON

69100-13820

1
Out of stock

10

.BOLT

69105-04F00

1

$14.44

In stock

11

.SPRING,PAD

69115-06G00

1

$13.85

In stock

12

.PIN, PAD

69141-40F00

1

$30.23

In stock

13

.BRACKET

69150-48H10

1

$138.20

In stock

14

.BOLT

69182-04F00

1

$9.31

In stock

15

.SLEEVE

69185-04F00

1

$20.88

In stock

16

.BOOT,SLEEVE

69186-04F00

1

$13.55

In stock
