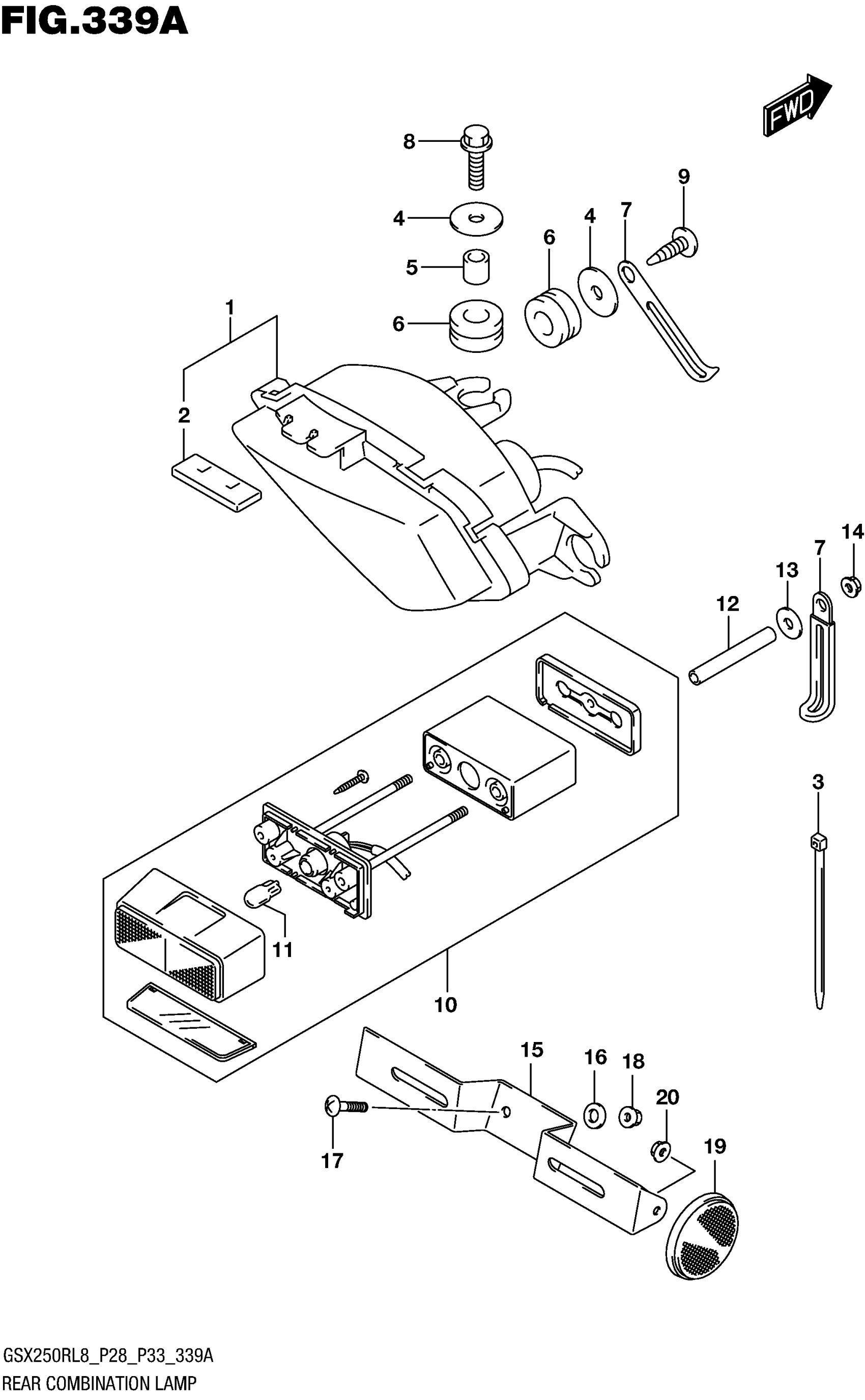

Suzuki GSX250RL8 (2018) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB This part replaces 35710-20K00.

35710-20K01

$263.80

2

.COVER

35781-20K00

$3.22

3

CLAMP (L:50)

36990-48H20

Unavailable

4

WASHER (5.5X20X1.2)

09160-05501

$1.84

5

SPACER (6.5X10X10)

09180-06310

$1.91

6

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

7

CLAMP (L:45)

09404-06429

$1.83

8

BOLT

01550-0520A

$2.26

9

SCREW

03541-0516A

$1.49

10

LAMP ASSY.LICENSE

35910-48H40

$55.18

11

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

12

SPACER,LICENSE LAMP

35996-48H30

$3.08

13

WASHER (6.5X20X1.2)

09160-06077

$1.91

14

NUT

08316-1006A

$2.19

15

BRACKET,LICENSE PLATE

35927-48H30

$8.17

16

WASHER (6.5X16X1.2)

09160-06019

$1.49

17

SCREW

02142-0616A

$1.49

18

NUT

08316-1006A

$2.19

19

REFLECTOR ASSY, RR SIDE

35950-04HA0

$14.22

20

NUT

08316-1005A

$2.19
