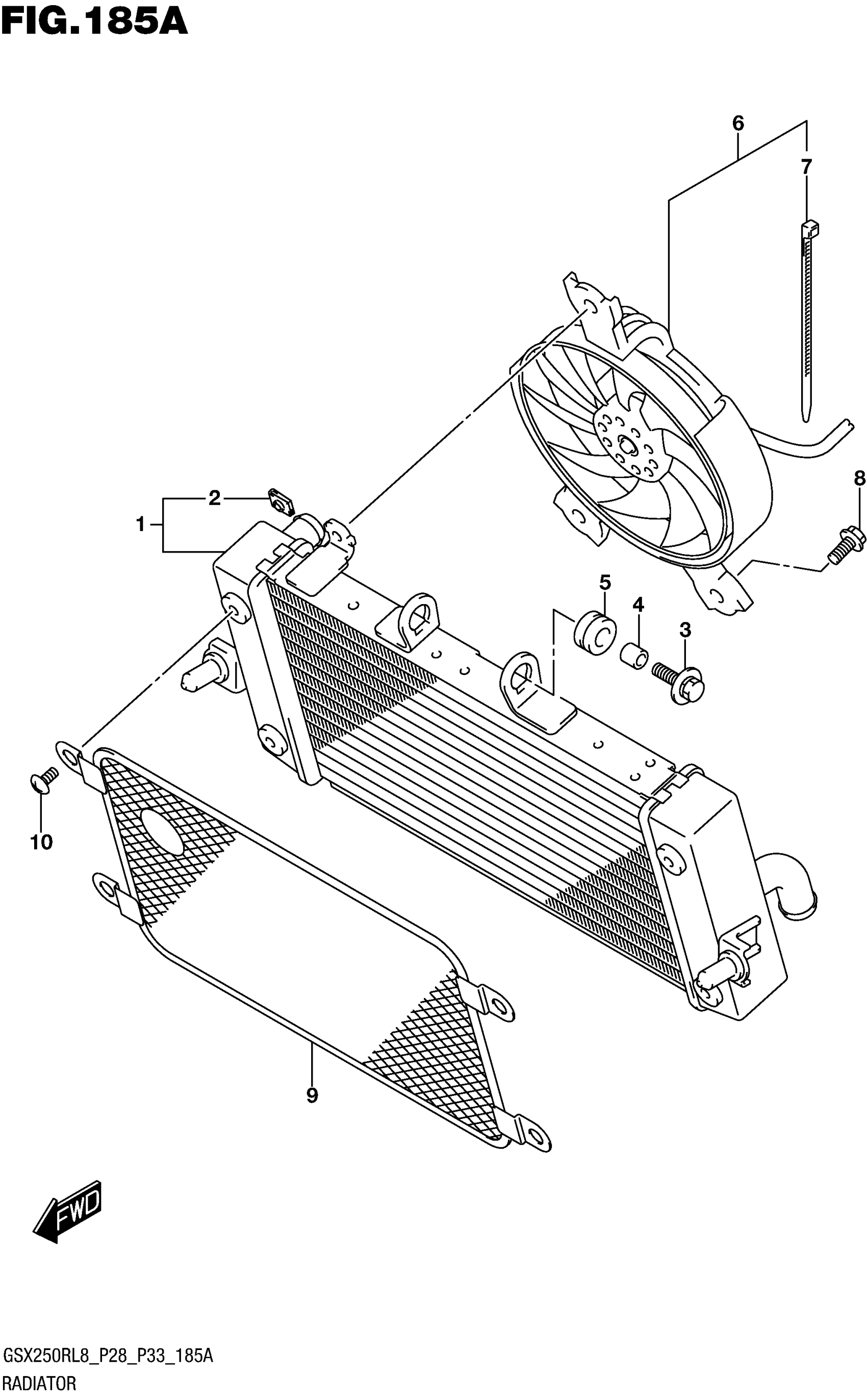

Suzuki GSX250RL8 (2018) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY,WATER

17710-48HC0

$282.40

2

.NUT, FAN ASSY

17712-48H00

Unavailable

3

BOLT (6X25)

09118-06097

$2.50

4

SPACER (6.5X10X10)

09180-06364

$1.49

5

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

6

FAN ASSY,RADIATOR

17800-48H10

$252.15

7

.CLAMP, FAN MOTOR LEAD

36990-48H20

Unavailable

8

BOLT

01550-0612A

$1.97

9

NET, RADIATOR

17760-48H00

$15.05

10

SCREW

02142-0610B

$2.15
