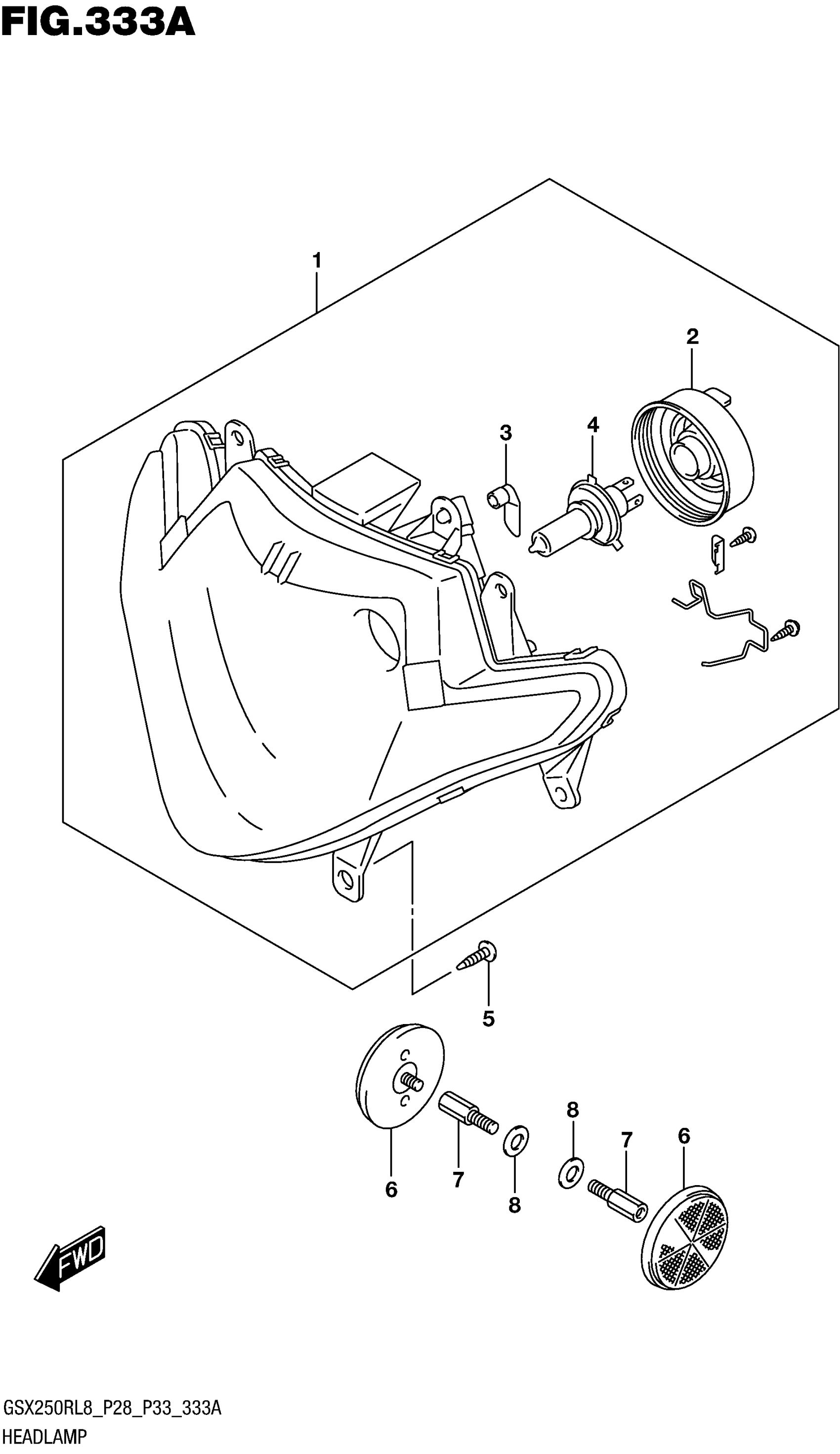

Suzuki GSX250RL8 (2018) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY This part replaces 35100-20K30.

35100-20K31

$388.43

2

.COVER

35179-20K00

$9.08

3

.TUBE

35186-20K00

$3.22

4

.BULB (12V60/55W)

09471-12060

$25.15

5

SCREW

03541-0516A

$1.49

6

REFLEX REFLECTOR ASSY, FR SID

35950-04H50

$14.22

7

BOLT (6X18)

09119-06119

$4.03

8

WASHER

08322-0106A

$1.84
