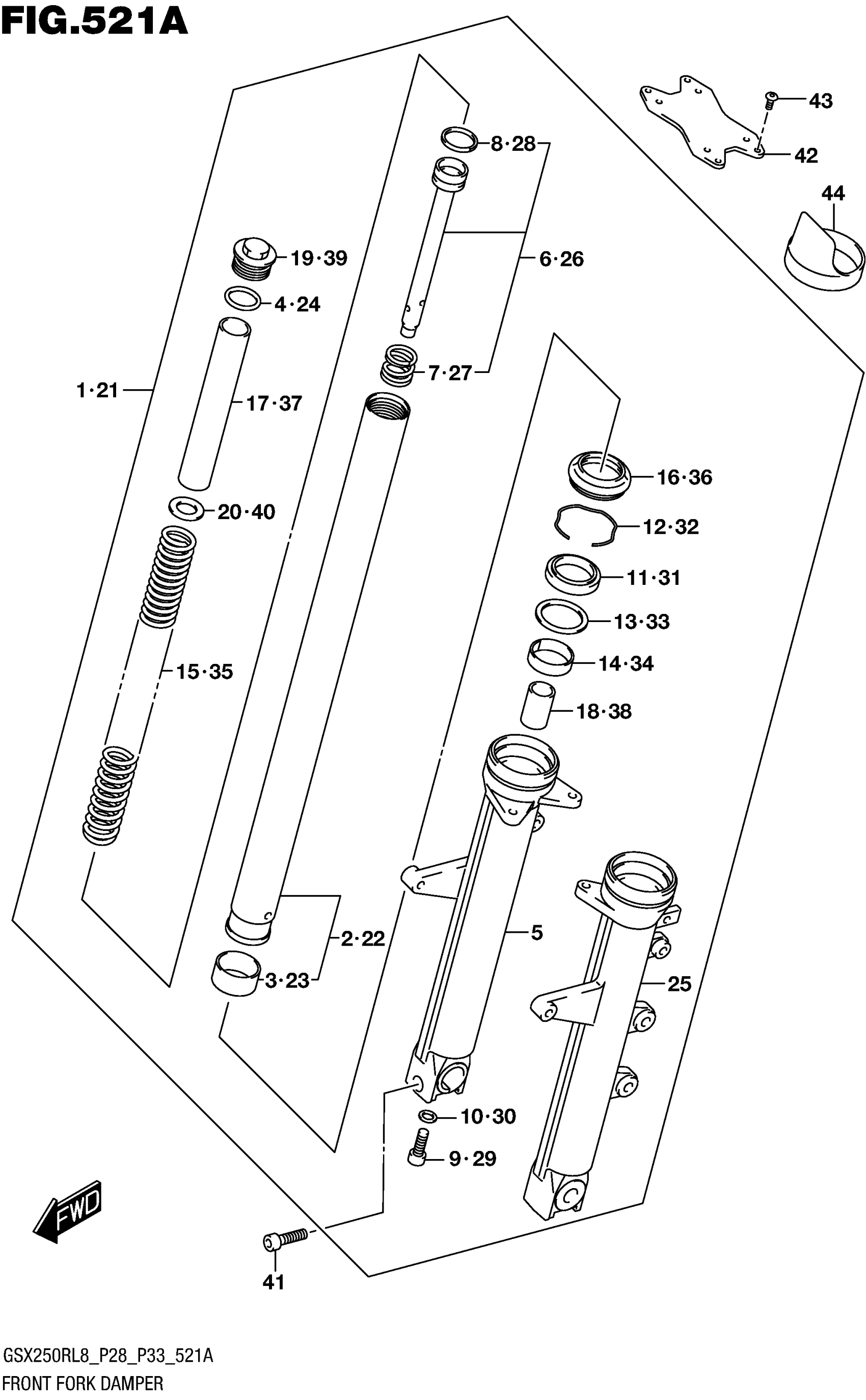

Suzuki GSX250RL8 (2018) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FRONT FORK RH

51103-20K00

$1,250.57

2

.TUBE,INNER

51110-20K00

$297.73

3

..PISTON

51121-01D00

$18.90

4

.O RING

51117-38260

$3.78

5

.TUBE,OUTER RH

51130-20K00

$577.23

6

.CYLINDER

51146-20K00

$98.38

7

..SPRING,REBOUND

51177-48H00

$14.18

8

..RING

51196-16730

$3.25

9

.BOLT

51147-05H00

$5.40

10

.GASKET

51148-41310

$2.26

11

.OIL SEAL

51153-26F00

$25.27

12

.RING,SNAP

51156-20K00

$5.98

13

.WASHER

51158-48H00

$3.47

14

.METAL, SLIDE

51167-01D00

$12.63

15

.SPRING,MAIN

51171-20K00

$80.52

16

.SEAL, DUST

51173-48H00

$24.72

17

.SPACER

51176-48H10

Unavailable

18

.PIECE,OIL LOCK

51195-20K00

$14.80

19

.CAP

51351-48H00

$116.63

20

.WASHER

51356-48H00

$9.42

21

DAMPER ASSY, FRONT FORK LH

51104-20K10

$1,250.57

22

.TUBE,INNER

51110-20K00

$297.73

23

..PISTON

51121-01D00

$18.90

24

.O RING

51117-38260

$3.78

25

.TUBE, OUTER

51140-48H70

$867.37

26

.CYLINDER

51146-20K00

$98.38

27

..SPRING,REBOUND

51177-48H00

$14.18

28

..RING

51196-16730

$3.25

29

.BOLT

51147-05H00

$5.40

30

.GASKET

51148-41310

$2.26

31

.OIL SEAL

51153-26F00

$25.27

32

.RING,SNAP

51156-20K00

$5.98

33

.WASHER

51158-48H00

$3.47

34

.METAL, SLIDE

51167-01D00

$12.63

35

.SPRING,MAIN

51171-20K00

$80.52

36

.SEAL, DUST

51173-48H00

$24.72

37

.SPACER

51176-48H10

Unavailable

38

.PIECE,OIL LOCK

51195-20K00

$14.80

39

.CAP

51351-48H00

$116.63

40

.WASHER

51356-48H00

$9.42

41

BOLT

51328-48H00

Unavailable

42

STABILIZER,FR

51471-48H00

Unavailable

43

SCREW (6X16)

09139-06030

$3.70

44

PROTECTOR

51201-48H00

$17.72
