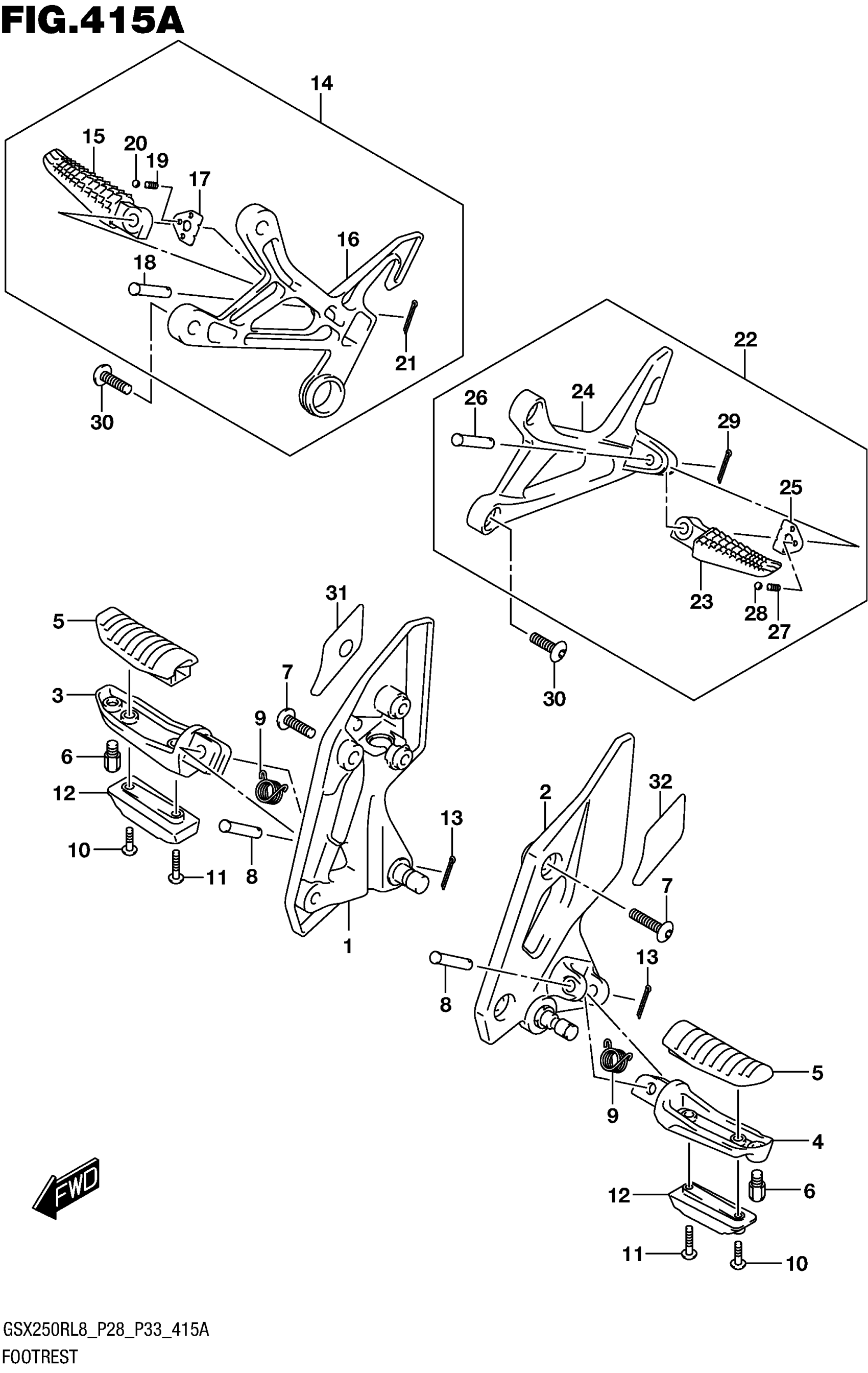

Suzuki GSX250RL8 (2018) FOOTREST Diagram

#

Description
Price

1

BRACKET,FOOTREST RH This part replaces 43510-20K00.

43510-20K01

$124.30

2

BRACKET,FOOTREST LH

43521-20K00

$129.27

3

BAR,FR FOOTREST,R

43511-44G10

$47.20

4

BAR,FR FOOTREST,L

43521-44G10

$47.20

5

RUBBER, FOOTREST

43550-44G10

$29.22

6

BOLT,BANK SENSOR

43576-48H00

$2.97

7

BOLT,FOOTREST BRACKET

43512-20K00

$4.22

8

PIN,FRONT FOOTREST

43529-34J00

$5.00

9

SPRING

09448-16033

$1.49

10

SCREW

02142-0525A

$2.23

11

SCREW

02142-0530A

$2.23

12

BALANCER, FR FOOTREST

43536-44G00

$45.09

13

PIN

04111-2515A

$1.49

14

FOOTREST ASSY, PILLION RH

43600-20K00

$139.82

15

.BAR, PILLION FOOTREST RH

43611-20K00

$38.22

16

.BRACKET,PILLION FOOTREST,R

43811-20K00

$126.97

17

PLATE,PILLION FOOTREST

43816-01H10

$7.85

18

.PIN

09200-08067

Unavailable

19

SPRING

09440-05003

$1.49

20

BALL This part replaces 06112-07004.

06111-07004

$1.49

21

.PIN

04111-2515A

$1.49

22

FOOTREST ASSY, PILLION LH

43700-20K00

Unavailable

23

.BAR, PILLION FOOTREST LH

43621-20K00

$38.22

24

.BRACKET,PILLION FOOTREST,L

43821-20K00

$126.97

25

PLATE,PILLION FOOTREST

43816-01H10

$7.85

26

.PIN

09200-08067

Unavailable

27

SPRING

09440-05003

$1.49

28

BALL

06111-07004

$1.49

29

.PIN

04111-2515A

$1.49

30

BOLT (8X23)

09106-08150

$3.42

31

TAPE, FR FOOTREST RH

43571-20K00

$13.60

32

TAPE, FR FOOTREST LH

43572-20K00

$13.60
