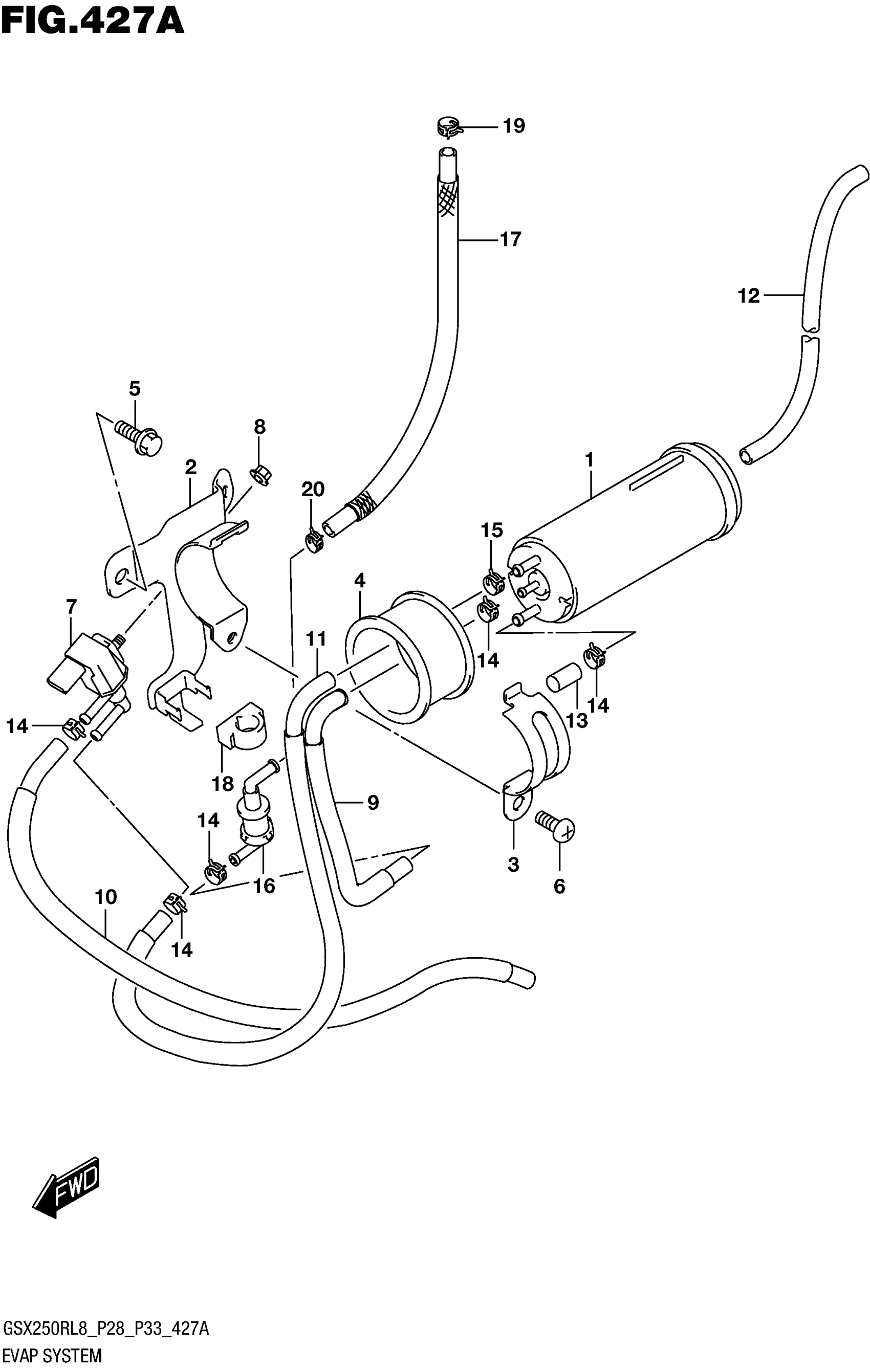

Suzuki GSX250RL8 (2018) EVAP SYSTEM Diagram

#

Description
Price

1

CANISTER ASSY,CHARCOAL

18560-48H00

$58.07

2

BRACKET,CANISTER

18570-48H00

Unavailable

3

HOLDER,CANISTER

18578-48H00

Unavailable

4

CUSHION CANISTER

44883-26E00

Unavailable

5

BOLT

01547-0616A

$2.03

6

SCREW

02142-0610A

$1.49

7

VALVE,CANISTER PURGE

18117-20K00

$53.77

8

NUT

08316-1006A

$2.19

9

HOSE,CANISTER INLET

18561-20K10

$63.30

10

HOSE,PURGE VALVE

18563-20K10

$116.37

11

HOSE,CANISTER PURGE

18562-20K10

$71.35

12

HOSE,CANISTER AIR

18567-20K00

$10.25

13

CAP

09251-07L01

$2.70

14

CLIP

09401-10L01

Unavailable

15

CLIP

09401-12L04

Unavailable

16

VALVE,FUEL TANK BREATHER

44240-13H00

$41.12

17

HOSE, TANK & BRTHR VALVE

44434-48H10

Unavailable

18

CUSHION, FUEL TANK BRTHR VALV

44894-48H00

Unavailable

19

CLIP

09401-10L01

Unavailable

20

CLIP

09401-10L01

Unavailable
