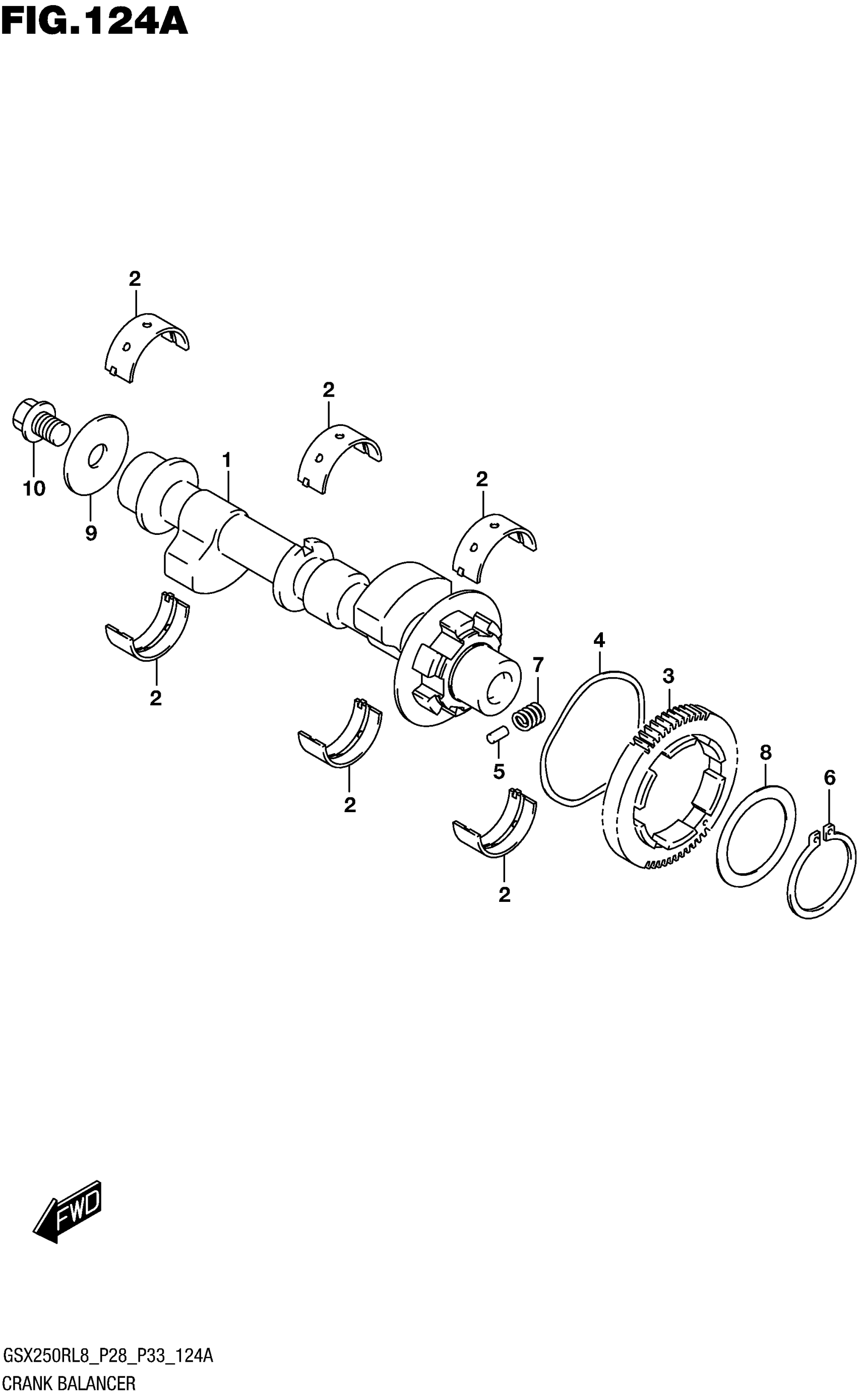

Suzuki GSX250RL8 (2018) CRANK BALANCER Diagram

#

Description
Price

1

BALANCER, CRANK

12650-48H00

Unavailable

2-1

BEARING, CRANK BALANCER

12229-48H00-0A0

$19.43

2-1

(GREEN)

12229-48H00-0A0

$19.43

2-2

BEARING, CRANK BALANCER

12229-48H00-0B0

Unavailable

2-2

(BLACK)

12229-48H00-0B0

Unavailable

2-3

BEARING, CRANK BALANCER

12229-48H00-0C0

$16.52

2-3

(BROWN)

12229-48H00-0C0

$16.52

2-4

BEARING, CRANK BALANCER

12229-48H00-0D0

$19.43

2-4

(YELLOW)

12229-48H00-0D0

$19.43

3

GEAR, CRANK BALANCER DRIVEN

12666-48H01

$49.55

3

(NT:49)

12666-48H01

$49.55

4

WASHER

09164-60001

$21.22

5

PIN (4.5X9.5)

09202-04017

$3.78

6

CIRCLIP

09380-38008

$3.88

7

SPRING

09440-09031

$2.98

8

WASHER

08211-38521

Unavailable

9

WASHER (10X37X3)

09160-10151

$2.70

10

BOLT

01550-1016A

$3.10
