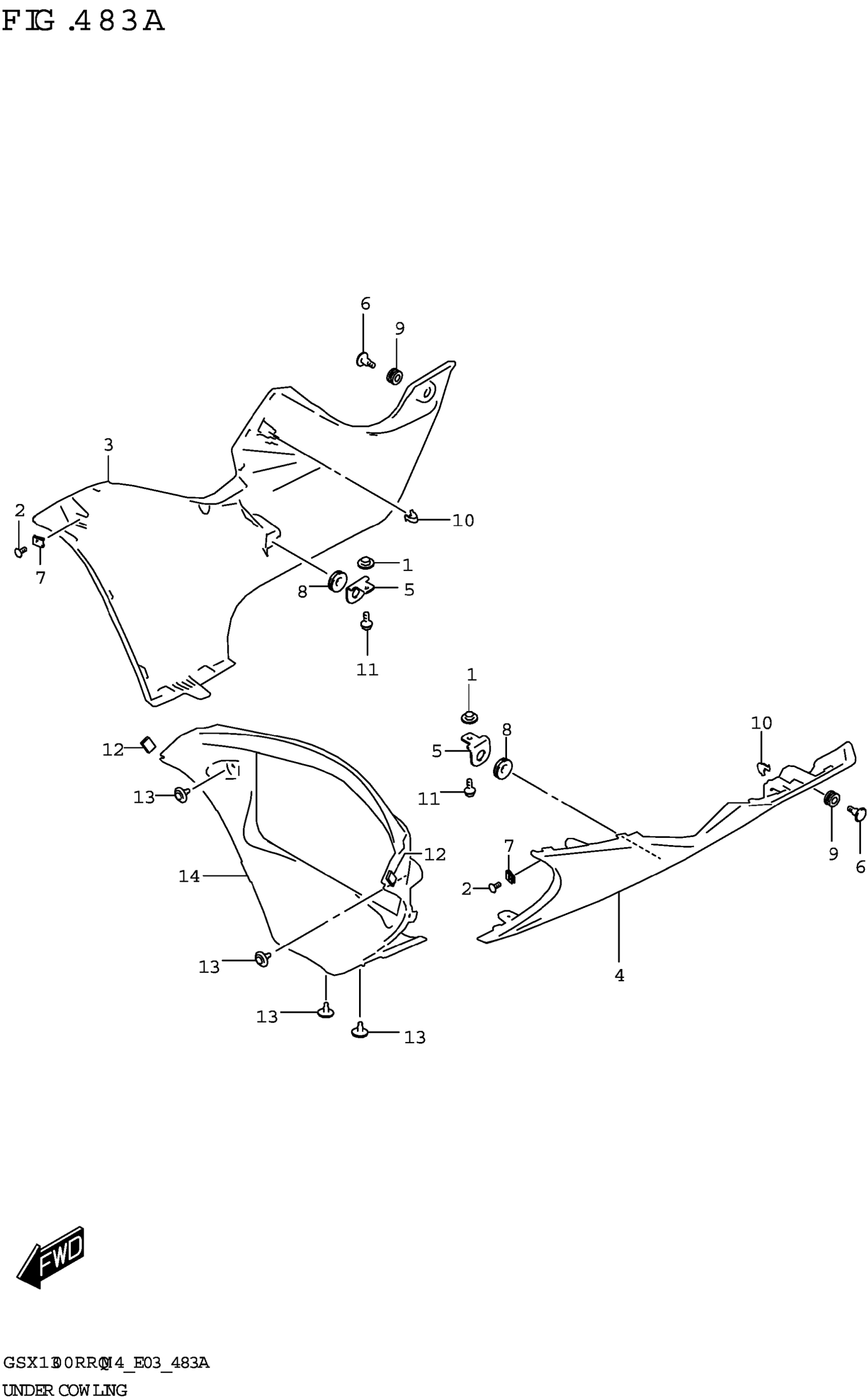

Suzuki GSX1300RRQM4 (2024) UNDER COWLING Diagram

#

Description
Price

1

NUT (M6)

09159-06086

$2.12

2

SCREW

03541-0512A

$1.41

3

COWLING,UNDER,R (BLACK)

94473-10L00-YVB

$171.51

4

COWLING,UNDER,L (BLACK)

94483-10L00-YVB

$231.45

5

BRACKET,UNDER COWL

94541-10L00

$17.02

6

SCREW (6X20)

09139-06206

$3.09

7

NUT (M5)

09148-05038

$2.01

8

CUSHION (8X26X7)

09320-08028

$2.82

9

CUSHION (9X18X9.5)

09320-09016

$2.01

10

CLIP (10.5X14.3)

09409-08326

$2.53

11

BOLT

01550-0616A

$2.01

12

PAD (8X20X2)

73415-70A00

$1.57

13

CLIP

94479-35F00

$5.38

14

COWLING,UNDER CTR

94491-10L00

$69.63
