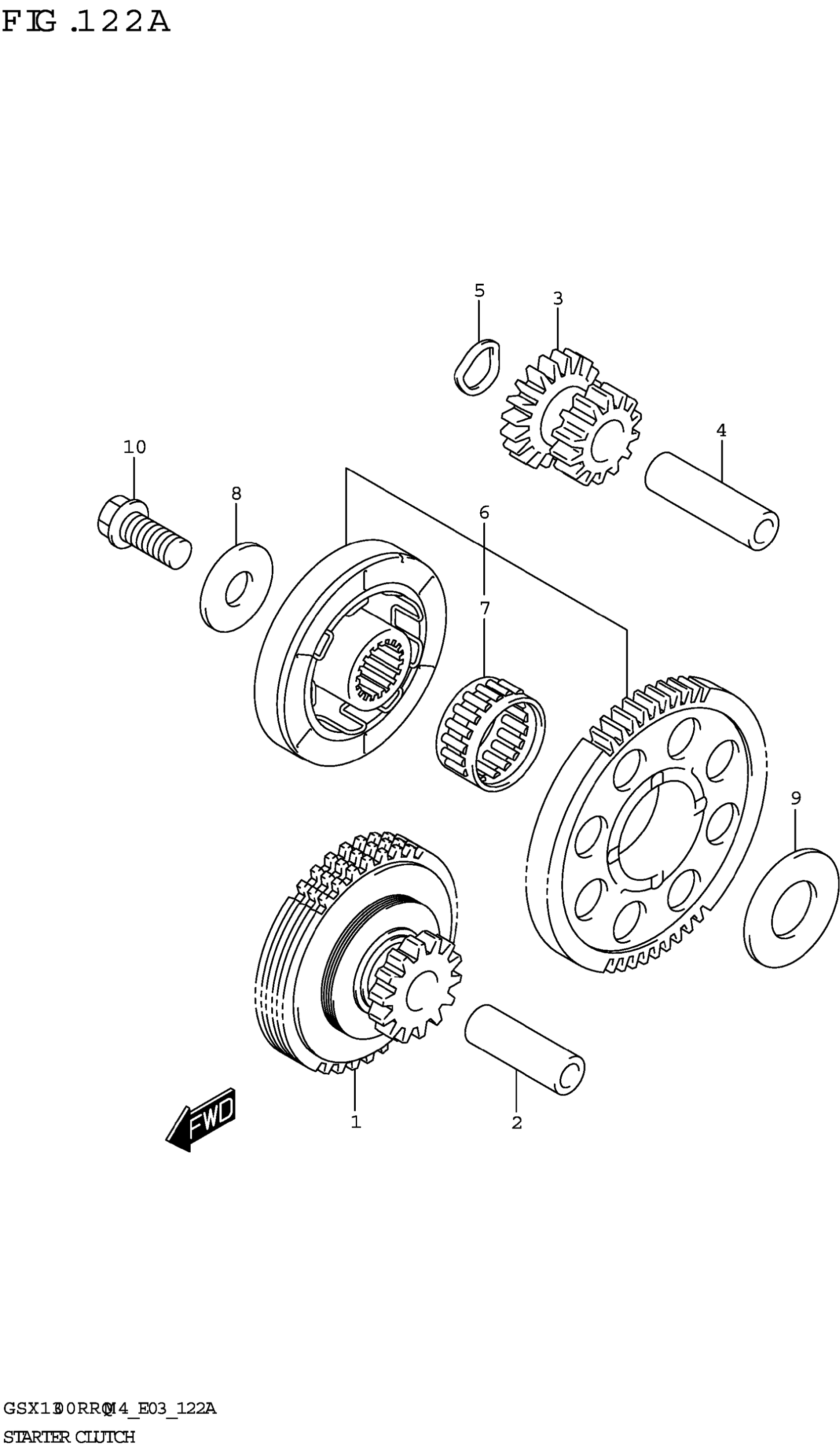

Suzuki GSX1300RRQM4 (2024) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY,START ID GR NO.1 | (NT:14)

12600-24F00

$107.37

2

PIN,STARTER IDLE GEAR NO.1

12615-24F00

$9.61

3

GEAR,STARTER IDLE NO.2 (NT:16 | 14)

12612-24F00

$60.75

4

PIN

12151-05200

$11.44

5

WASHER

09164-14008

$2.01

6

CLUTCH SET,STARTER

12600-24870

$309.95

7

.BEARING

09263-28040

$34.87

8

WASHER

08211-10285

$3.19

9

WASHER

08211-20403

$3.95

10

BOLT (10X23)

09103-10189

$3.70
