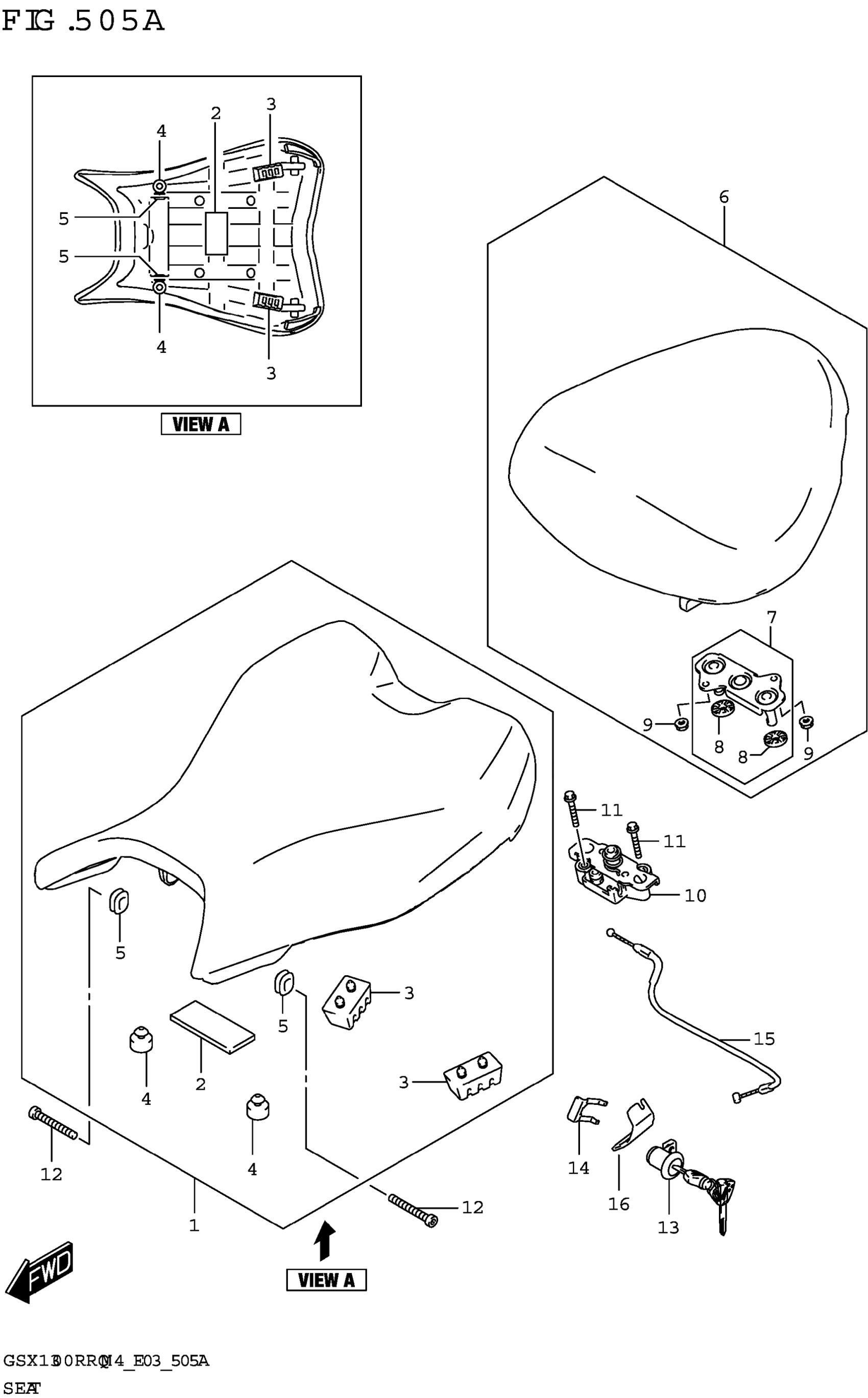

Suzuki GSX1300RRQM4 (2024) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK)

45100-10L01-QUZ

$228.67

2

.CUSHION

45117-15H01

$9.33

3

.CUSHION,SUPPORT (50X25X32)

45149-45330

$3.89

4

.CUSHION

09321-10011

$2.91

5

.CUSHION

45118-15H00

$9.31

6

SEAT ASSY,PILLION (BLACK) This part replaces 45300-10L02-QUZ.

45300-10L03-QUZ

$132.31

7

.STRIKER,SEAT LOCK

45290-10L00

$32.10

8

..CUSHION

45213-42F00

$5.60

9

NUT (6X12)

08316-1006A

$2.19

10

BRACKET,STRIKER SUPPORT

45220-15H00

$143.67

11

BOLT

01547-0630A

$2.32

12

BOLT,SEAT FR

45191-15H00

$7.69

13

LOCK SET,SEAT

95700-14810

$107.30

14

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

15

CABLE,SEAT LOCK

45280-26F00

$16.12

16

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36
