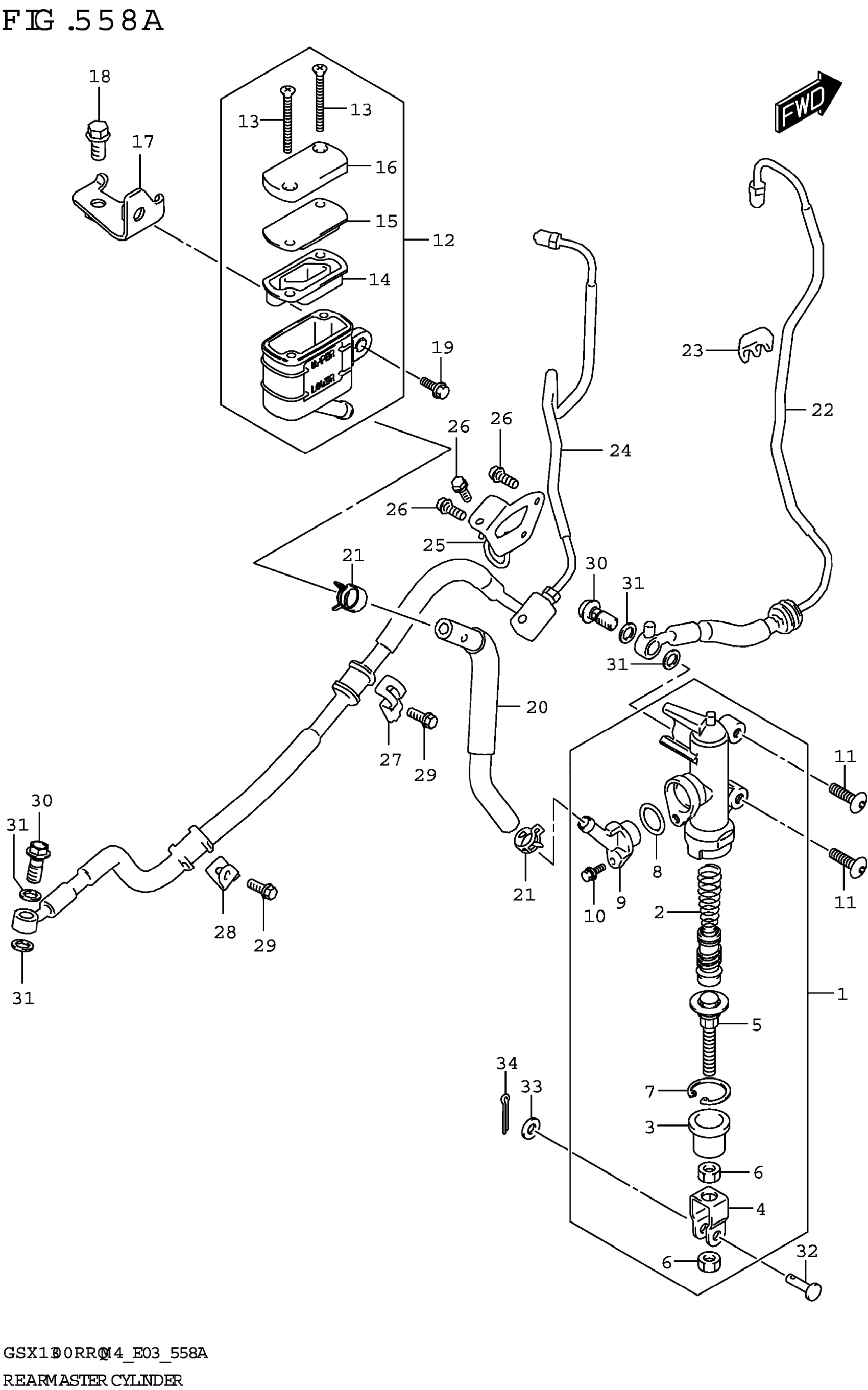

Suzuki GSX1300RRQM4 (2024) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-08J10

$168.05

2

.PISTON/CUP SET

69600-34810

$63.75

3

.BOOT

69691-04A00

$5.83

4

.YOKE

69692-47H00

$15.75

5

.PUSH ROD

69670-27A50

$45.18

6

.NUT

69693-47H00

$2.80

7

.CIRCLIP

69665-47H00

$5.65

8

.O-RING

69686-34200

$2.80

9

.CONNECTOR

69672-08J10

$6.56

10

.SCREW

02112-7412A

$2.67

11

SCREW (6X20)

09139-06028

$3.33

12

TANK ASSY,RESERVOIR

69740-06L00

$34.77

13

.SCREW

69689-01H00

$5.02

14

.DIAPHRAGM

69667-01H00

$7.12

15

.PLATE,DIAPHRAGM

69668-01H00

$6.75

16

.CAP

69669-18K00

$16.23

17

BRACKET,RR RESERVOIR TANK

69750-10L00

$12.23

18

BOLT

01547-0612A

$2.01

19

BOLT

01550-0616A

$1.97

20

HOSE,RR RESERVOIR TANK

69730-10L00

$20.97

21

CLIP (ID:12)

09401-12404

$2.37

22

HOSE ASSY,RR BK MASTER TO UNI

69200-10L00

$75.75

23

CLAMP

09403-06324

Unavailable

24

HOSE ASSY,UNIT TO RR BK CLPR

69400-10L00

$101.73

25

CLAMP,RR BRAKE HOSE

69260-15H00

Unavailable

26

BOLT

01547-0616A

$2.01

27

CLAMP,RR BRAKE HOSE NO.1

69275-15H00

$5.72

28

CLAMP,REAR BRAKE HOSE

69268-15H10

$8.85

29

BOLT

01547-0616B

$2.43

30

UNION This part replaces 09360-10042.

09360-10062

$5.81

31

WASHER (10X15X1.5)

09161-10009

$1.83

32

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$3.71

33

WASHER

08322-0106A

$1.83

34

PIN

04111-2015A

$1.22
