Description

Price

1

SHIELD,INNER

47871-10L00

$30.53

2

FENDER,REAR FRONT

63111-10L01

$126.85

3

FENDER,REAR REAR

63112-10L00

$55.50

4

CUSHION,REAR FENDER

63113-10L00

$3.03

5

CUSHION,REAR FENDER FRONT

63114-10L00

$2.18

6

BRACKET,REAR FENDER

63120-10L00

$135.97

7

BRACE,REAR FENDER FRONT

63130-10L00

$26.80

8

MUDGUARD,RR FENDER FR UPR

63411-10L00

$13.42

9

CUSHION (20X50X3)

92215-39H00

$4.22

10

CLIP

94479-35F00

$5.62

11

CUSHION (6X25X1)

94675-07L00

$2.20

12

BOLT (6X17.8)

09111-06072

$2.03

13

BOLT (6X16.5)

09111-06242

Unavailable

14

SCREW (6X13)

09139-06220

$3.78

15

CUSHION

09321-06037

$2.35

16

BOLT

01550-0616A

$1.97

17

SPANNER,HEXAGON (6)

96514-10L00

$5.83

18

SPANNER,HEXAGON (5)

96514-17K00

$4.77

19

SPANNER,HEXAGON (4)

96514-17K10

$3.30

20

DRIVER

09814-00015

$3.70

21

GRIP,DRIVER

09814-00016

$4.22

22

REFLECTOR ASSY,RR

35970-07F01

$20.88

23

NUT

08316-1005B

$2.50

24

BRACKET,REAR SIDE RR

47461-10L00

$12.12

25

SCREW (6X16)

09139-06137

$2.61

26

NUT (M6)

09159-06096

$3.15

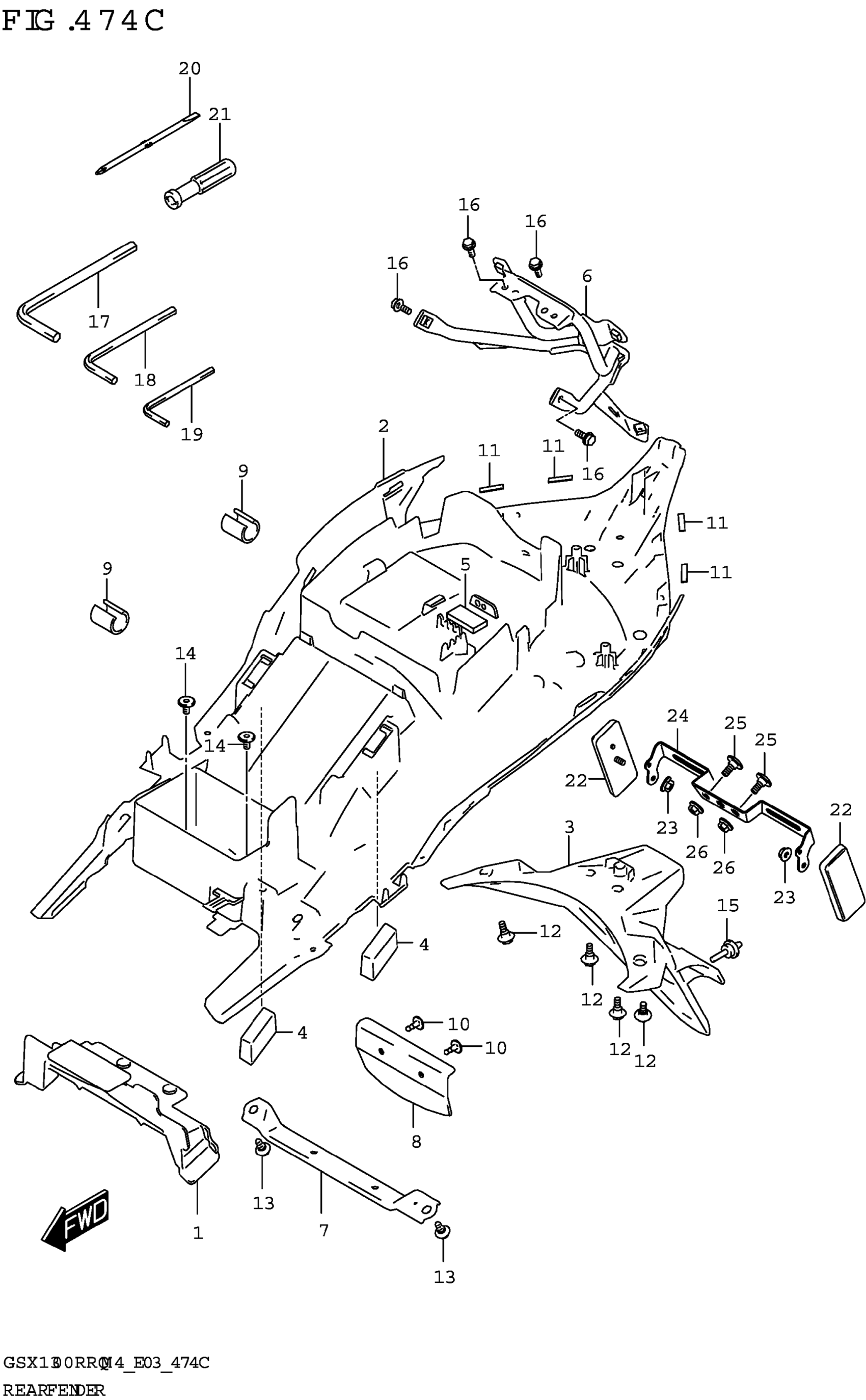

Suzuki GSX1300RRQM4 (2024) REAR FENDER (E28) Diagram
