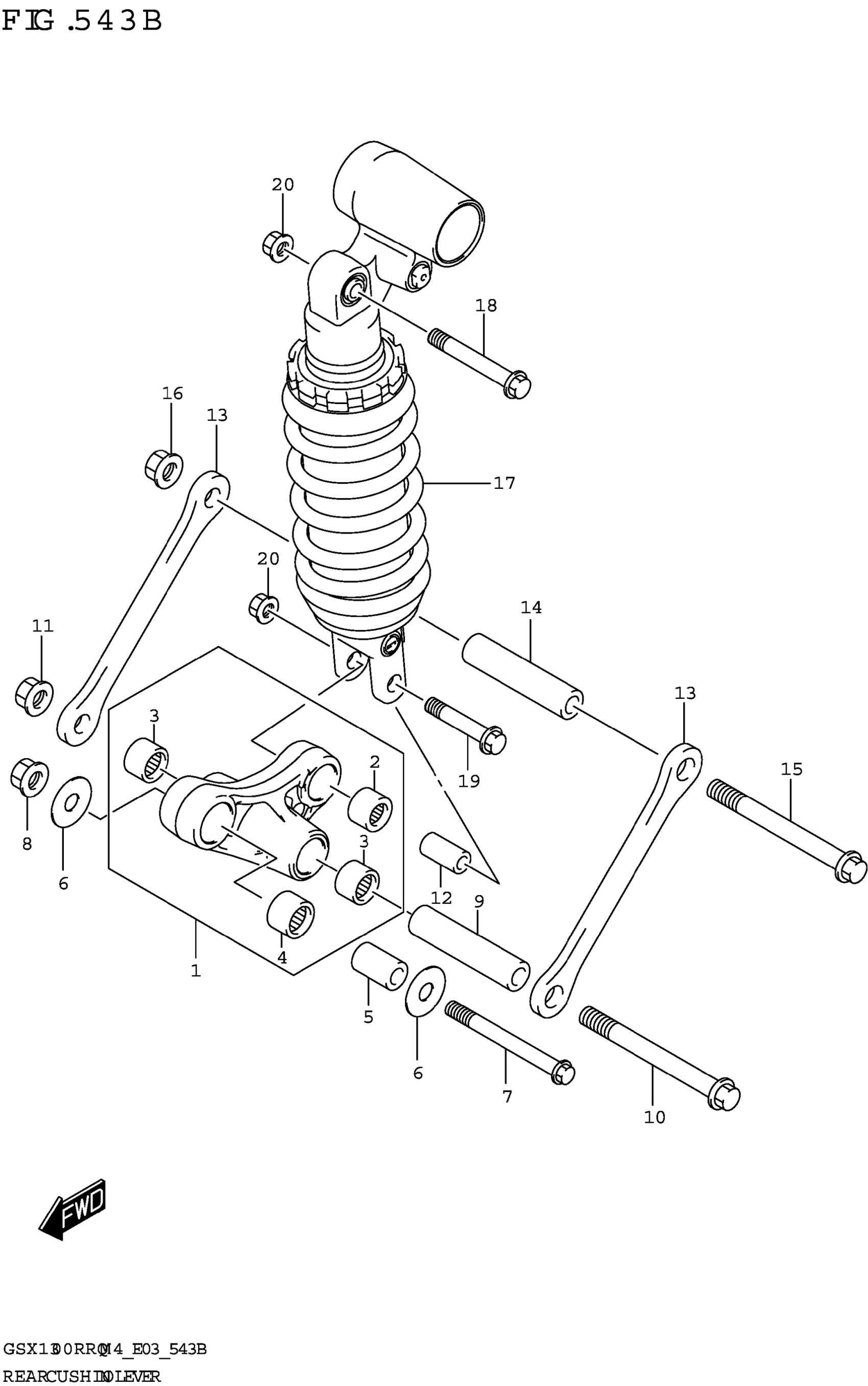

Suzuki GSX1300RRQM4 (2024) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET,RR CUSHION

62600-24833

$369.35

2

.BEARING (20X27X30)

09263-20121

$16.32

3

.BEARING (17X24X25)

09263-17053

$19.55

4

.BEARING (17X24X26)

09263-17057

$19.09

5

SPACER,RR CUSHION LEVER FR (1 | X20X32)

62684-12C00

$20.72

6

WASHER

08211-12301

$2.06

7

BOLT, RR CUSHION LEVER FR | 8)

62658-19F00

$13.50

8

NUT

09159-12056

$6.65

9

SPACER,RR CUSHION LEVER CTR ( | 2X17X94)

62626-33D00

$19.40

10

BOLT,RR CUSHION LEVER CTR

62621-33D10

$38.00

11

NUT

09159-12056

$6.65

12

SPACER,RR CUSHION LEVER (10X1 | X30)

62684-40A10

$11.44

13

ROD,RR CUSHION

62641-24F00

$63.75

14

SPACER,RR CUSHION LEVER CTR ( | 2X17X94)

62626-33D00

$19.40

15

BOLT,RR CUSHION LEVER CTR

62621-33D10

$38.00

16

NUT

09159-12056

$6.65

17

ABSORBER ASSY,REAR SHOCK (BLA | K)

62100-10L10-019

$1,349.40

18

BOLT (10X70)

09103-10033

$5.64

19

BOLT (10X55)

09103-10143

$4.92

20

NUT (M10)

09159-10115

$3.21
