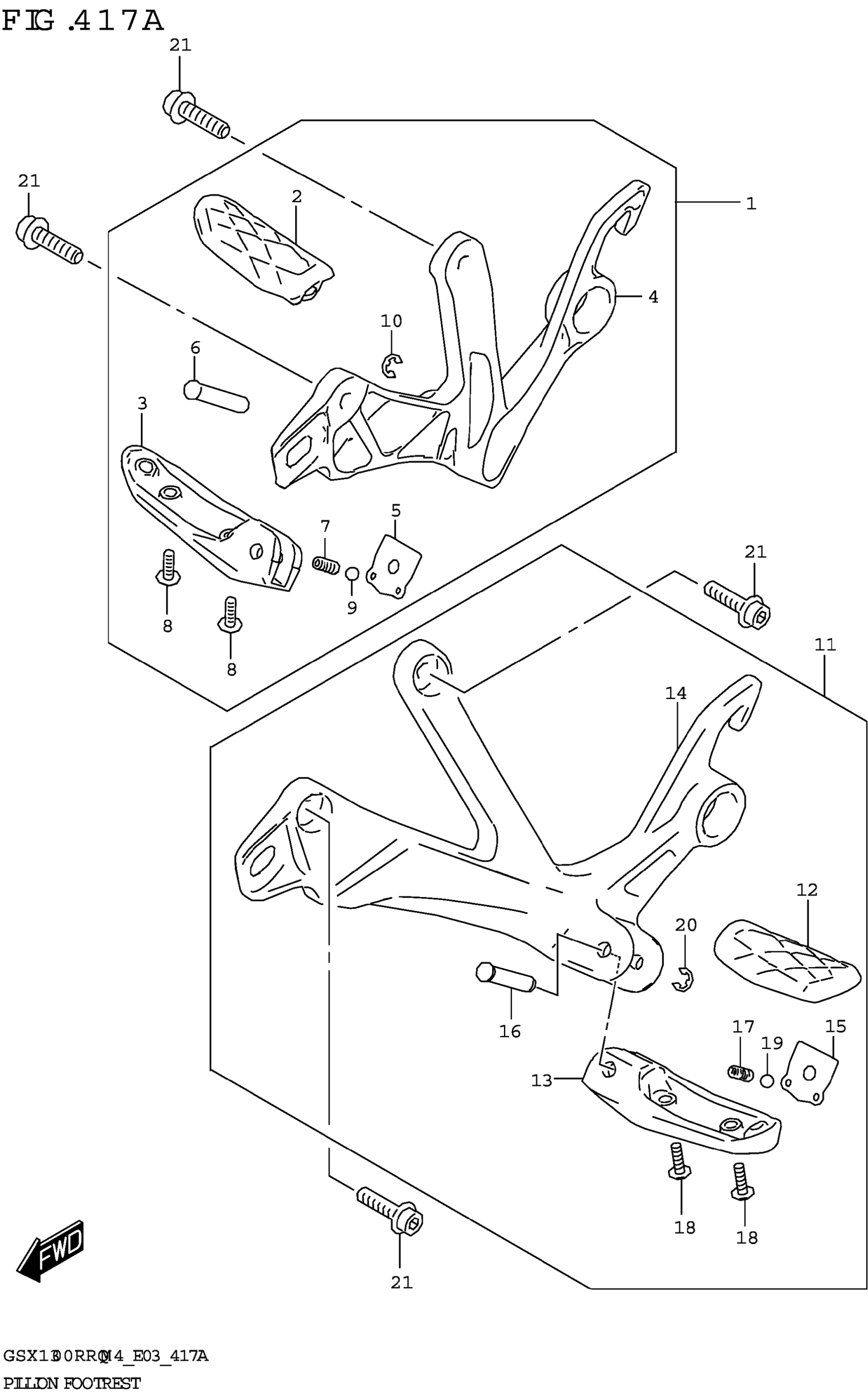

Suzuki GSX1300RRQM4 (2024) PILLION FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY,PILLION RH

43600-10L00

$182.17

2

RUBBER, FOOTREST

43550-10L00

$18.91

3

BAR, PILLION FOOTREST RH

43611-10L00

$72.07

4

.BRACKET,PILLION FOOTREST RH

43811-10L00

$152.25

5

PLATE, PILLION FOOTREST

43816-10L00

$7.00

6

PIN

09208-08019

$2.77

7

SPRING

09440-06039

$3.57

8

.SCREW

02142-0516A

$1.43

9

STEEL BALL This part replaces 06111-08004.

06111-08003

$1.30

10

E-RING

08332-1106A

$1.43

11

FOOTREST ASSY,PILLION LH

43700-10L00

$182.17

12

RUBBER, FOOTREST

43550-10L00

$18.91

13

BAR, PILLION FOOTREST LH

43621-10L00

$72.07

14

.BRACKET,PILLION FOOTREST LH

43821-10L00

$152.25

15

PLATE, PILLION FOOTREST

43816-10L00

$7.00

16

PIN

09208-08019

$2.77

17

SPRING

09440-06039

$3.57

18

.SCREW

02142-0516A

$1.43

19

STEEL BALL This part replaces 06111-08004.

06111-08003

$1.30

20

E-RING

08332-1106A

$1.43

21

BOLT (8X30)

09106-08121

$2.90
