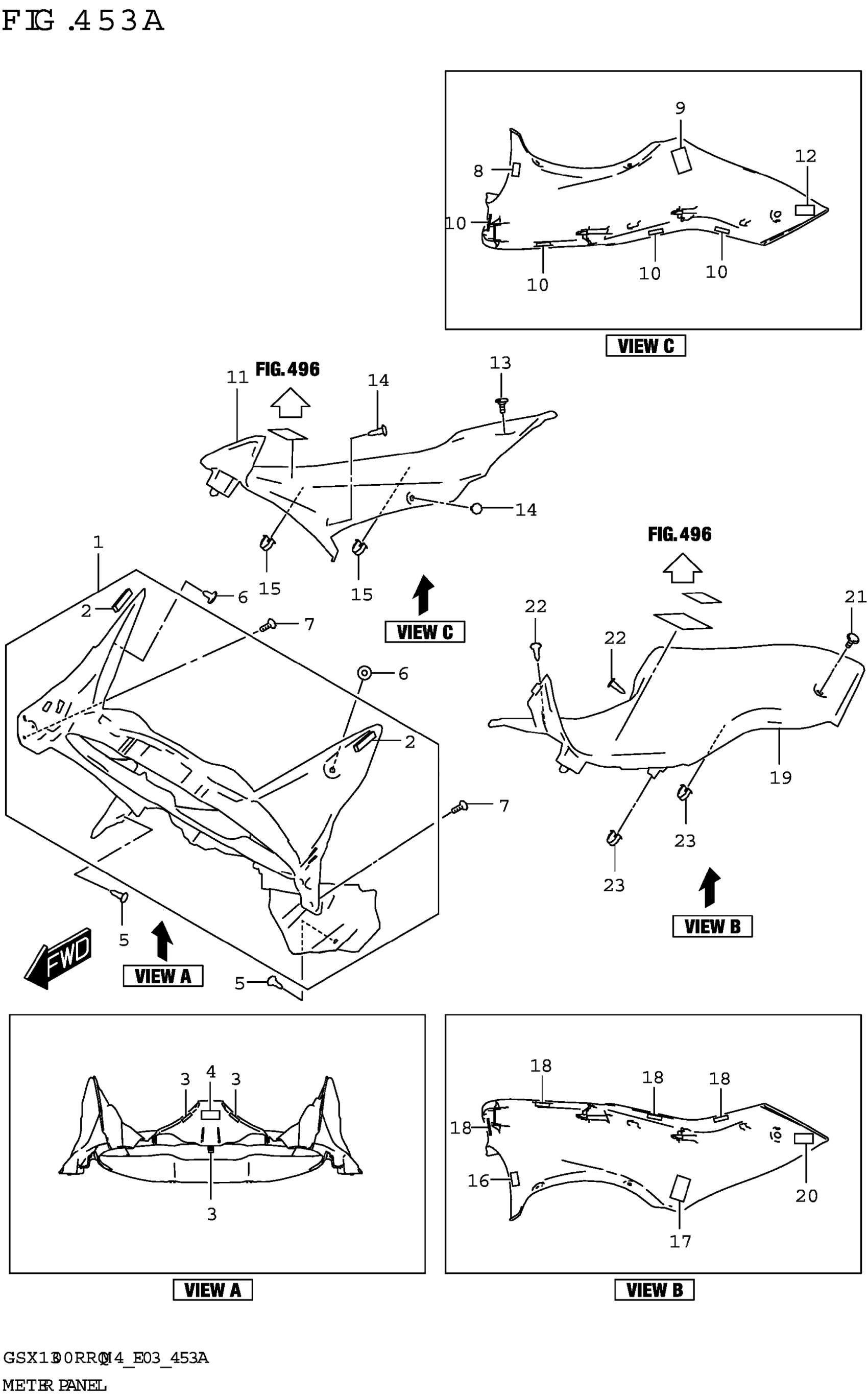

Suzuki GSX1300RRQM4 (2024) METER PANEL Diagram

#

Description
Price

1

PANEL,METER

94640-10L00

$85.38

2

.CUSHION,HEADLAMP COVER

51833-48GB0

Unavailable

3

PAD (8X20X2)

73415-70A00

$1.56

4

CUSHION (16X30X3.5)

94633-31J00

$2.44

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

6

CLIP

09409-06328

$3.23

7

SCREW

03541-0516A

$1.49

8

PAD (8X20X2)

73415-70A00

$1.56

9

.CUSHION,BODY COWL (20X40X7)

92146-14J00

$4.88

10

TAPE (6X25X0.13)

94443-06G00

$3.25

11

PANEL,METER,R (ORANGE)

94631-10L00-QRE

$191.30

12

CUSHION (16X30X3.5)

94633-31J00

$2.44

13

SCREW (5X13)

09139-05091

$2.03

14

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

15

CLIP (10.5X14.3)

09409-08326

$2.48

16

PAD (8X20X2)

73415-70A00

$1.56

17

.CUSHION,BODY COWL (20X40X7)

92146-14J00

$4.88

18

TAPE (6X25X0.13)

94443-06G00

$3.25

19

PANEL,METER,L (ORANGE)

94632-10L00-QRE

$191.30

20

CUSHION (16X30X3.5)

94633-31J00

$2.44

21

SCREW (5X13)

09139-05091

$2.03

22

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

23

CLIP (10.5X14.3)

09409-08326

$2.48
