Description

Price

1

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$4.16

2

COVER,FUEL TANK CAP

44211-10L00

$57.23

3

CUSHION,FUEL TANK FR COVER

44277-10L00

$1.49

4

COVER,FUEL TANK FRONT (ORANGE

44290-10L10-QRE

$204.35

5

.EMBLEM,"SUZUKI"

68111-10L00

$38.00

6

.EMBLEM

68281-10L00

$55.83

7

CUSHION,FUEL TANK COVER RR

44292-10L00

$1.49

8

RUBBER,FUEL TANK COVER

44295-10L00

$8.65

9

SPACER,FUEL TANK FRONT

44512-04K00

$7.07

10

BRACKET,FUEL TANK FRONT

44521-10L00

$48.83

11

NUT (M6)

44523-47H00

$10.02

12

BRACKET,FUEL TANK FR

44530-10L00

$14.95

13

FASTENER (33X25X2.6)

44572-13G00

$11.07

14

FASTENER (20X15X2.6)

44572-44G00

$10.18

15

.CUSHION (20X20X1)

47123-17K00

$4.34

16

BOLT (5X12)

09106-05026

$3.54

17

BOLT (6X30)

09116-06171

$3.08

18

SCREW (5X13)

09139-05092

$2.25

19

SCREW (6X10)

09139-06181

$3.83

20

NUT (M5)

09148-05052

$3.37

21

CUSHION (10X22X13)

09320-10050

$3.35

22

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

23

CLIP (10.5X14.3)

09409-08326

$2.48

24

BOLT

01550-0625B

$2.42

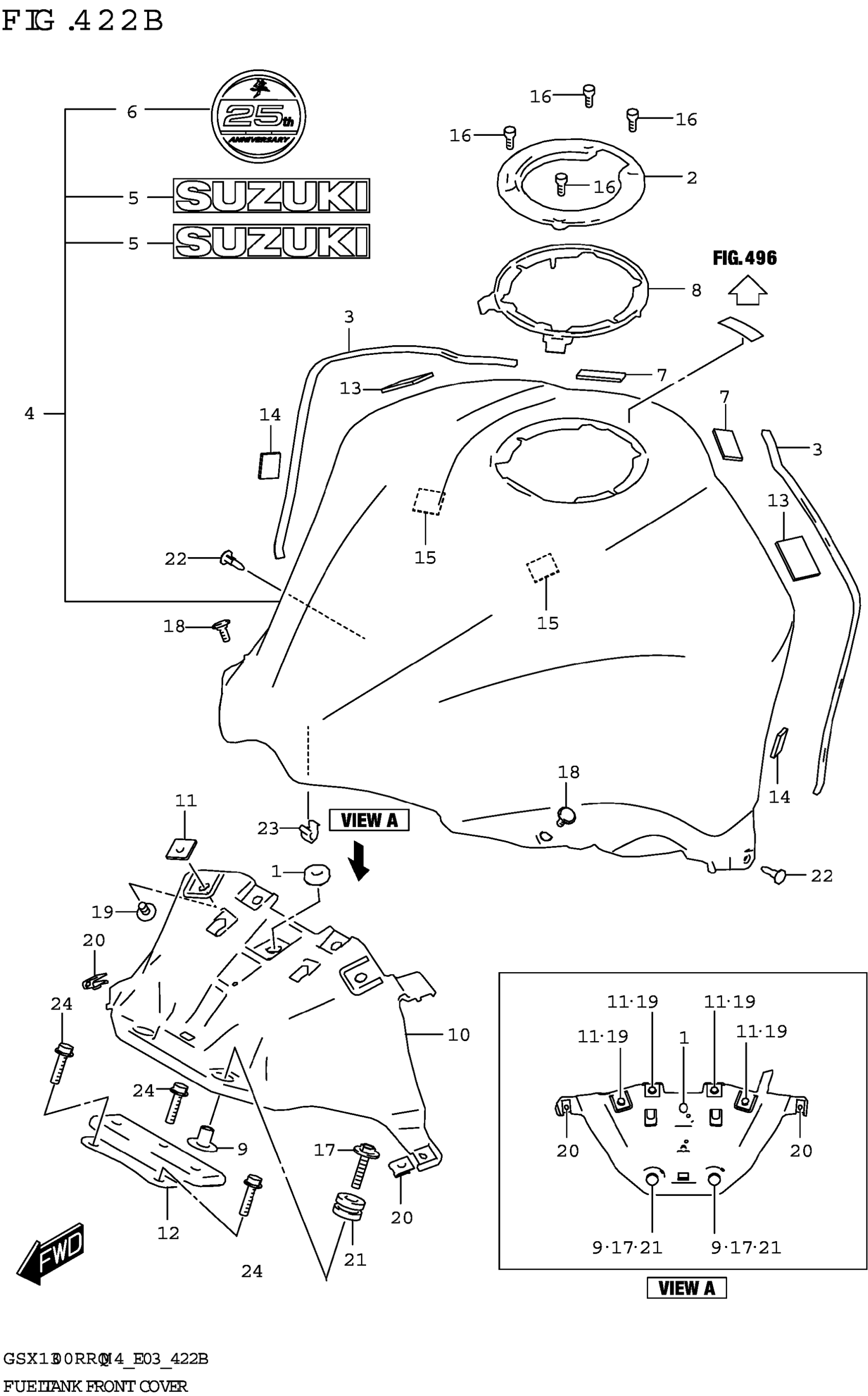

Suzuki GSX1300RRQM4 (2024) FUEL TANK FRONT COVER (E03,E28) Diagram
