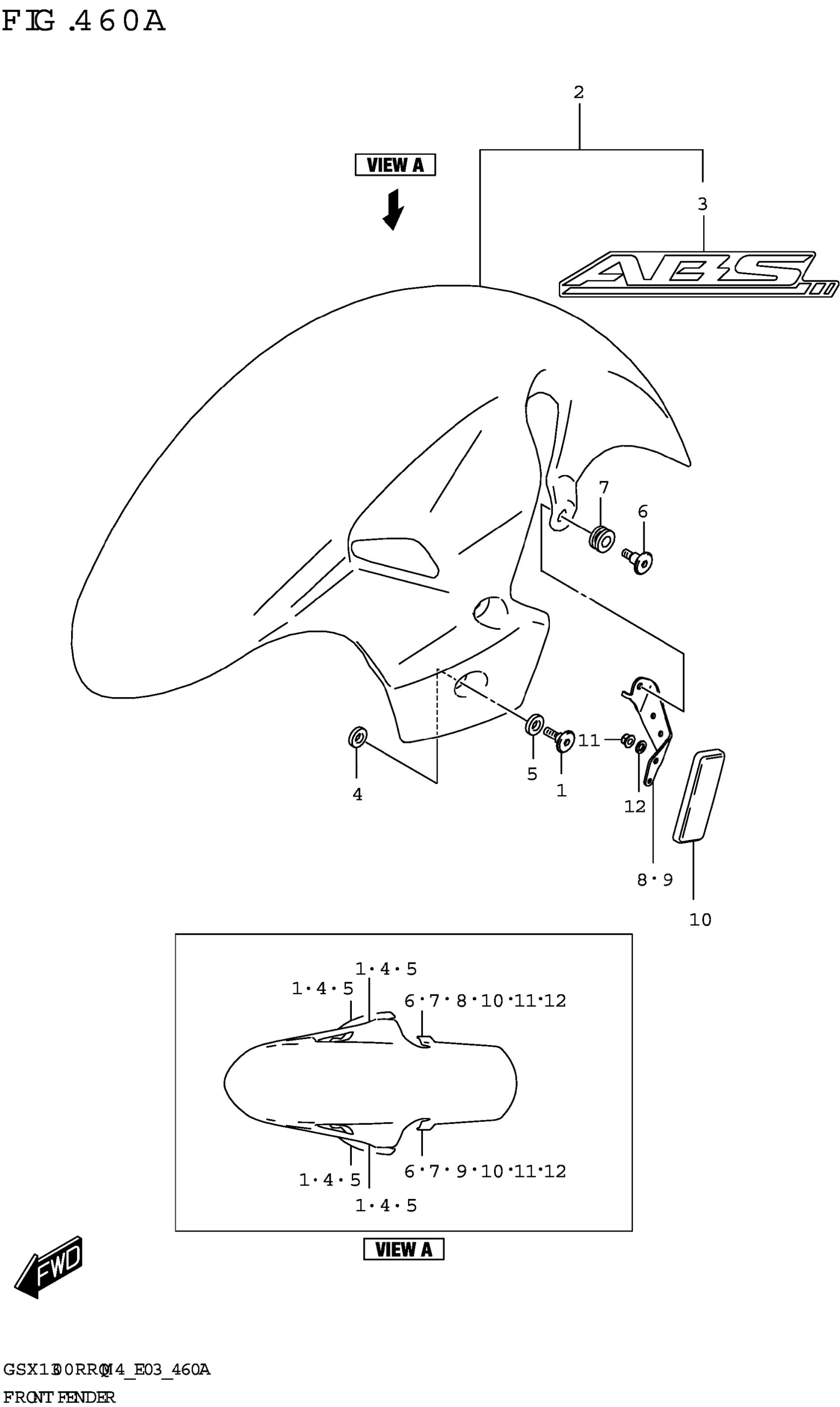

Suzuki GSX1300RRQM4 (2024) FRONT FENDER Diagram

#

Description
Price

1

BOLT,SEAT (6X20)

45241-17K00

$3.07

2

FENDER,FRONT (BLACK)

53110-10L00-YVB

$191.35

3

.EMBLEM,ABS (GRAY)

68151-44G01-1ZY

$9.03

4

.TAPE, FR FENDER

53121-28K00

$3.38

5

WASHER

53121-33E00

$3.14

6

SCREW (6X20)

09139-06236

$3.57

7

CUSHION (9X18X9.5)

09320-09016

$1.97

8

BRACKET,FRONT SIDE RR,R

47451-10L10

$12.52

9

BRACKET,FRONT SIDE RR,L

47455-10L10

$12.52

10

REFLEX REFLECTOR ASSY,FR SIDE

35950-43440

$13.22

11

NUT

08319-3105B

$3.25

12

WASHER,LOCK

08321-0105B

$3.08
