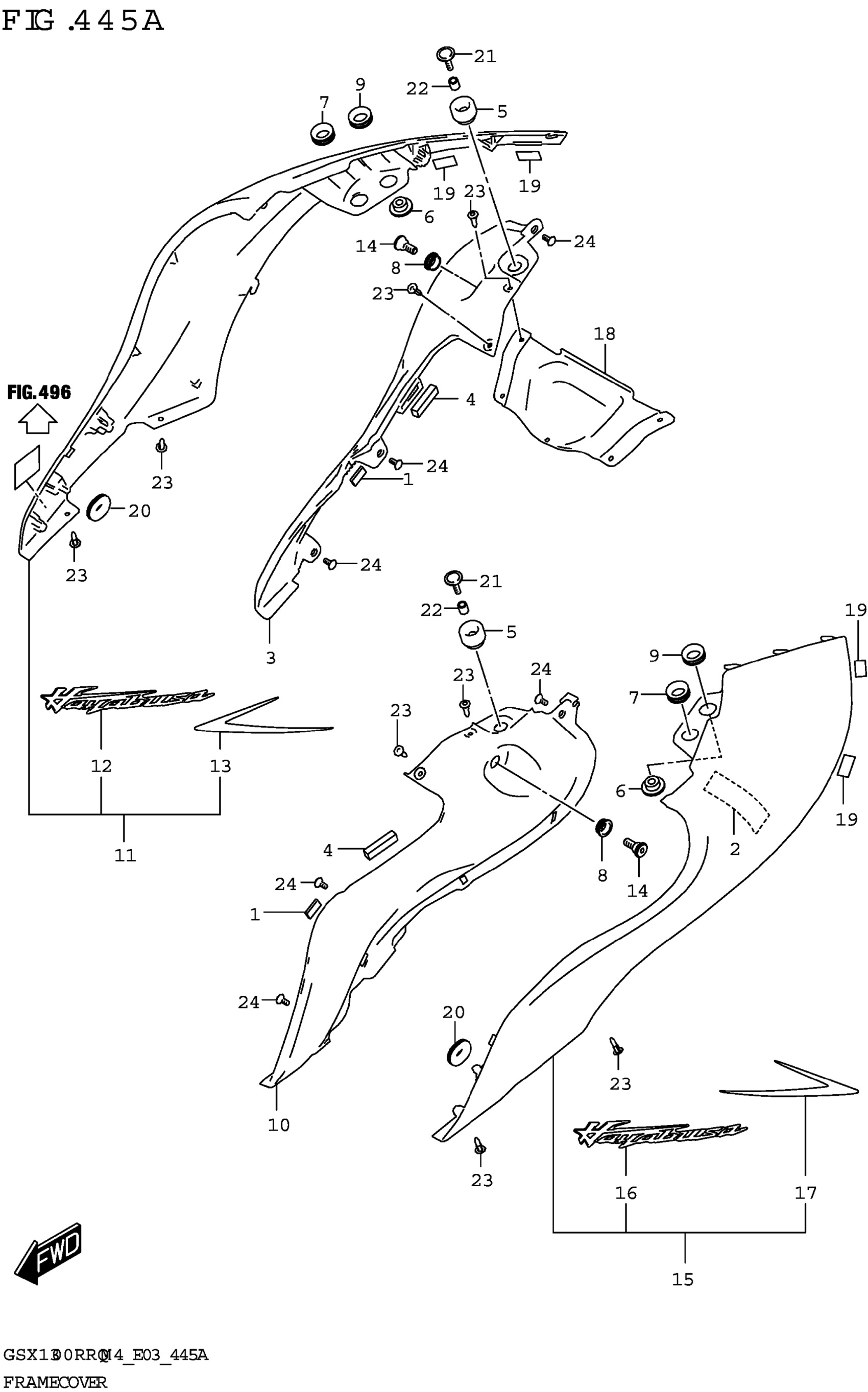

Suzuki GSX1300RRQM4 (2024) FRAME COVER Diagram

#

Description
Price

1

CUSHION (11X20X3)

33652-22D00

$1.88

2

PROTECTOR (80X80X2) This part replaces 33652-34000.

33652-07D00

$5.41

3

COVER,FRAME,R (ORANGE)

47111-10L00-QRE

$134.78

4

CUSHION,FRAME COVER NO.2

47112-10L00

$0.89

5

CUSHION,FRAME COVER UP

47115-16G01

$3.32

6

WASHER,FRAME COVER

47190-24F21

$9.79

7

CUSHION (16X26X8)

47191-24F00

$5.09

8

CUSHION,FRAME COVER CTR

47191-24F20

$6.91

9

CUSHION,FRAME COVER UP RR RR

47191-24F30

$7.12

10

COVER,FRAME,L (ORANGE)

47211-10L00-QRE

$134.78

11

COVER,FRAME REAR,R (BLACK)

47320-10L10-YVB

$143.32

12

.EMBLEM,FRAME COVER,R (ORANGE | BLACK)

68131-10L00-B9E

$12.48

13

.TAPE,FRAME COVER,R (BLACK,RE | )

68135-10L00-AV4

$25.12

14

BOLT,FRAME COVER REAR

47323-10L00

$3.57

15

COVER,FRAME REAR,L (BLACK)

47330-10L10-YVB

$138.72

16

.EMBLEM,FRAME COVER,L (ORANGE | BLACK)

68141-10L00-B9E

$12.48

17

.TAPE,FRAME COVER,L (BLACK,RE | )

68145-10L00-AV4

$25.12

18

LID,FRAME COVER

47411-10L00

$24.38

19

TAPE (6X25X0.13)

94443-06G00

$3.11

20

CUSHION

94478-14J00

$5.66

21

SCREW

09136-06126

$3.42

22

SPACER (6.5X10X11)

09180-06288

$2.10

23

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

24

SCREW

03541-0512A

$1.41
