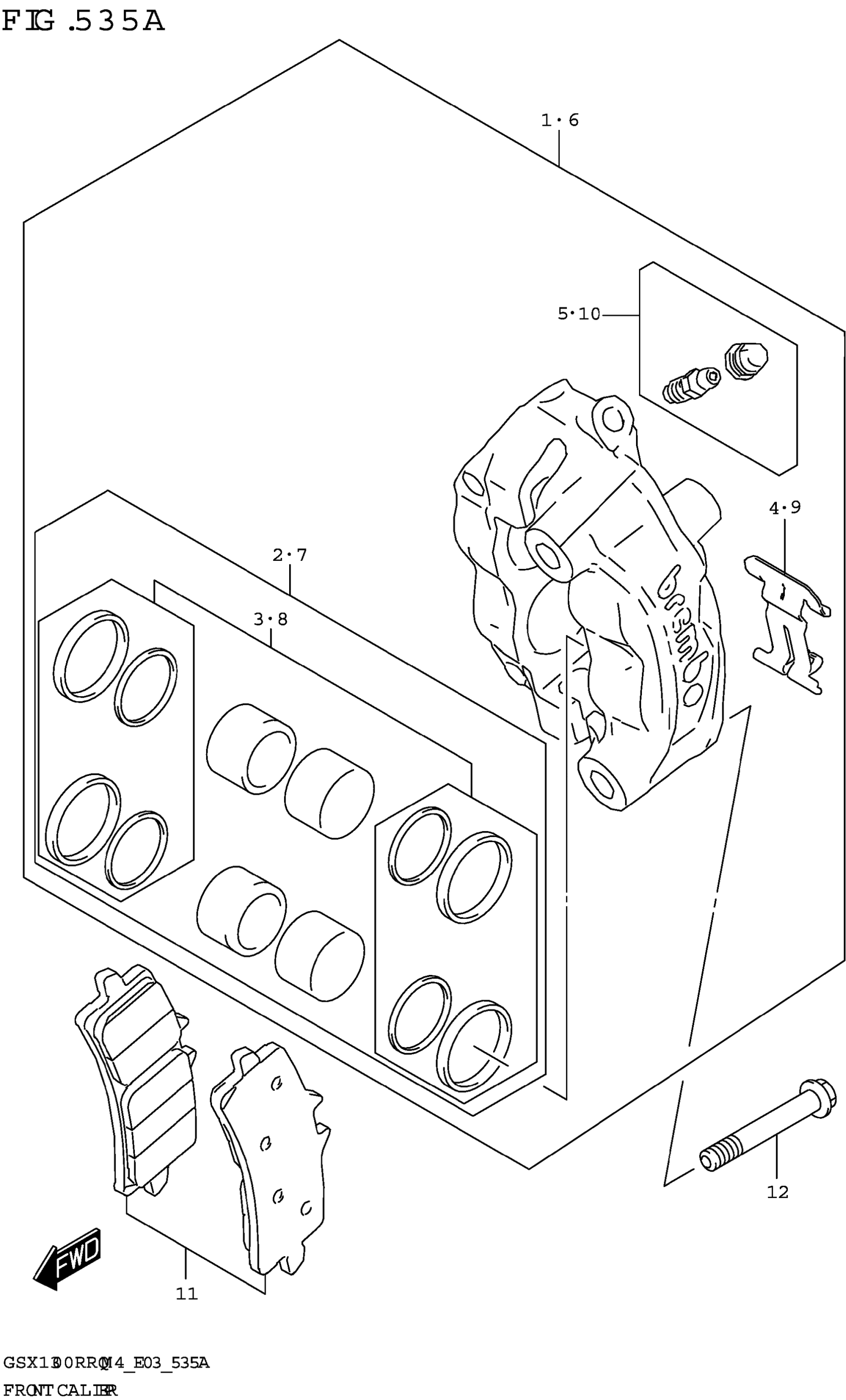

Suzuki GSX1300RRQM4 (2024) FRONT CALIPER Diagram

#

Description

Price

1

CALIPER ASSY,FRONT,R

59100-10L00-999

$466.92

2

.PISTON SET

59100-10820

$80.23

3

..SEAL SET

59100-10830

$47.92

4

.SPRING

59151-14J00

$23.43

5

.BLEEDER SET

59100-14840

$25.21

6

CALIPER ASSY,FRONT,L

59300-10L00-999

$466.92

7

.PISTON SET

59100-10820

$80.23

8

..SEAL SET

59100-10830

$47.92

9

.SPRING

59151-14J00

$23.43

10

.BLEEDER SET

59100-14840

$25.21

11

PAD SET (T:4.0)

59100-14860

$149.78

12

BOLT,FRONT CALIPER

59199-10L00

$5.86
