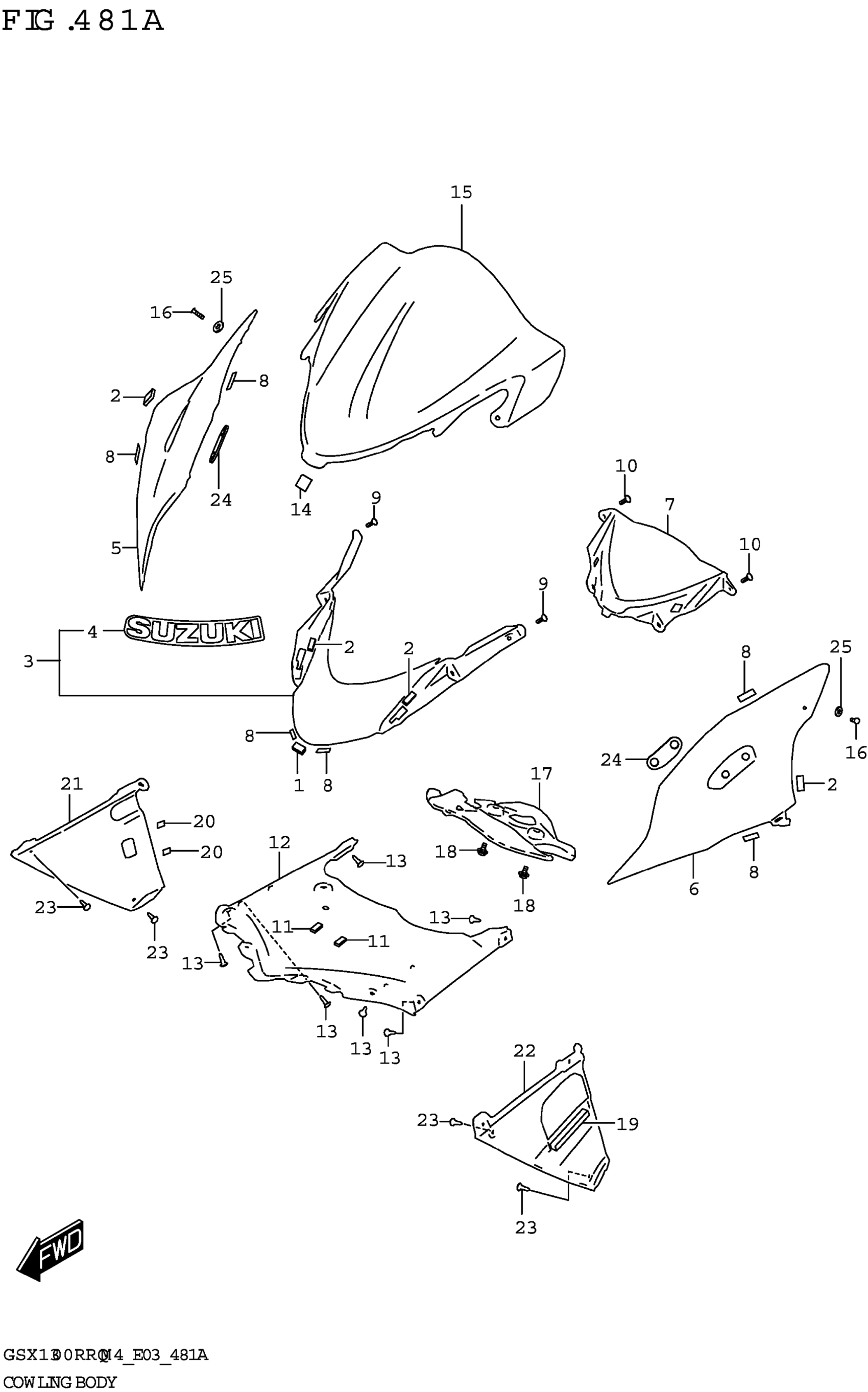

Suzuki GSX1300RRQM4 (2024) COWLING BODY Diagram

#

Description
Price

1

FASTENER,COWLING (20X15X0.8)

44572-37H00

$9.83

2

PAD (8X20X2)

73415-70A00

$1.56

3

COWLING,BODY (ORANGE)

94410-10L10-QRE

$138.17

4

.EMBLEM,"SUZUKI" (BLACK)

68281-24F11-019

$10.89

5

COWLING,BODY,R (ORANGE)

94412-10L00-QRE

$145.03

6

COWLING,BODY,L (ORANGE)

94413-10L00-QRE

$145.03

7

PANEL,METER FRONT

94414-10L00

$33.82

8

TAPE (6X25X0.13)

94443-06G00

$3.25

9

SCREW

03541-0516A

$1.49

10

SCREW

03541-0516A

$1.49

11

PAD (8X20X2)

73415-70A00

$1.56

12

COVER,BODY COWL

94419-10L00

$36.90

13

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

14

.CUSHION (20X20X1)

47123-17K00

$4.34

15

WINDSCREEN

94611-10L00

$231.42

16

SCREW,WINDSCREEN

09139-05104

$2.19

17

COVER,LWR BRACKET

94458-15H10

$17.43

18

BOLT (6X12)

09111-06107

$2.60

19

CUSHION, SEAT TAIL COVER CTR

45518-16G00

$6.47

20

PAD (8X20X2)

73415-70A00

$1.56

21

COWLING,UNDER INNER,R

94461-10L00

$17.08

22

COWLING,UNDER INNER,L

94462-10L00

$20.08

23

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

24

CUSHION,BRACE COWLING

94576-10L00

$10.12

25

WASHER (5.2X11.0X1.0)

09161-05010

$2.45
