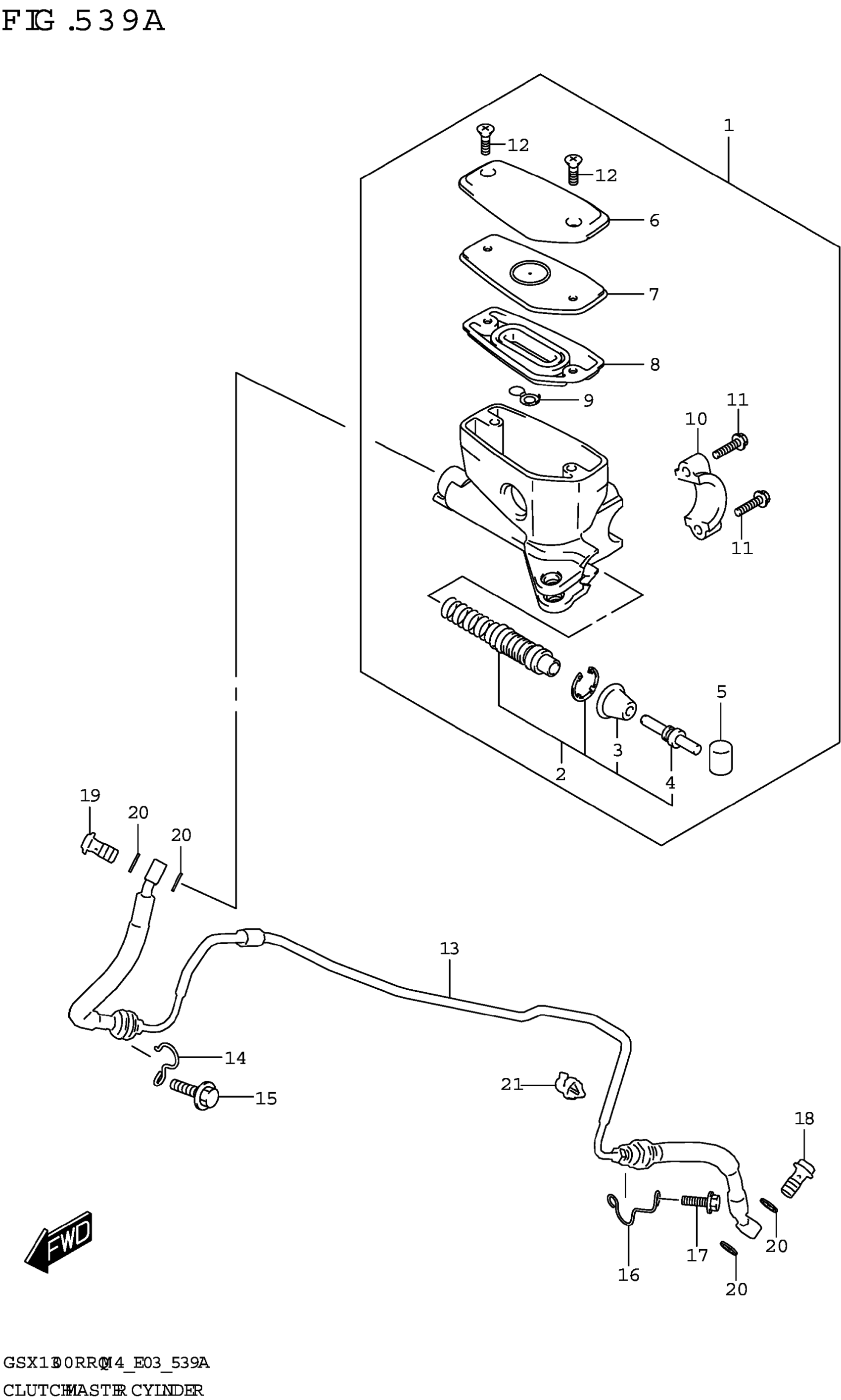

Suzuki GSX1300RRQM4 (2024) CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,CLUTCH MASTER

59800-10L00

$340.02

2

.PISTON CUP SET

59800-10800

$38.15

3

..BOOT

59866-23H00

$7.97

4

..ROD,PUSH

59871-23H00

$9.52

5

.BUSH

59892-08A00

$5.05

6

.CAP

59869-23H10

$32.85

7

.PLATE

57438-23H00

$6.48

8

.DIAPHRAGM

59867-23H00

$12.78

9

.PROTECTOR

59664-32F00

$11.68

10

.HOLDER

59671-36500

$12.21

11

.SCREW

59675-10L00

$3.70

12

.SCREW

69689-49300

$1.91

13

HOSE ASSY,CLUTCH

59900-10L00

$114.55

14

CLAMP,CLUTCH HOSE NO.1

59915-24F00

$11.37

15

BOLT

01547-0616B

$2.45

16

CLAMP,CLUTCH HOSE NO.2

59921-24F00

$12.40

17

BOLT

01547-0616A

$2.03

18

UNION (10X1.25X22)

09360-10062

$6.43

19

UNION (10X1.25X22)

09360-10053

$8.92

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

CLAMP

09403-11321

$3.93
