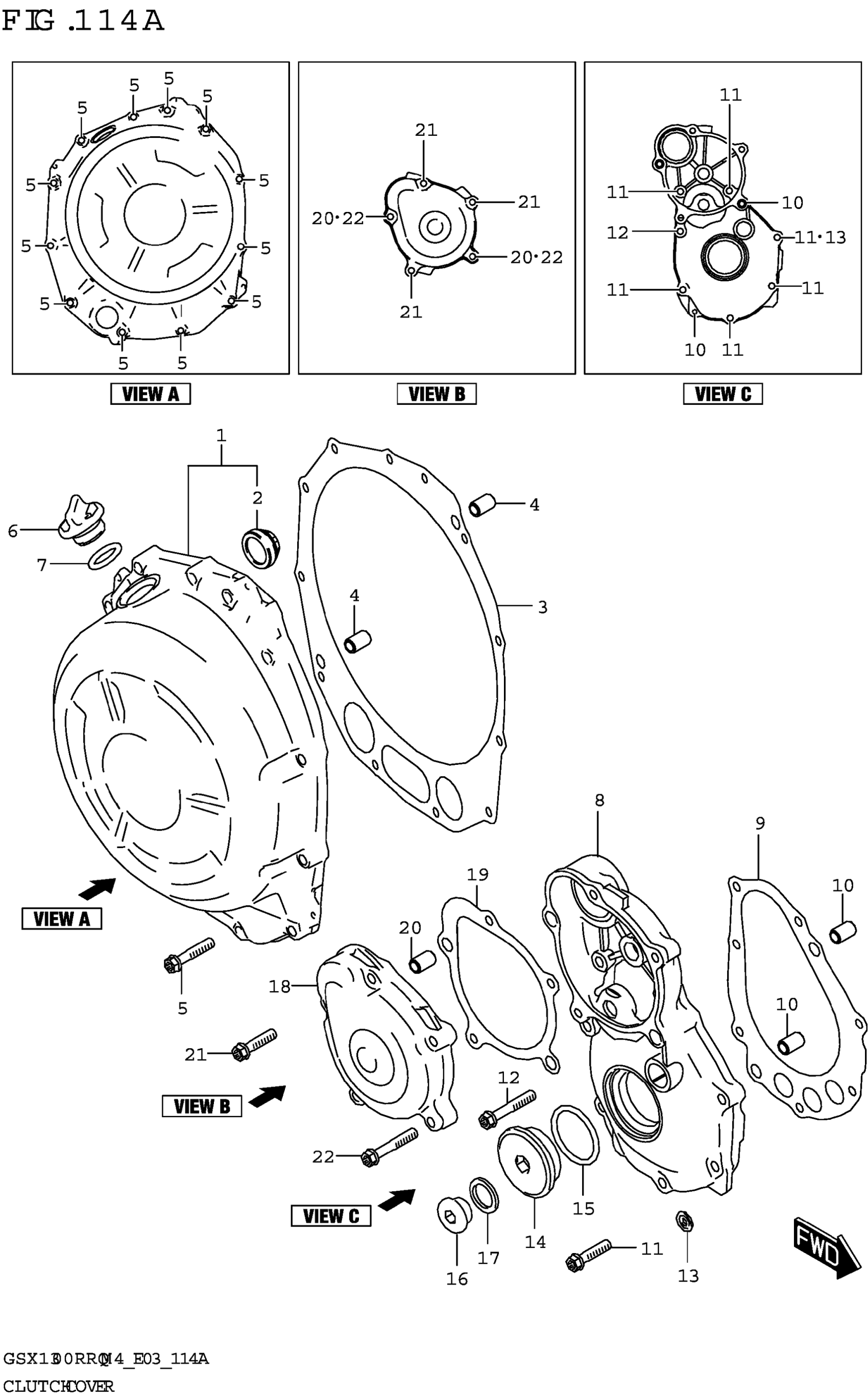

Suzuki GSX1300RRQM4 (2024) CLUTCH COVER Diagram

#

Description
Price

1

COVER,CLUTCH

11340-10L00

$198.27

2

.LENS,OIL LEVEL CHECK

11971-33210

$16.66

3

.GASKET,CL COVER

11482-24F00

$17.17

4

PIN

04211-09189

$1.64

5

BOLT (6X30)

09103-06529

$1.83

6

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

7

O-RING (D:3.1,ID:16.8)

09280-17003

$1.64

8

COVER,STARTER CLUTCH

11380-24F20

$208.63

9

.GASKET,STARTER CLUTCH COVER

11491-24F01

$9.06

10

PIN (8.5X18X2.3)

04211-09149

$1.64

11

BOLT (6X25)

09103-06528

$1.78

12

BOLT (L:35)

09103-06530

$1.68

13

GASKET (5.8X13X1.2)

09168-06023

$2.01

14

PLUG (36X10)

09259-36021

$12.45

15

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.24

16

PLUG (16X8)

09248-16012

$4.19

17

GASKET (16X22X2)

09168-16002

$1.89

18

CAP,STARTER IDLE GEAR

11382-24F20

$69.44

19

.GASKET,START IDLE GEAR CAP

11492-24F00

$6.61

20

PIN (8.5X18X2.3)

04211-09149

$1.64

21

BOLT (6X25)

09103-06528

$1.78

22

BOLT (L:35)

09103-06530

$1.68
