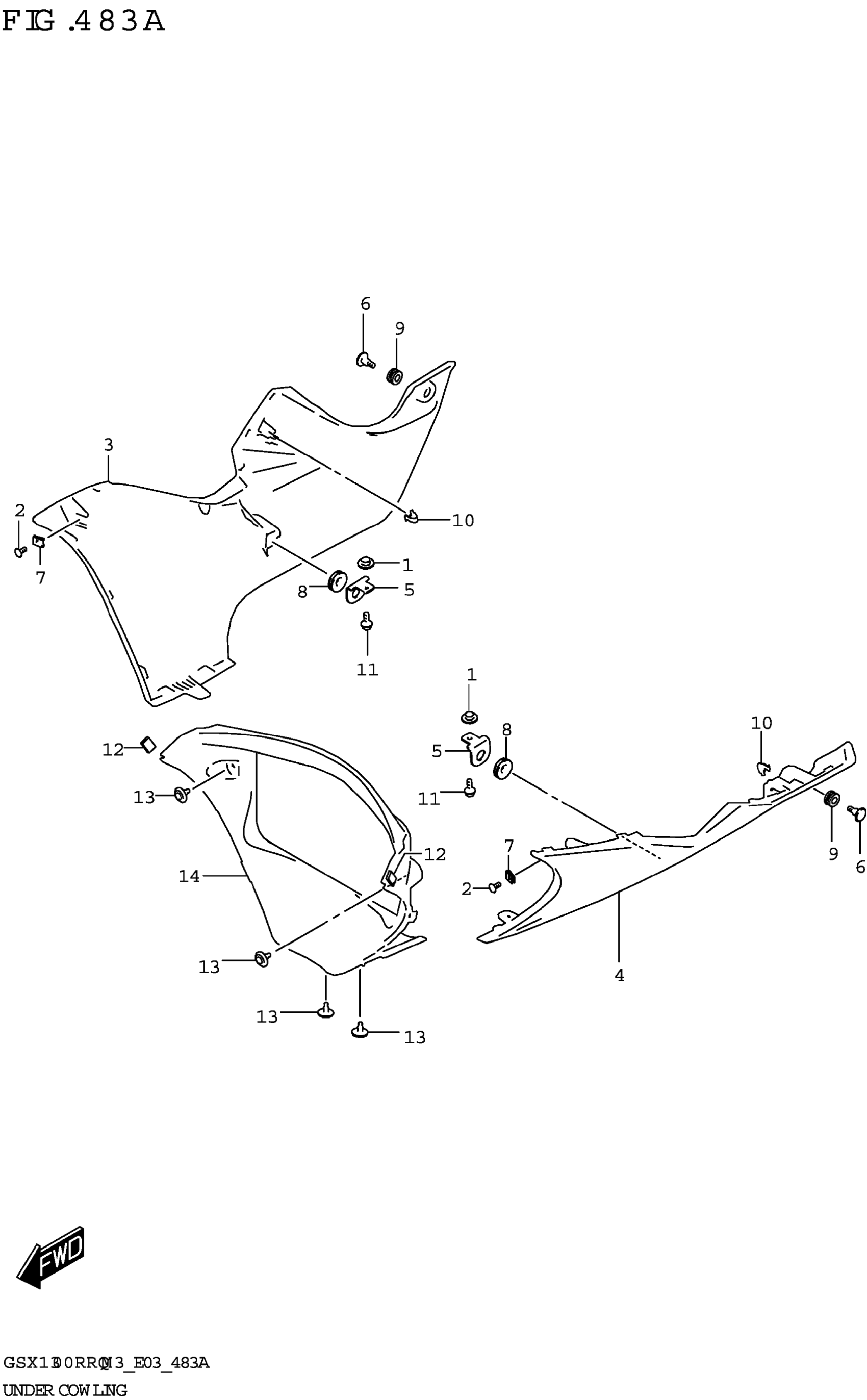

Suzuki GSX1300RRQM3 (2023) UNDER COWLING Diagram

#

Description
Price

1

NUT (M6)

09159-06086

$2.12

2

SCREW

03541-0512A

$1.37

3-1

COWLING,UNDER,R (WHITE) | BODY COLOR:JWN

94473-10L00-YUH

$241.52

3-2

COWLING,UNDER,R (BLACK) | BODY COLOR:KGL

94473-10L00-YVB

$164.92

3-3

COWLING,UNDER,R (GRAY) | BODY COLOR:CJH

94473-10L00-YLF

$221.12

4-1

COWLING,UNDER,L (WHITE) | BODY COLOR:JWN

94483-10L00-YUH

$242.70

4-2

COWLING,UNDER,L (BLACK) | BODY COLOR:KGL

94483-10L00-YVB

$231.45

4-3

COWLING,UNDER,L (GRAY) | BODY COLOR:CJH

94483-10L00-YLF

$221.12

5

BRACKET,UNDER COWL

94541-10L00

$17.02

6

SCREW (6X20)

09139-06206

$2.99

7

NUT (M5)

09148-05038

$1.97

8

CUSHION (8X26X7)

09320-08028

$2.80

9

CUSHION (9X18X9.5)

09320-09016

$1.97

10

CLIP (10.5X14.3)

09409-08326

$2.45

11

BOLT

01550-0616A

$1.97

12

PAD (8X20X2)

73415-70A00

$1.50

13

CLIP

94479-35F00

$5.14

14

COWLING,UNDER CTR

94491-10L00

$69.63
