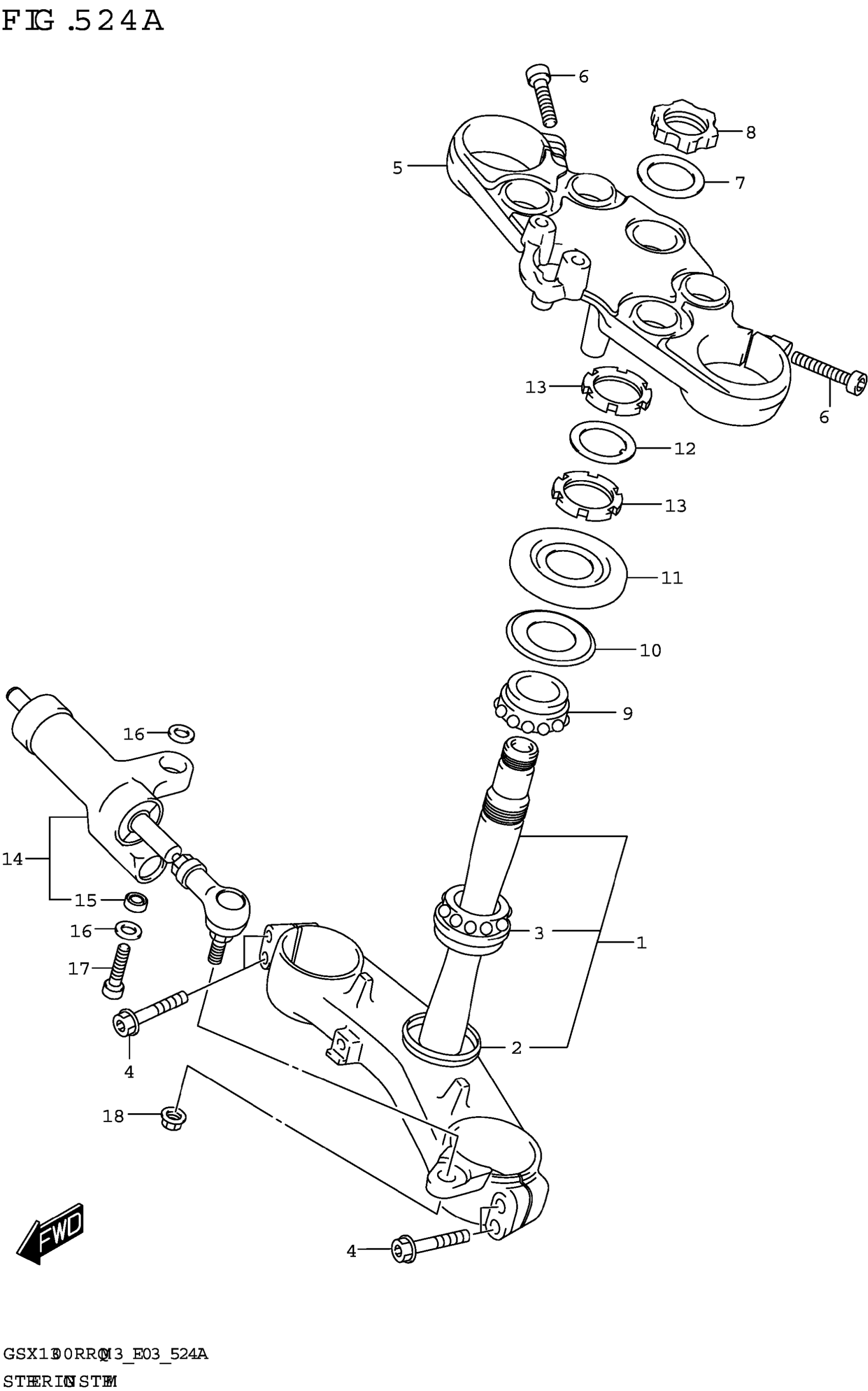

Suzuki GSX1300RRQM3 (2023) STEERING STEM Diagram

#

Description
Price

1

BRACKET,FR FORK UNDER

51410-24F50

$1,050.42

2

.SEAL,STEERING LWR (30.1X56X4 | 4)

51644-12C00

$9.44

3

.BEARING (30X55X17)

09267-30010

$48.11

4

BOLT,AXLE STOPPER (8X40)

51166-01D80

Unavailable

5

BRACKET,FR FORK UPR

51311-24F50

$437.57

6

BOLT

51328-24F50

$9.17

7

WASHER

51356-24F50

$6.52

8

NUT

51353-06L00

$32.15

9

.BEARING (30X55X17)

09267-30010

$48.11

10

.SEAL,STEERING LWR (30.1X56X4 | )

51644-12C00

$9.44

11

COVER,STEERING UPR

51643-41G00

$8.71

12

WASHER,STEERING STEM

51641-33E00

$6.20

13

NUT,STEERING STEM

51631-33E00

$23.64

14

DAMPER ASSY,STEERING

51750-15H00

$778.83

15

.BEARING (8X17.5X11)

09269-08003

$51.13

16

SEAL,PILLOW BALL,DUST

64339-14101

$7.95

17

NUT

08319-3108A

$2.32

18

BOLT (8X35)

09103-08391

$2.50
