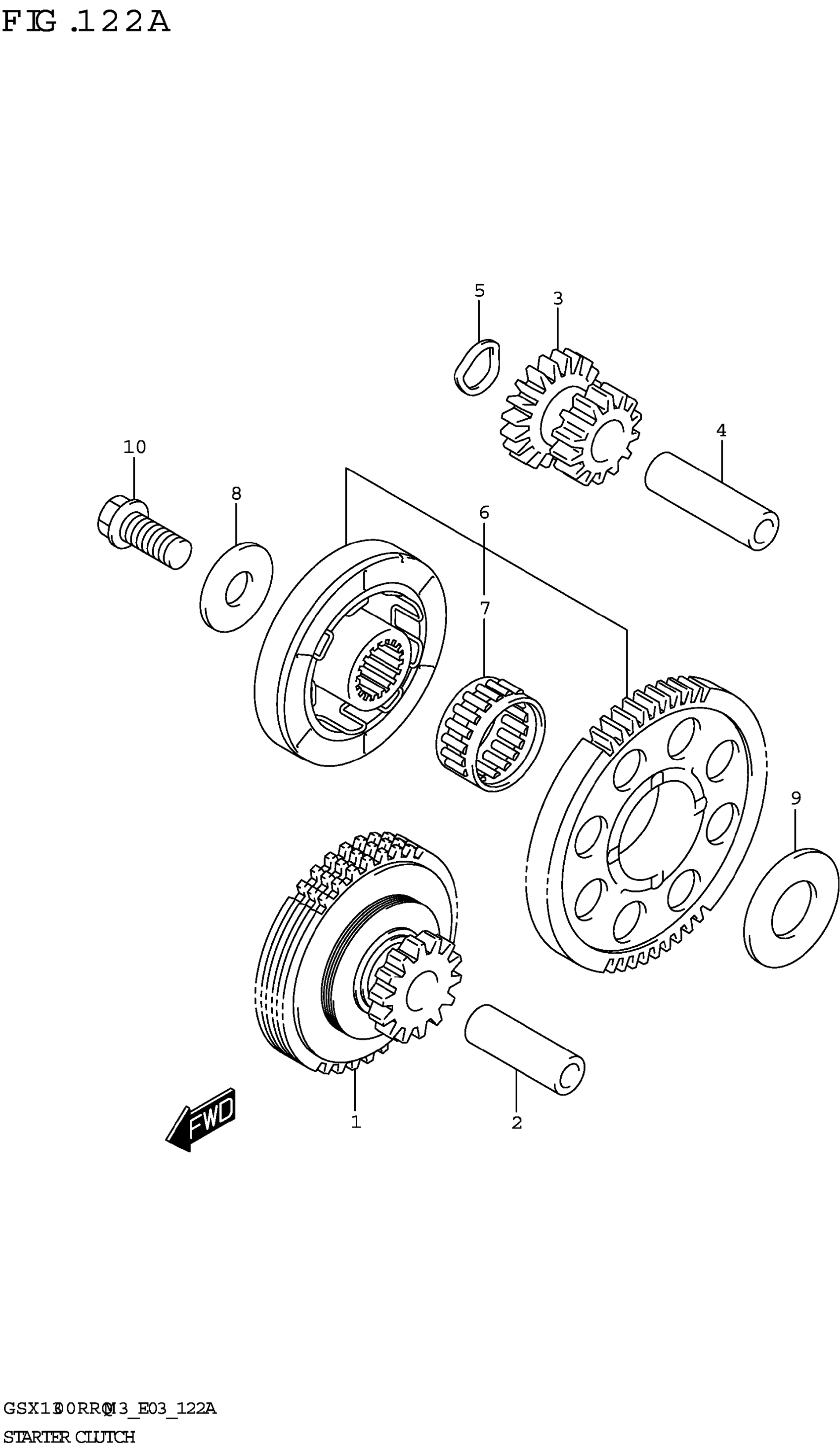

Suzuki GSX1300RRQM3 (2023) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY,START ID GR NO.1 | (NT:14)

12600-24F00

$272.72

2

PIN,STARTER IDLE GEAR NO.1

12615-24F00

$10.50

3

GEAR,STARTER IDLE NO.2 (NT:16 | 14)

12612-24F00

$64.53

4

PIN

12151-05200

$12.50

5

WASHER

09164-14008

$2.01

6

CLUTCH SET,STARTER

12600-24870

$278.53

7

.BEARING

09263-28040

$32.08

8

WASHER

08211-10285

$3.49

9

WASHER

08211-20403

$4.32

10

BOLT (10X23)

09103-10189

$4.04
