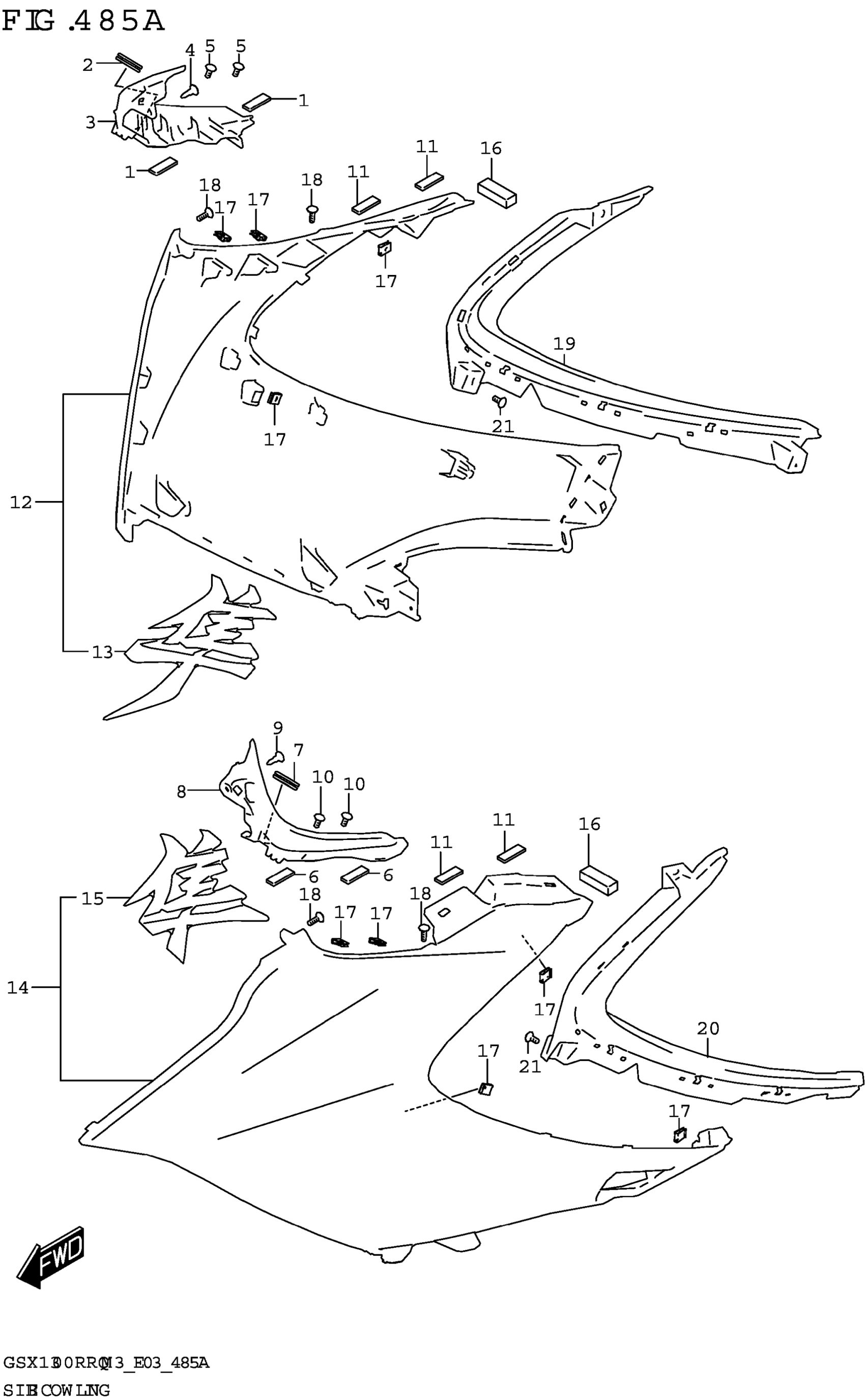

Suzuki GSX1300RRQM3 (2023) SIDE COWLING Diagram

#

Description
Price

1

PAD (8X20X2)

73415-70A00

$1.56

2

CUSHION

94478-14J00

$5.92

3

PANEL,METER FR RH

94642-10L00

$27.03

4

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

5

SCREW

03541-0512A

$1.49

6

PAD (8X20X2)

73415-70A00

$1.56

7

CUSHION

94478-14J00

$5.92

8

PANEL,METER FR LH

94643-10L00

$22.99

9

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

10

SCREW

03541-0512A

$1.49

11

PAD (8X20X2)

73415-70A00

$1.56

12-1

COWLING,SIDE FRONT,R (WHITE) | BODY COLOR:JWN

94470-10L00-YUH

$298.98

12-2

COWLING,SIDE FRONT,R (BLACK) | BODY COLOR:KGL

94470-10L00-YVB

$252.89

12-3

COWLING,SIDE FRONT,R (GRAY) | BODY COLOR:CJH

94470-10L00-YLF

$272.38

13-1

.EMBLEM,COWLING SIDE,R (GRAY, | HITE) BODY COLOR:JWN

68181-10L00-B7C

$57.23

13-2

.EMBLEM,COWLING SIDE,R (GRAY, | LACK) BODY COLOR:KGL

68181-10L00-AA3

$57.23

13-3

EMBLEM,COWLING | GRAY) BODY COLOR:CJH This part replaces 68181-10L00-HGU.

68181-10L01-HGU

$44.15

14-1

COWLING,SIDE FRONT,L (WHITE) | BODY COLOR:JWN

94480-10L00-YUH

$297.52

14-2

COWLING,SIDE FRONT,L (BLACK) | BODY COLOR:KGL

94480-10L00-YVB

$252.89

14-3

COWLING,SIDE FRONT,L (GRAY) | BODY COLOR:CJH

94480-10L00-YLF

$272.38

15-1

.EMBLEM,COWLING SIDE,L (GRAY, | HITE) BODY COLOR:JWN

68191-10L00-B7C

$57.23

15-2

.EMBLEM,COWLING SIDE,L (GRAY, | LACK) BODY COLOR:KGL

68191-10L00-AA3

$48.65

15-3

.EMBLEM,COWLING SIDE,L (BLACK | GRAY) BODY COLOR:CJH

68191-10L00-HGU

$52.18

16

CUSHION,TANK COVER FR (10X30X | )

44277-18K00

$2.90

17

NUT (M5)

09148-05038

$1.97

18

SCREW

03541-0516A

$1.49

19

COWLING,SIDE REAR,R

94472-10L00

$125.78

20

COWLING,SIDE REAR,L

94482-10L00

$125.78

21

SCREW

03541-0512A

$1.49
