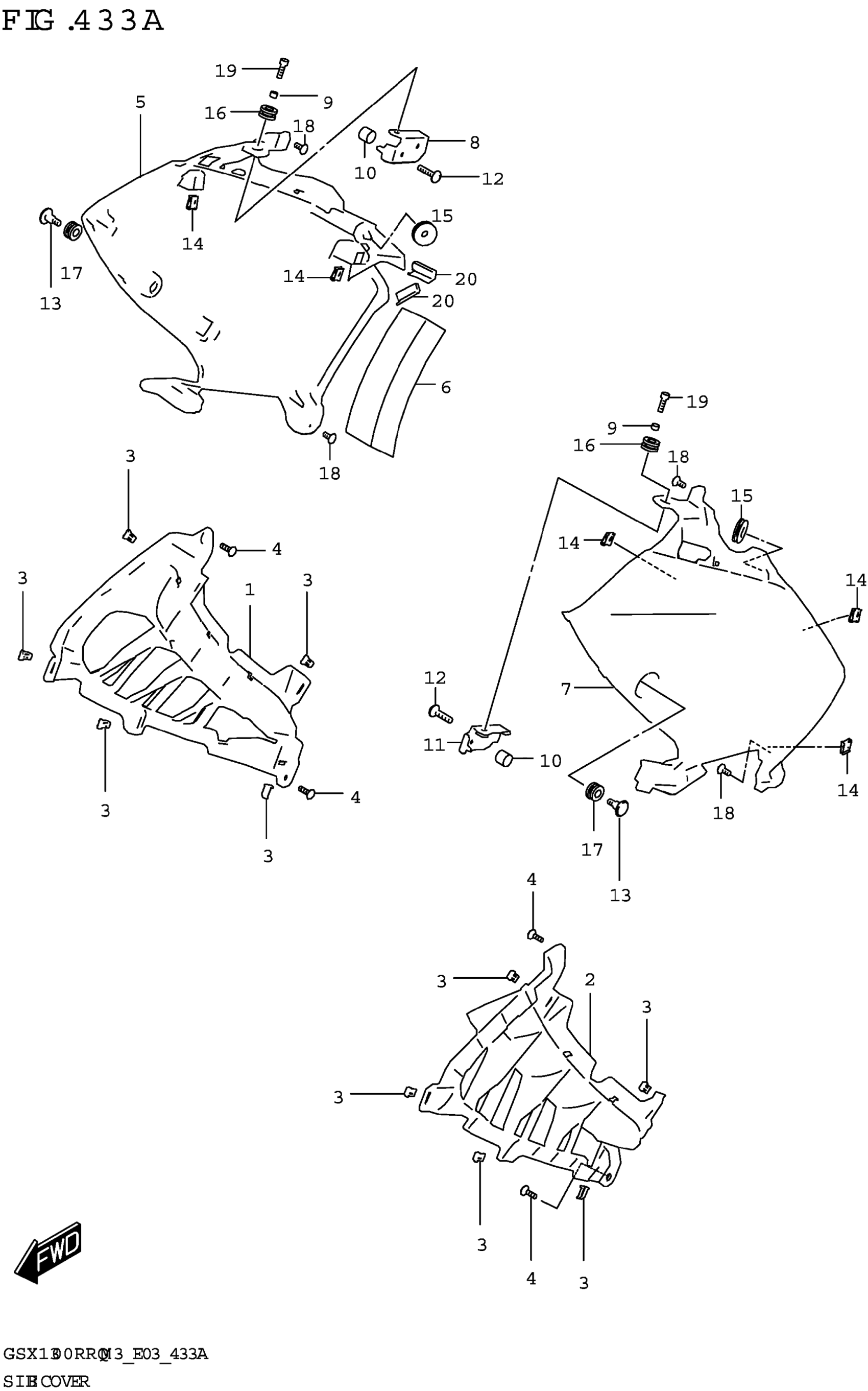

Suzuki GSX1300RRQM3 (2023) SIDE COVER Diagram

#

Description
Price

1-1

COVER,SIDE FRONT,R (BLUE) | BODY COLOR:JWN

94474-10L00-YKY

$149.80

1-2

COVER,SIDE FRONT,R (BLACK) | BODY COLOR:KGL

94474-10L00-YKV

$149.80

1-3

COVER,SIDE FRONT,R (RED) | BODY COLOR:CJH

94474-10L00-YYG

$163.63

2-1

COVER,SIDE FRONT,L (BLUE) | BODY COLOR:JWN

94484-10L00-YKY

$149.80

2-2

COVER,SIDE FRONT,L (BLACK) | BODY COLOR:KGL

94484-10L00-YKV

$149.80

2-3

COVER,SIDE FRONT,L (RED) | BODY COLOR:CJH

94484-10L00-YYG

$164.45

3

CLIP

09409-08012

$2.54

4

SCREW

03541-0516B

$1.77

5-1

COVER,SIDE,R (WHITE) | BODY COLOR:JWN

94475-10L00-YUH

$254.83

5-2

COVER,SIDE,R (BLACK) | BODY COLOR:KGL

94475-10L00-YVB

$174.01

5-3

COVER,SIDE,R (GRAY) | BODY COLOR:CJH

94475-10L00-YLF

$261.53

6

CUSHION,SIDE COVER

94479-10L00

$8.91

7-1

COVER,SIDE,L (WHITE) | BODY COLOR:JWN

94485-10L00-YUH

$254.83

7-2

COVER,SIDE,L (BLACK) | BODY COLOR:KGL

94485-10L00-YVB

$173.16

7-3

COVER,SIDE,L (GRAY) | BODY COLOR:CJH

94485-10L00-YLF

$250.63

8

BRACKET,SIDE COVER RH

94570-10L00

$12.33

9

SPACER,SIDE COVER

94572-10L00

$5.99

10

SPACER (6.5X11.5X12)

09180-06120

$2.31

11

BRACKET,SIDE COVER LH

94580-10L00

$12.33

12

BOLT (6X25)

09139-06196

$2.36

13

SCREW (6X20)

09139-06206

$2.99

14

NUT (M5)

09148-05038

$1.97

15

CUSHION (8X26X7)

09320-08028

$2.80

16

CUSHION (9X18X9.5)

09320-09016

$1.97

17

CUSHION (9X18X9.5)

09320-09016

$1.97

18

SCREW

03541-0512A

$1.37

19

BOLT

07130-0516A

$2.51

20

MOLDING,SIDE COVER RR NO.2

94489-10L10

$6.65
