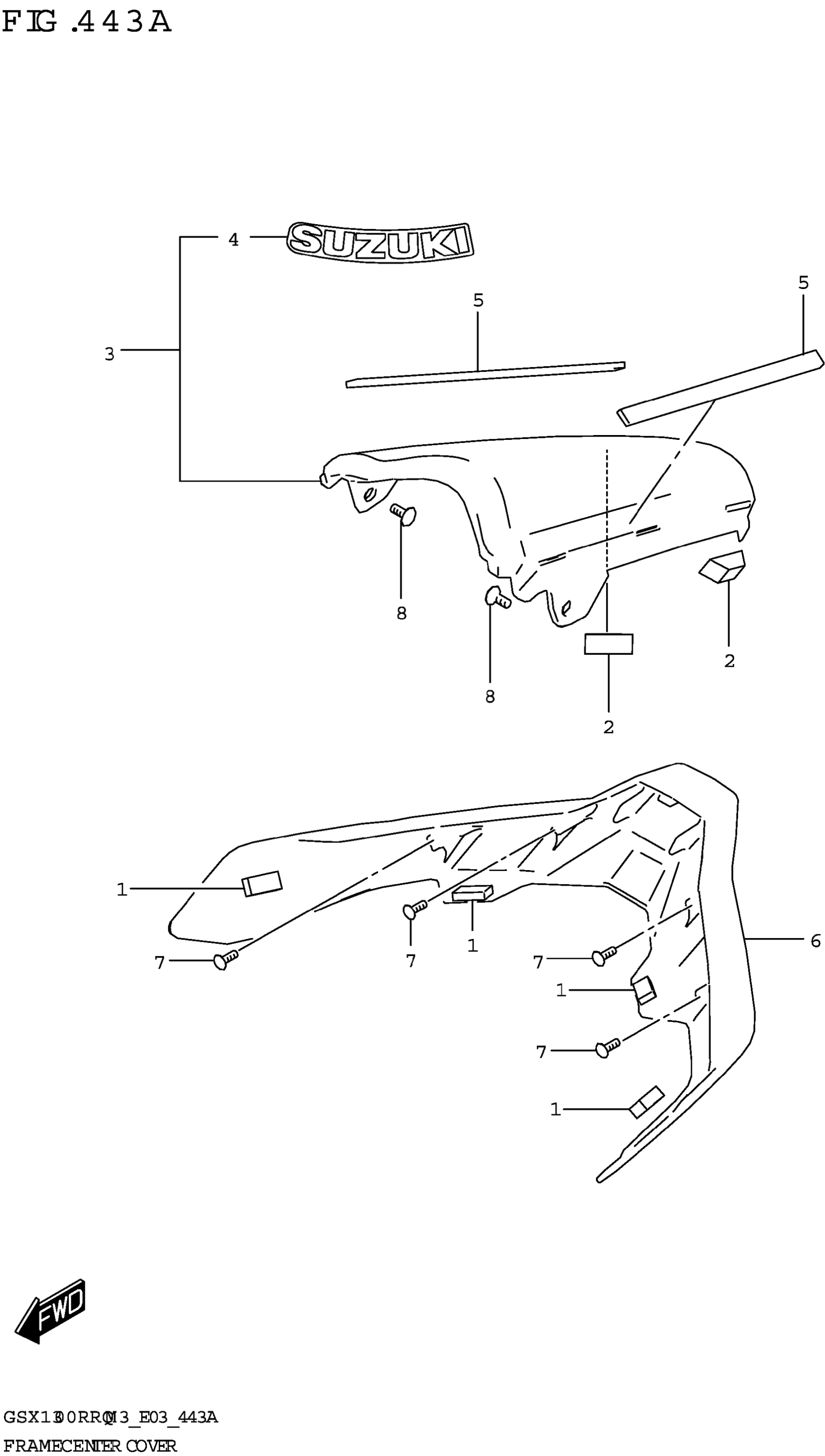

Suzuki GSX1300RRQM3 (2023) FRAME CENTER COVER Diagram

Description

Price

CUSHION,FRAME COVER UNDER

47113-10L00

$0.78

CUSHION,FRAME COVER CTR

47114-10L00

$3.08

3-1

COVER,FRAME CTR (WHITE) | BODY COLOR:JWN

47310-10L00-YUH

$106.52

3-2

COVER,FRAME CTR (BLACK) | BODY COLOR:KGL

47310-10L00-YVB

$106.52

3-3

COVER,FRAME CTR (GRAY) | BODY COLOR:CJH

47310-10L00-YLF

$99.85

4-1

.EMBLEM,"SUZUKI" (GRAY) | BODY COLOR:JWN

68641-19F01-PGZ

$9.07

4-2

.EMBLEM,SUZUKI (GRAY) | BODY COLOR:KGL

68641-19F01-YLF

$9.07

4-3

.EMBLEM,SUZUKI (BLACK) | BODY COLOR:CJH

68641-19F01-019

$7.92

CUSHION,FRAME COVER CTR

47324-10L00

$1.48

6-1

COVER,FRAME UNDER (BLUE) | BODY COLOR:JWN

47511-10L00-YKY

$223.02

6-2

COVER,FRAME UNDER (BLACK) | BODY COLOR:KGL

47511-10L00-YKV

$223.02

6-3

COVER,FRAME UNDER (RED) | BODY COLOR:CJH

47511-10L00-YYG

$244.77

SCREW

03541-0412A

$1.37

SCREW

03541-0512A

$1.37
