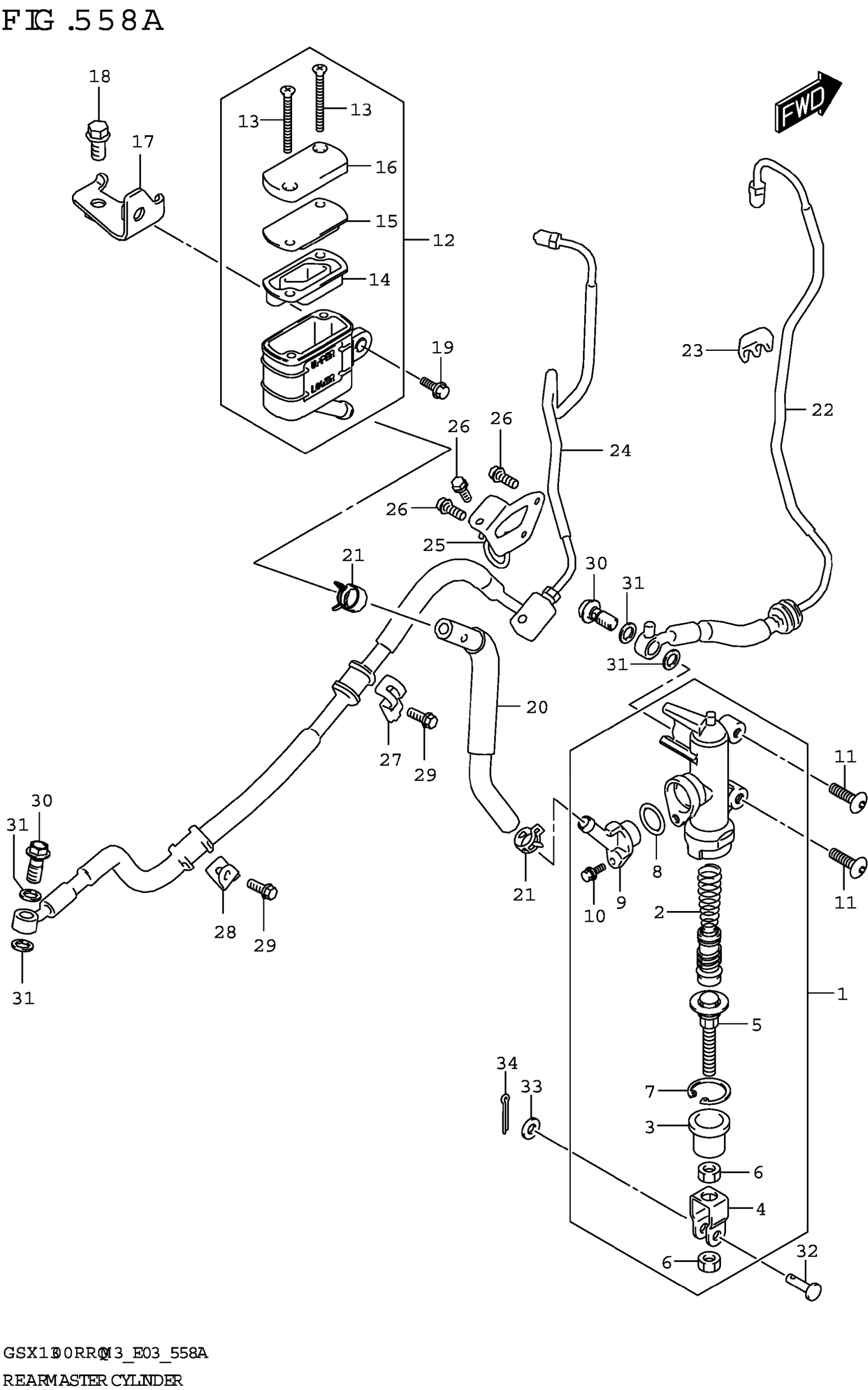

Suzuki GSX1300RRQM3 (2023) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-08J10

$151.00

2

.PISTON/CUP SET

69600-34810

$56.48

3

.BOOT

69691-04A00

$5.17

4

.YOKE

69692-47H00

$11.87

5

.PUSH ROD

69670-27A50

$40.03

6

.NUT

69693-47H00

$2.48

7

.CIRCLIP

69665-47H00

$5.02

8

.O-RING

69686-34200

$2.93

9

.CONNECTOR

69672-08J10

$8.17

10

.SCREW

02112-7412A

$2.12

11

SCREW (6X20)

09139-06028

$3.70

12

TANK ASSY,RESERVOIR

69740-06L00

$30.80

13

.SCREW

69689-01H00

$4.45

14

.DIAPHRAGM

69667-01H00

$6.30

15

.PLATE,DIAPHRAGM

69668-01H00

$5.98

16

.CAP

69669-18K00

$14.37

17

BRACKET,RR RESERVOIR TANK

69750-10L00

$10.83

18

BOLT

01547-0612A

$2.03

19

BOLT

01550-0616A

$1.97

20

HOSE,RR RESERVOIR TANK

69730-10L00

$18.58

21

CLIP (ID:12)

09401-12404

$2.34

22

HOSE ASSY,RR BK MASTER TO UNI

69200-10L00

$67.12

23

CLAMP

09403-06324

Unavailable

24

HOSE ASSY,UNIT TO RR BK CLPR

69400-10L00

$90.57

25

CLAMP,RR BRAKE HOSE

69260-15H00

Unavailable

26

BOLT

01547-0616A

$2.03

27

CLAMP,RR BRAKE HOSE NO.1

69275-15H00

$5.07

28

CLAMP,REAR BRAKE HOSE

69268-15H10

$7.83

29

BOLT

01547-0616B

$2.45

30

UNION This part replaces 09360-10042.

09360-10062

$6.43

31

WASHER (10X15X1.5)

09161-10009

$1.84

32

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

33

WASHER

08322-0106A

$1.84

34

PIN

04111-2015A

$1.49
