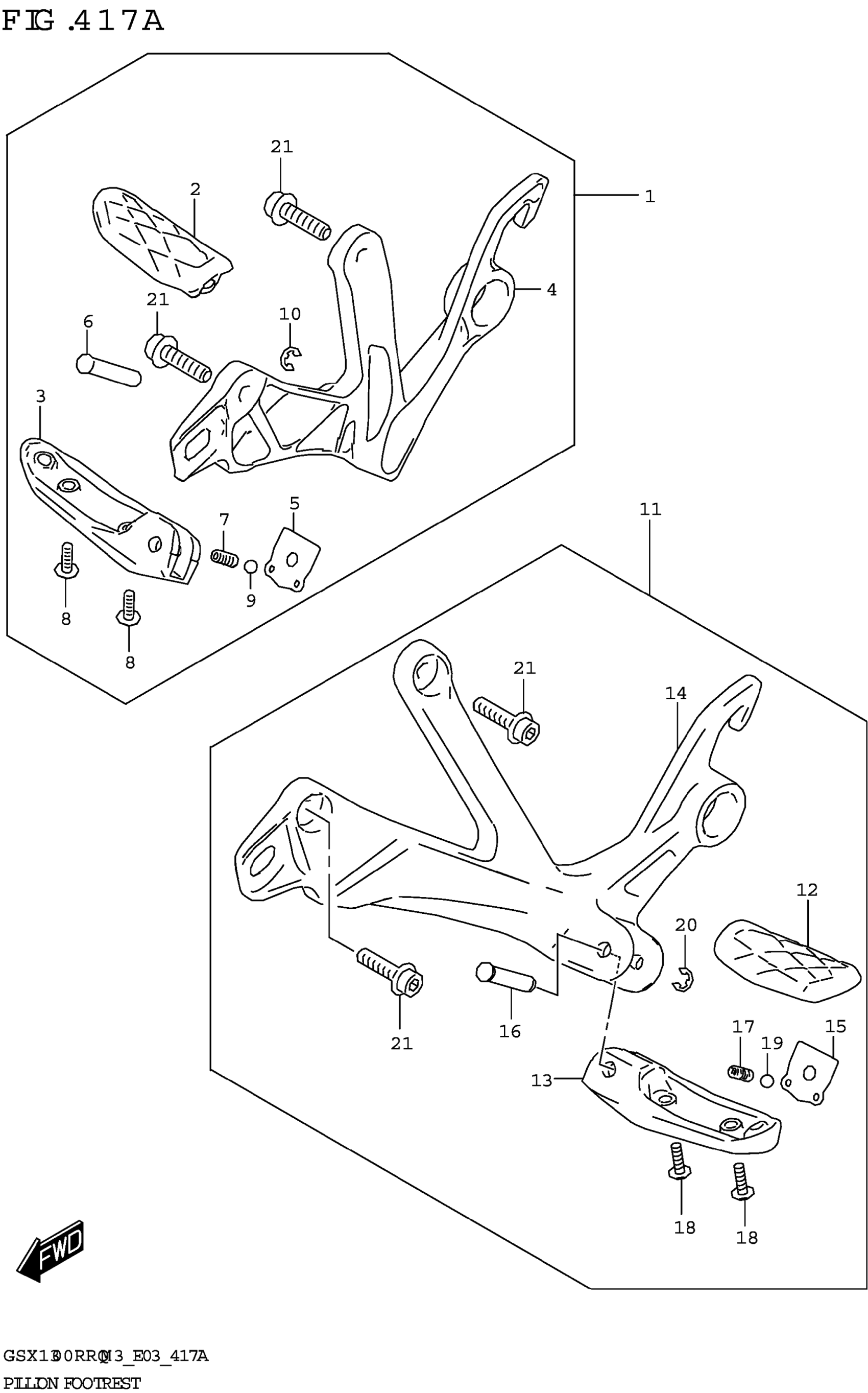

Suzuki GSX1300RRQM3 (2023) PILLION FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY,PILLION RH

43600-10L00

$163.70

2

RUBBER, FOOTREST

43550-10L00

$20.66

3

BAR, PILLION FOOTREST RH

43611-10L00

$63.85

4

.BRACKET,PILLION FOOTREST RH

43811-10L00

$136.82

5

PLATE, PILLION FOOTREST

43816-10L00

$6.20

6

PIN

09208-08019

$2.79

7

SPRING

09440-06039

$3.27

8

.SCREW

02142-0516A

$1.49

9

STEEL BALL This part replaces 06111-08004.

06111-08003

$1.49

10

E-RING

08332-1106A

$1.49

11

FOOTREST ASSY,PILLION LH

43700-10L00

$163.70

12

RUBBER, FOOTREST

43550-10L00

$20.66

13

BAR, PILLION FOOTREST LH

43621-10L00

$63.85

14

.BRACKET,PILLION FOOTREST LH

43821-10L00

$136.82

15

PLATE, PILLION FOOTREST

43816-10L00

$6.20

16

PIN

09208-08019

$2.79

17

SPRING

09440-06039

$3.27

18

.SCREW

02142-0516A

$1.49

19

STEEL BALL This part replaces 06111-08004.

06111-08003

$1.49

20

E-RING

08332-1106A

$1.49

21

BOLT (8X30)

09106-08121

$3.16
