Description

Price

1

COOLER,OIL

16600-10L00

$382.53

2

BOLT (6X25)

09118-06097

$2.50

3

SPACER (6.5X10X12)

09180-06290

$2.35

4

CUSHION

09320-10051

$2.99

5

BRACKET,OIL COOLER

16640-10L00

$13.95

6

BOLT

01560-0616A

Unavailable

7

HOSE,OIL COOLER OUTLET

16460-10L00

$90.05

8

HOSE,OIL COOLER INLET

16470-10L00

$96.23

9

O-RING (D:2.4,ID:16)

09280-15015

$4.90

10

BOLT (6X16)

09106-06073

$2.39

11

GUARD,OIL COOLER

16650-15H01

$64.25

12

.PROTECTOR, CTR

17765-09F01

$2.92

13

.HOSE (3X5X600)

09352-30504-600

$4.91

14

NUT,RADIATOR FAN

17802-14F00

$3.38

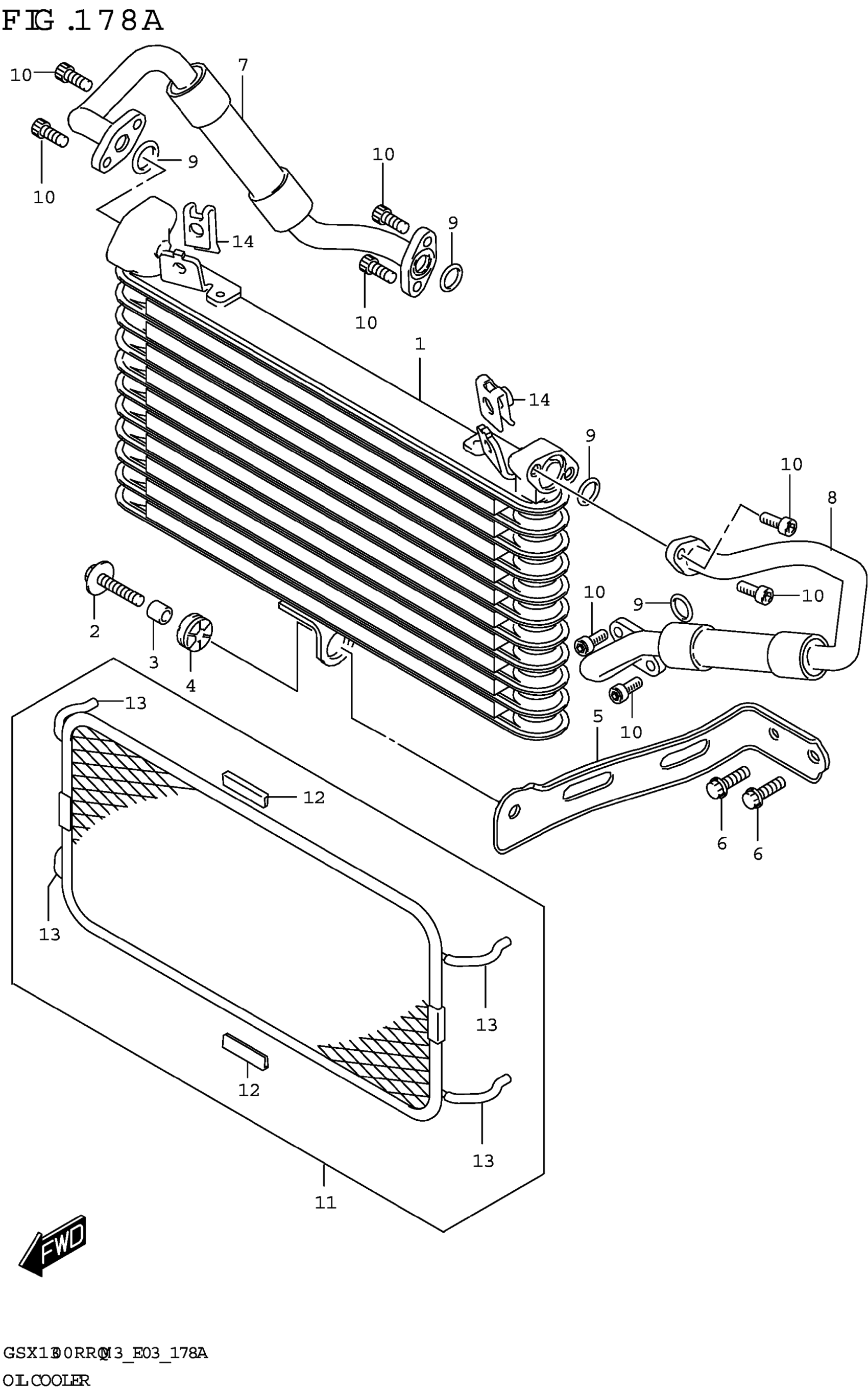

Suzuki GSX1300RRQM3 (2023) OIL COOLER Diagram
