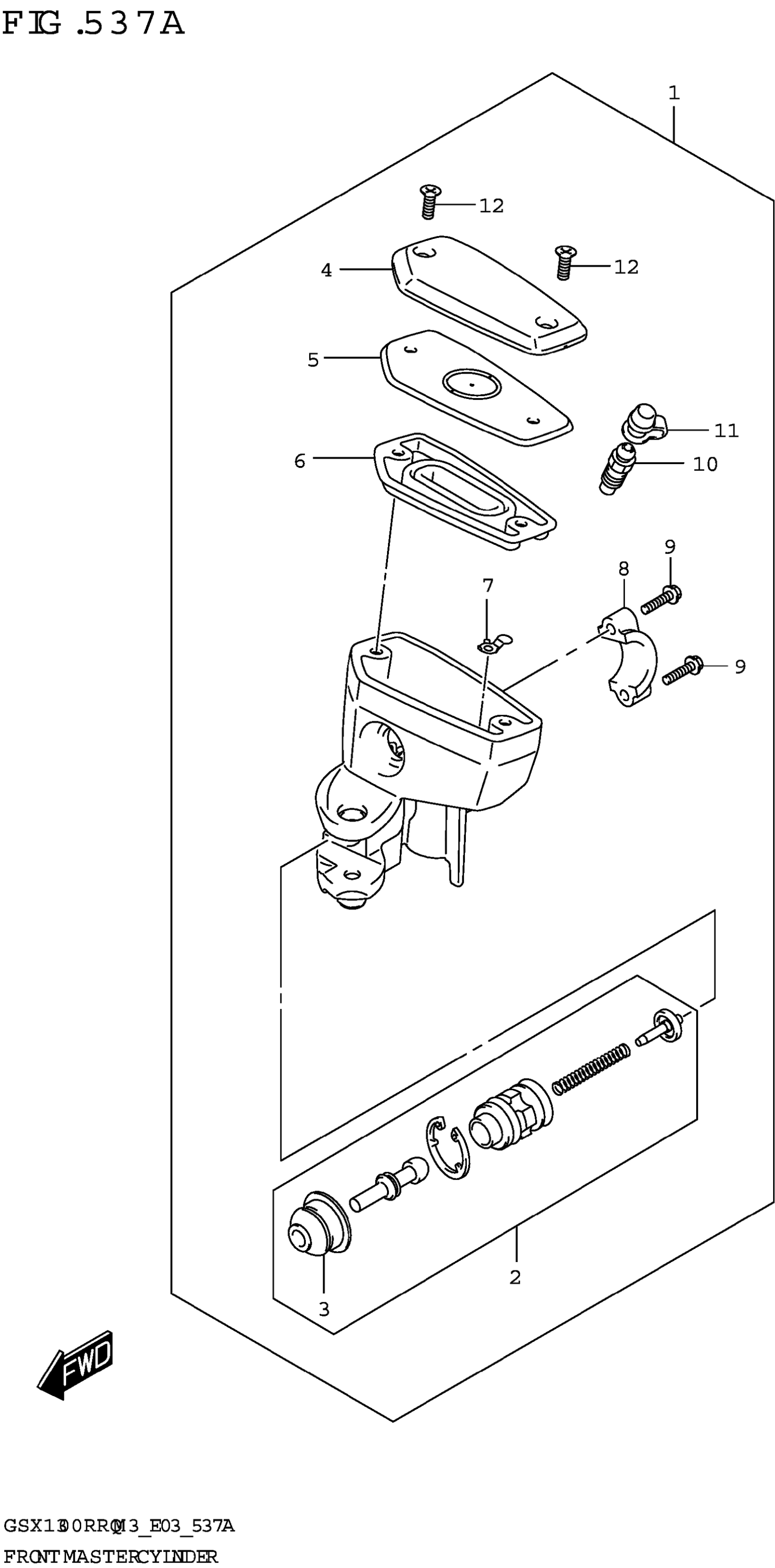

Suzuki GSX1300RRQM3 (2023) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,FRONT MASTER This part replaces 59600-10L00.

59600-10L20

$322.40

2

.PISTON CUP SET This part replaces 59600-10830.

59600-10831

$52.52

3

..BOOT

59666-29G00

$13.93

4

.CAP, RESERVOIR

59669-23H20

$36.90

5

.PLATE

57437-23H00

$10.82

6

.DIAPHRAGM,R This part replaces 59667-23H00.

59667-23H10

Unavailable

7

.PROTECTOR

59664-32F00

$13.20

8

.HOLDER

59671-36500

$12.01

9

.SCREW

59675-10L00

$4.18

10

.BLEEDER

59121-01A00

$8.35

11

.CAP,BLEEDER

59122-46H00

$4.36

12

.SCREW

69689-49300

$1.81
