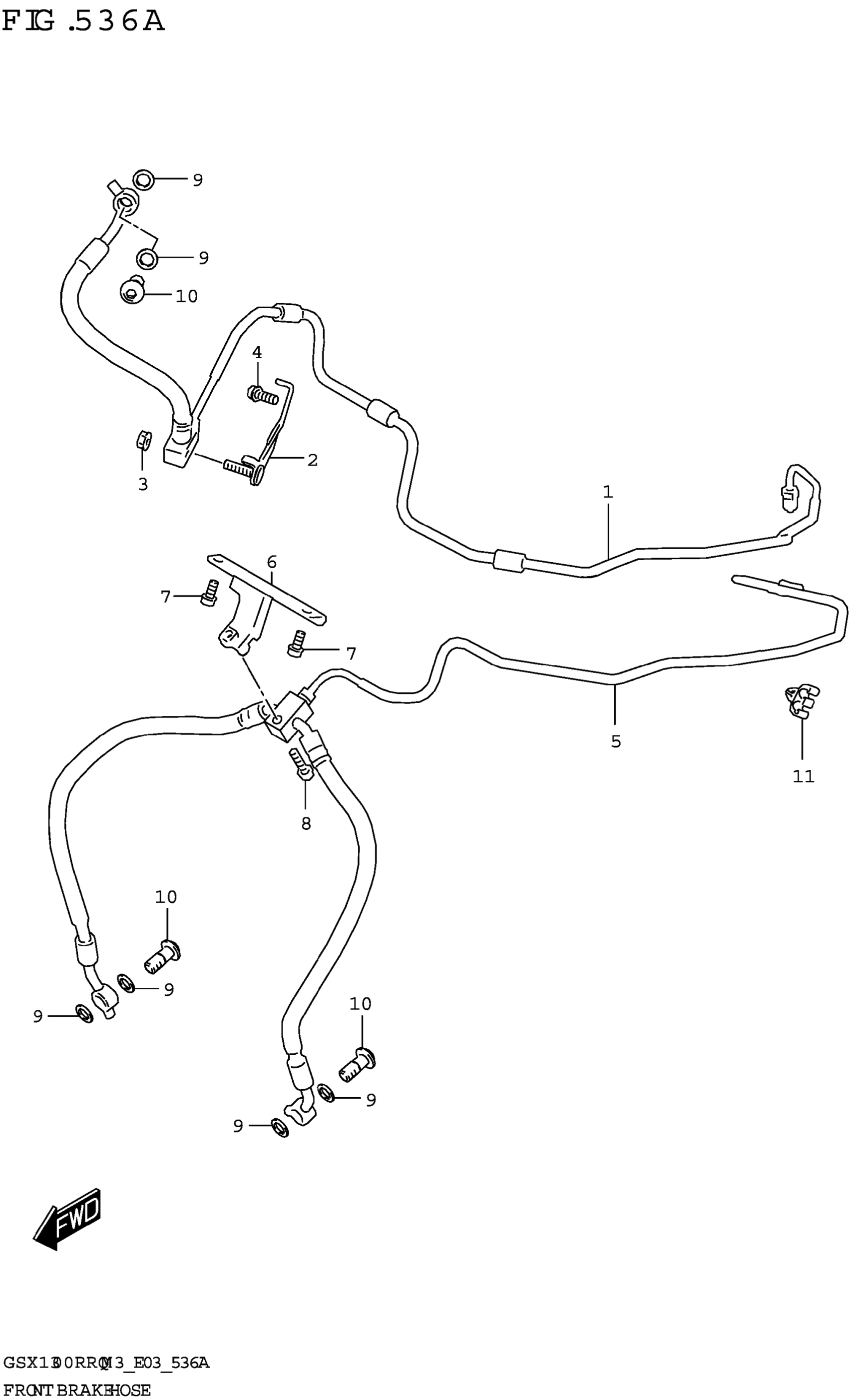

Suzuki GSX1300RRQM3 (2023) FRONT BRAKE HOSE Diagram

#

Description
Price

1

HOSE ASSY,FR BK MASTER TO UNI

59200-10L00

$103.03

2

BRACKET,HOSE CLAMP NO.1

59260-10L00

$11.57

3

NUT

08316-1006B

$2.50

4

BOLT

01547-0612B

$1.49

5

HOSE ASSY,UNIT TO FR BK CLPR

59400-10L00

$176.00

6

BRACKET,HOSE CLAMP NO.2

59270-10L00

$18.85

7

BOLT

01547-0625A

$2.01

8

BOLT

01547-0625A

$2.01

9

WASHER (10X15X1.5)

09161-10009

$1.84

10

UNION (10X1.25X22)

09360-10053

$8.92

11

CLAMP

09403-07344

$2.50
