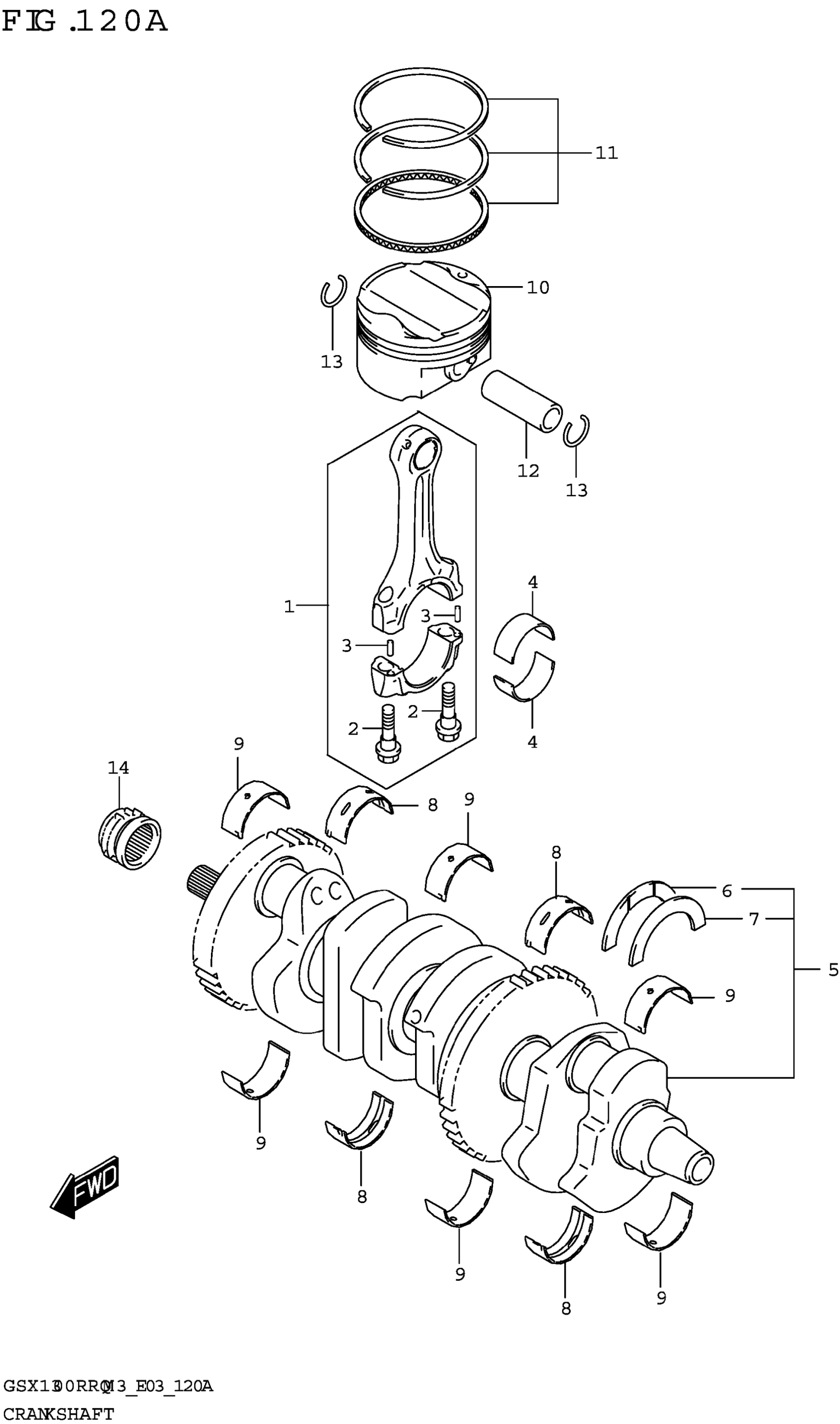

Suzuki GSX1300RRQM3 (2023) CRANKSHAFT Diagram

#

Description
Price

1

CONNROD ASSY

12160-10L00

$132.73

2

.BOLT,CONNROD

12163-10L00

$5.83

3

PIN (4X13.8)

04221-04089

$1.49

4-1

BEARING,CRANK PIN (GREEN)

12164-10L00-0A0

$16.23

4-2

BEARING,CRANK PIN (BLACK)

12164-10L00-0B0

$13.80

4-3

BEARING,CRANK PIN (BROWN)

12164-10L00-0C0

$13.80

4-4

BEARING,CRANK PIN (YELLOW)

12164-10L00-0D0

$16.23

5

CRANKSHAFT SET

12000-10840

$1,483.13

6

.BEARING,CRANK THRUST (GREEN) | )

12228-24F00-0D0

$10.81

7-1

.BEARING,CRANK THRUST,L (RED)

12228-24F00-0A0

$12.80

7-2

.BEARING,CRANK THRUST,L (BLAC | )

12228-24F00-0B0

$12.72

7-3

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$12.72

7-4

.BEARING,CRANK THRUST (GREEN) | )

12228-24F00-0D0

$10.81

7-5

.BEARING,CRANK THRUST,L (YELL | W)

12228-24F00-0E0

$13.28

7-6

.BEARING,CRANK THRUST,L (WHIT | )

12228-24F00-0F0

$13.28

8-1

BEARING,CRANKSHAFT (GREEN)

12229-15H10-0A0

$13.71

8-2

BEARING,CRANKSHAFT (BLACK)

12229-15H10-0B0

$14.30

8-3

BEARING,CRANKSHAFT (BROWN)

12229-15H10-0C0

$13.89

8-4

BEARING,CRANKSHAFT (YELLOW)

12229-15H10-0D0

$13.89

8-5

BEARING,CRANKSHAFT (BLUE)

12229-15H10-0E0

$14.37

9-1

BEARING,CRANKSHAFT (GREEN)

12229-10L00-0A0

$15.08

9-2

BEARING,CRANKSHAFT (BLACK)

12229-10L00-0B0

$15.08

9-3

BEARING,CRANKSHAFT (BROWN)

12229-10L00-0C0

$12.83

9-4

BEARING,CRANKSHAFT (YELLOW)

12229-10L00-0D0

$15.08

9-5

BEARING,CRANKSHAFT (BLUE)

12229-10L00-0E0

$15.08

10

PISTON

12111-10L00-0F0

$167.85

11

RING SET,PISTON

12140-10L00

$87.07

12

PIN,PISTON

12151-10L00

$11.43

13

CIRCLIP (OD:20.5)

09381-18002

$1.67

14

SPROCKET,CAM CHAIN DRIVE

12731-24F10

$63.58
