Description

Price

1

CYLINDER ASSY,CLUTCH MASTER

59800-10L00

$340.02

2

.PISTON CUP SET

59800-10800

$38.15

3

..BOOT

59866-23H00

$7.97

4

..ROD,PUSH

59871-23H00

$9.52

5

.BUSH

59892-08A00

$5.05

6

.CAP

59869-23H10

$32.85

7

.PLATE

57438-23H00

$6.48

8

.DIAPHRAGM

59867-23H00

$12.78

9

.PROTECTOR

59664-32F00

$11.68

10

.HOLDER

59671-36500

$12.21

11

.SCREW

59675-10L00

$3.70

12

.SCREW

69689-49300

$1.91

13

HOSE ASSY,CLUTCH

59900-10L00

$114.55

14

CLAMP,CLUTCH HOSE NO.1

59915-24F00

$11.37

15

BOLT

01547-0616B

$2.45

16

CLAMP,CLUTCH HOSE NO.2

59921-24F00

$12.40

17

BOLT

01547-0616A

$2.03

18

UNION (10X1.25X22)

09360-10062

$6.43

19

UNION (10X1.25X22)

09360-10053

$8.92

20

WASHER (10X15X1.5)

09161-10009

$1.84

21

CLAMP

09403-11321

$3.93

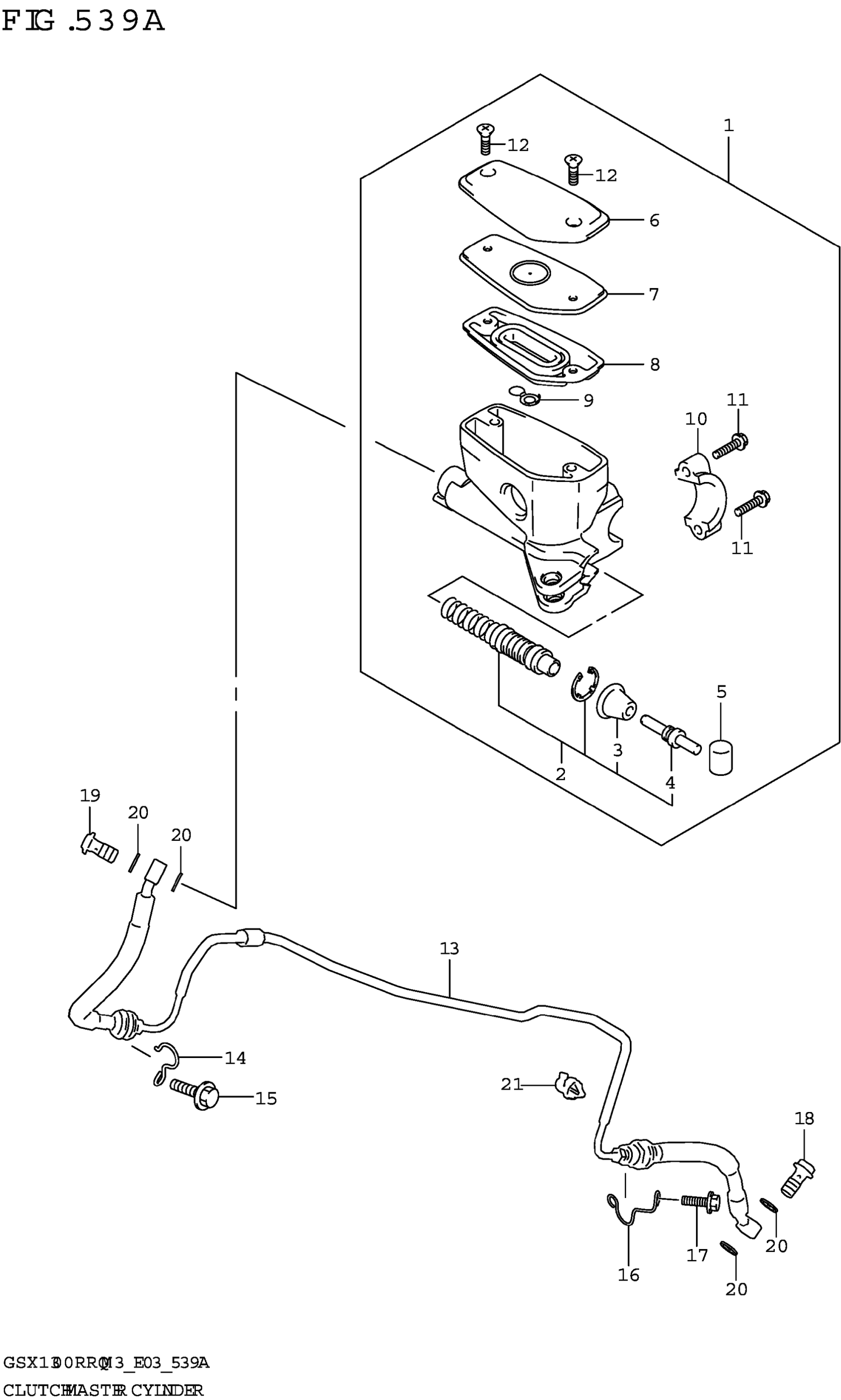

Suzuki GSX1300RRQM3 (2023) CLUTCH MASTER CYLINDER Diagram

CYLINDER ASSY,CLUTCH MASTER

.PISTON CUP SET

..BOOT

..ROD,PUSH

.BUSH

.CAP

.PLATE

.DIAPHRAGM

.PROTECTOR

.HOLDER

.SCREW

.SCREW

HOSE ASSY,CLUTCH

CLAMP,CLUTCH HOSE NO.1

BOLT

CLAMP,CLUTCH HOSE NO.2

BOLT

UNION (10X1.25X22)

UNION (10X1.25X22)

WASHER (10X15X1.5)

CLAMP
