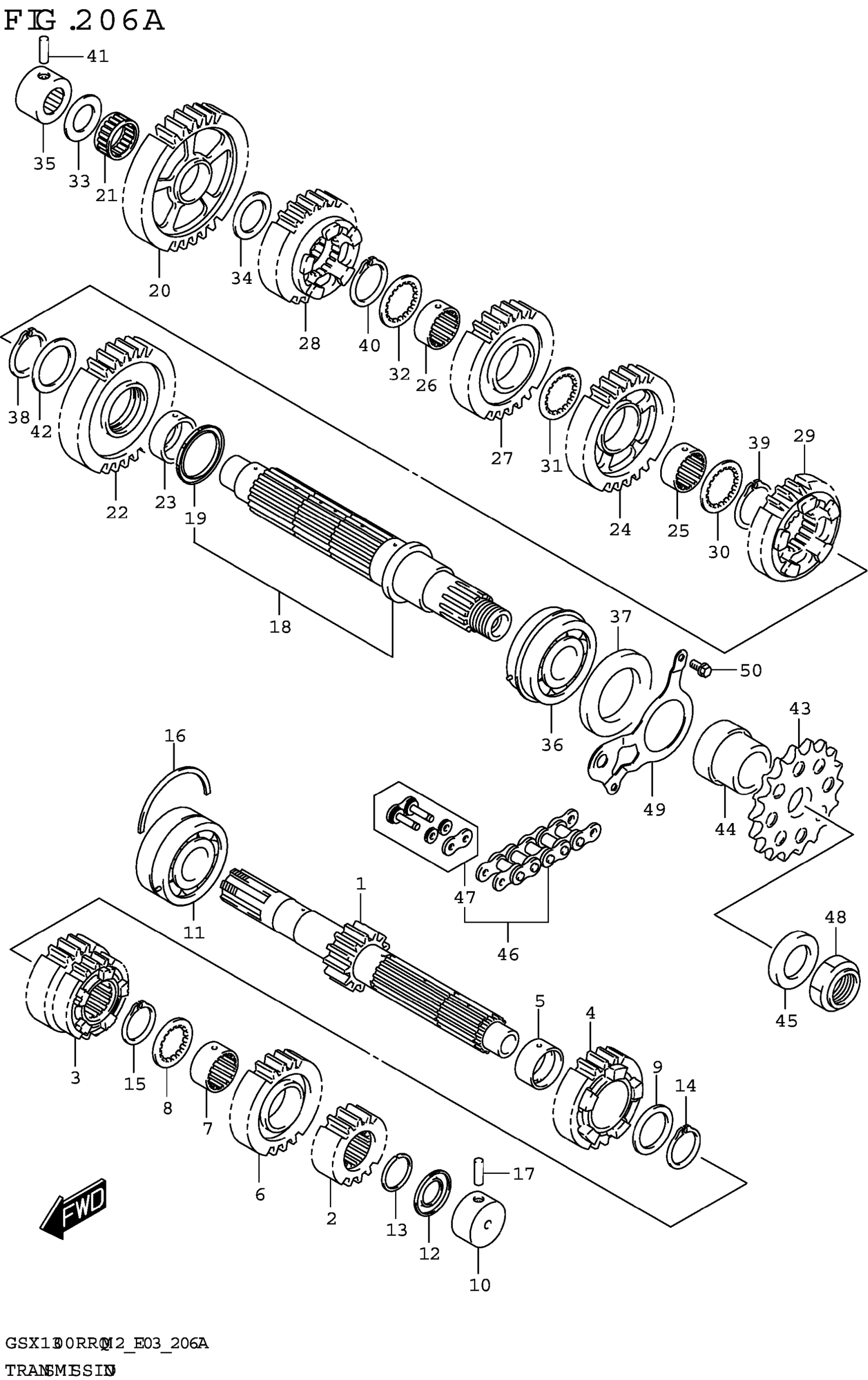

Suzuki GSX1300RRQM2 (2022) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,CNTR

24120-10L00

$226.22

2

GEAR,2ND DRIVE (NT:16)

24221-15H00

$130.87

3

GEAR,3RD & 4TH DRIVE (NT:19/2 | )

24231-15H00

$197.02

4

GEAR,5TH DRIVE (NT:22)

24251-15H01

$188.73

5

BUSH,5TH DRIVE GEAR

24252-24F20

$55.28

6

GEAR,6TH DRIVE

24261-10L00

$84.03

7

BUSH,6TH DRIVE GEAR

24262-24F20

$36.82

8

WASHER,6TH DRIVE GEAR

24263-10L00

$6.20

9

SHIM (27X36X2.5)

09181-27014

$6.32

10

BEARING

09263-20117

$46.28

11

BEARING (25X62X25.4)

09267-25012

$156.13

12

SEAL,OIL (20X31.2X2.7)

09285-20006

$6.51

13

CIRCLIP

09380-27004

$3.70

14

CIRCLIP

09380-27006

$2.73

15

CIRCLIP

09380-27006

$2.73

16

C-RING

09390-62012

$7.31

17

PIN

04221-07209

$2.30

18

SHAFT,DRIVE

24130-10L00

$151.45

19

.RING,DRIVE SHAFT FRICTION

24136-48G01

$39.68

20

GEAR,1ST DRIVEN

24311-10L00

$95.33

21

BEARING (24X28X13)

09263-24030

$25.37

22

GEAR,2ND DRIVEN (NT:31)

24321-15H00

$192.75

23

BUSH,2ND DRIVEN GEAR

24322-48G00

$32.12

24

GEAR,3RD DRIVEN (NT:29)

24331-15H00

$192.75

25

BUSH,3RD DRIVEN GEAR

24332-24F20

$36.82

26

BUSH,3RD DRIVEN GEAR

24332-24F20

$36.82

27

GEAR,4TH DRIVEN (NT:27)

24341-15H00

$192.75

28

GEAR,5TH DRIVEN

24351-10L00

$128.60

29

GEAR,6TH DRIVEN (NT:24)

24361-15H00

$197.58

30

WASHER,LOCK (30X38X2)

09167-30008

$6.12

31

WASHER,LOCK (30X38X2)

09167-30008

$6.12

32

WASHER,LOCK (30X38X2)

09167-30008

$6.12

33

SHIM (20X34X1)

09181-20251

$2.79

34

SHIM (24X34X1)

09181-24005

$3.55

35

BEARING

09263-20118

$46.28

36

BEARING (30X62X23.8)

09267-30011

$167.22

37

SEAL,OIL (42X62X7)

09283-42018

$36.39

38

CIRCLIP

09380-30009

$3.49

39

CIRCLIP

09380-30009

$3.49

40

CIRCLIP

09380-30009

$3.49

41

PIN

04221-07209

$2.30

42

WASHER

08211-30405

$4.17

43

SPROCKET,ENGINE

27511-15H00

$84.53

44

SPACER,ENGINE SPROCKET NO.1

27531-15H00

$37.33

45

SPACER,ENGINE SPROCKET NO.2 ( | 7.2X42X6.5)

27532-15H00

$15.95

46

CHAIN ASSY,DRIVE (RK GB50GSVZ

27600-24F70-114

$368.20

47

.JOINT SET CHAIN

27620-24F70

$13.48

48

NUT

09159-22008

$30.18

49

RETAINER,CL PUSH ROD OIL SEAL

24751-10L00

$10.53

50

BOLT (6X12)

09103-06236

$2.69
