2022 Suzuki GSX1300RRQM2 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

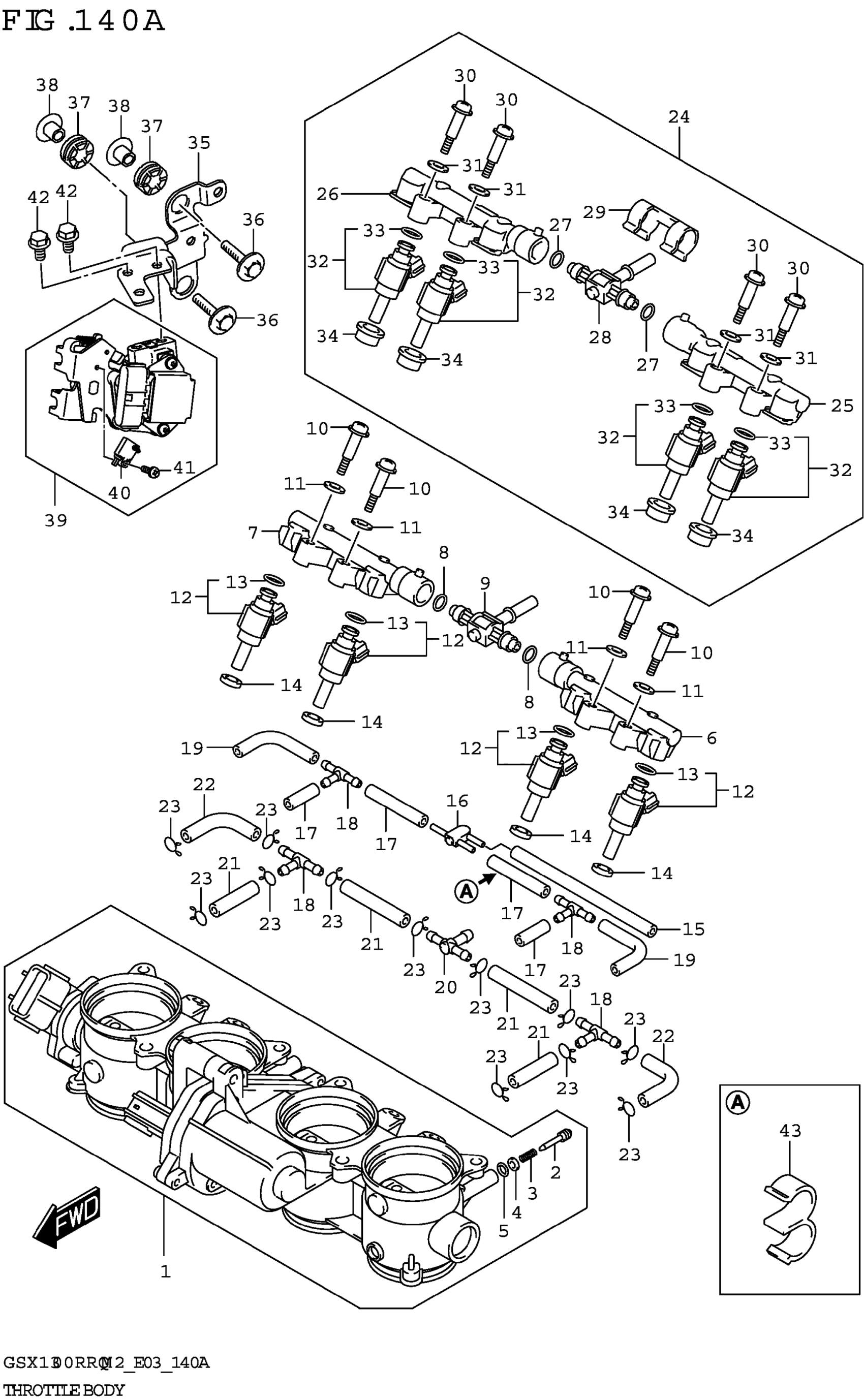

2022 Suzuki GSX1300RRQM2 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY, THROTTLE

13405-10L00

1

$1,045.78

In stock

2

SCREW

13269-33E00

4
Out of stock

3

SPRING,THROTTLE SCREW

13268-48700

4

$4.33

In stock

4

WASHER

13606-47A00

4
Out of stock

5

O-RING

13295-29901

4
Out of stock

6

DELIVERY PIPE

13471-10L00

1

$32.13

In stock

7

DELIVERY PIPE

13472-10L00

1

$32.13

In stock

8

O-RING

13374-32G00

2

$8.15

In stock

9

NIPPLE ASSY

13473-10L00

1

$39.82

In stock

10

SCREW

13601-29G00

4
Out of stock

11

PACKING

13602-29G01

4
Out of stock

12

INJECTOR ASSY

15710-14J00

4
Out of stock

13

.O-RING

15717-58B00

16
Out of stock

14

SEAL

15722-14J00

4
Out of stock

15

HOSE

13683-01H01

1
Out of stock

16

JOINT

13471-18H00

1
Out of stock

17

HOSE (L:425)

13683-10F61

4
Out of stock

18

3WAY,VACUUM HOSE

13685-02FA0

4
Out of stock

19

HOSE (3.2X7.4X70)

13681-39F00-070

2

$3.37

In stock

20

NIPPLE

13685-04F10

1

$12.50

In stock

21

HOSE

13683-04K50

4

$14.23

In stock

22

HOSE (3.5X7.5X80)

13683-10L00

2

$3.25

In stock

23

12

$2.21

In stock

24

1

$354.93

In stock

25

DELIVERY PIPE

13471-10L00

1

$32.13

In stock

26

DELIVERY PIPE

13472-10L00

1

$32.13

In stock

27

O-RING

13374-32G00

2

$8.15

In stock

28

NIPPLE ASSY

13473-10L00

1

$39.82

In stock

29

.CLIP

13474-17K00

1

$19.30

In stock

30

SCREW

13601-29G00

4
Out of stock

31

PACKING

13602-29G01

4
Out of stock

32

.INJECTOR ASSY

15710-17K10

4

$273.72

In stock

33

.O-RING

15717-58B00

4
Out of stock

34

SEAL

15722-14J00

4
Out of stock

35

BRACKET,ACCEL SENSOR

13571-10L00

1

$13.33

In stock

36

BOLT (6X30)

09116-06185

2

$2.91

In stock

37

CUSHION

09320-10055

2
Out of stock

38

SPACER (6.5X10X11.6)

09180-06319

2

$4.92

In stock

39

BODY ASSY,ACCELERATOR

13500-10L00

1

$459.50

In stock

40

1

$39.88

In stock

41

.SCREW

13601-10L00

1

$2.55

In stock

42

BOLT

01550-0612A

2
Out of stock

43

CLIP

09408-00200

1
Out of stock
