2022 Suzuki GSX1300RRQM2 Fuel Pump Diagram

← All diagrams

Find the part on the Fuel Pump diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

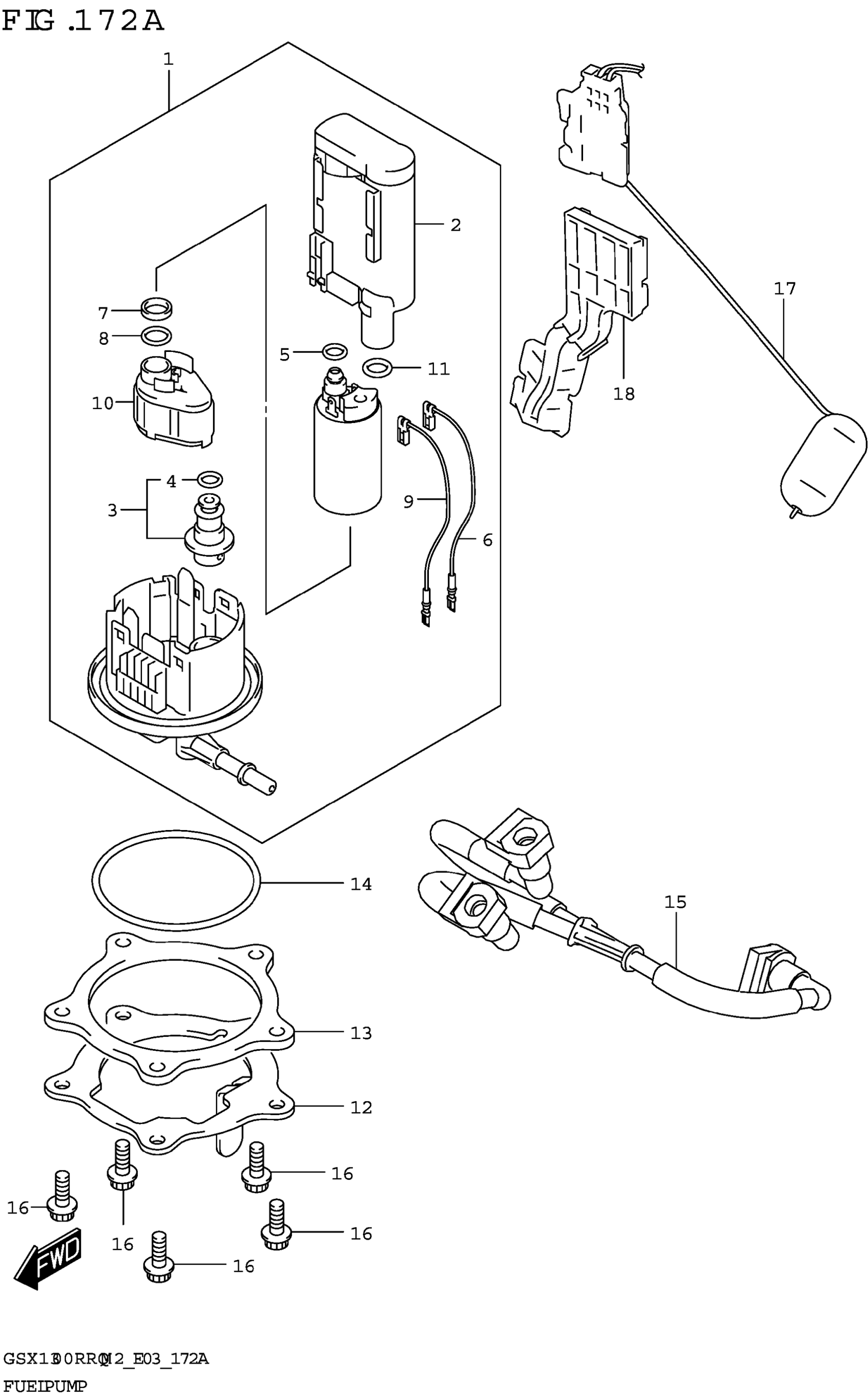

2022 Suzuki GSX1300RRQM2 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY,FUEL

15100-17K00

1

$669.65

In stock

2

.FILTER

15310-17K00

1

$77.89

In stock

3

.REGULATOR

15610-17K00

1
Out of stock

4

..O-RING

15113-48H00

1

$19.15

In stock

5

.O-RING

15113-05H00

1

$20.48

In stock

6

.WIRE,EARTH

15114-17K00

1

$45.18

In stock

7

.COLLAR

15116-17K00

1

$20.62

In stock

8

.O-RING

15113-17K00

1

$35.95

In stock

9

.WIRE,LEAD

15115-17K00

1

$45.18

In stock

10

.STRAINER

15420-17K00

1

$101.46

In stock

11

.O-RING

15113-35F00

1

$8.88

In stock

12

PLATE,FUEL PUMP OUTER

15120-10L00

1

$19.40

In stock

13

PLATE,FUEL PUMP INNER

15122-17K00

1

$49.37

In stock

14

O-RING,FUEL PUMP

15201-07L00

1

$20.93

In stock

15

HOSE,FUEL

15810-10L00

1

$100.42

In stock

16

BOLT

07120-0616A

5
Out of stock

17

1

$63.03

In stock

18

1

$6.60

In stock
